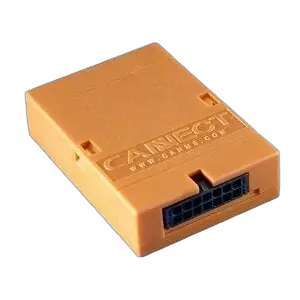

The CANM8 CANNECT NAV is a multi-output CAN Bus interface designed to provide a universal solution for installing after-market electronic products, such as navigation systems, to vehicles which feature CAN Bus wiring. The interface features “Key-In” detection with compatible vehicles enabling the ignition-on output to remain active when the ignition is turned off but the key remains in the ignition.
Outputs
Speed Signal | > | 12v square pulsed output at approximately 1 pulse per 1 MPH. |
Ignition ON | > | 12v (1A max) when the ignition is switched on |
Reverse | > | 12v (1A max) when reverse gear is selected. |
Illumination | > | 12v (1A max) when the side lights are active. |
Park Brake | > | 0v (1A max) when the park brake is engaged. |
N.B. Illumination output is dependent on available vehicle data and may use dipped beam (if available).
N.B. Park brake output is dependent on available vehicle data.
Applications
The CANM8 CANNECT NAV is an ideal solution for use when installing navigation systems, car audio & entertainment systems, mobile phone hands-free kits, taxi meters and many other systems which require sensing of vehicle signals. Installation time is drastically reduced as instead of hard wiring into the vehicle to find all the different required outputs, this interface provides 5 of the most common outputs from a mere 4 connections to the vehicle.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
Flashing Red: Searching for CAN information. | |
Solid Red: CAN Data received but vehicle not yet identified. | |
Solid Green: CAN Data received and vehicle type recognised. | |
Flashing Green: Vehicle speed detected. |
Wiring Harness Details
Connect via a 5A fuse to a PERMANENT 12v supply. | ||
Connect to a good chassis GROUND point. | ||
CAN HI Connection : Vehicle CAN HI wire. | ||
CAN LO Connection : Vehicle CAN LO wire. | ||
Speed Signal Output : 12v pulsing (1 Hz = 1 MPH approx). | ||
Ignition On Output : 12v (1A max) when the ignition is switched on. | ||
Illumination Output : 12v (1A max) when side lights are active. | ||
Reverse Output : 12v (1A max) when reverse gear is selected. | ||
Park Brake Output : 0v (1A max) when the park brake is engaged. |
Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
---|---|---|
ALFA ROMEO | 147 | 2000 - 2010 (937) |
ALFA ROMEO | 156 | 2001 - 2007 (932) |
ALFA ROMEO | 159 | 2005 - 2014 (939) |
ALFA ROMEO | BRERA | 2006 - 2011 (939) |
ALFA ROMEO | GIULIETTA | 2010 - 2014 (940) |
ALFA ROMEO | GIULIETTA | 2014 - 2015 (940) |
ALFA ROMEO | GT | 2004 - 2008 (937) |
ALFA ROMEO | MITO | 2008 - 2014 (955) |
AUDI | A1 | 2010 - 2018 (8X) |
AUDI | A3 (Incl S3) | 2004 - 2013 (8P) |
AUDI | A3 (Incl S3) | 2012 - 2019 (8V) |
AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
AUDI | A4 (Incl S4) | 2009 - 2015 (B8) |
AUDI | A5 (Incl S5) | 2007 - 2011 (8T3 - 8F7 - 8TA) |
AUDI | A5 (Incl S5) | 2016 - 2019 (F5) |
AUDI | A6 (Incl S6) | 2005 - 2011 (4F) |
AUDI | A6 (Incl S6) | 2011 - 2019 (4G) |
AUDI | A7 | 2011 - 2018 (4G) |
AUDI | A8 (Incl S8) | 2004 - 2009 (D3-4E) |
AUDI | A8 (Incl S8) | 2011 - 2017 (4H) |
AUDI | Q3 | 2011 - 2018 (8U) |
AUDI | Q5 | 2009 - 2016 (8R) |
AUDI | Q5 | 2017 - 2019 (FY) |
AUDI | Q7 | 2006 - 2015 (4L) |
AUDI | Q7 | 2015 - 2019 (4M) |
AUDI | R8 | 2007 - 2015 (42) |
AUDI | TT | 1999 - 2005 (8N) |
AUDI | TT | 2006 - 2014 (8J) |
AUDI | TT | 2014 - 2019 (FV-8S) |
BMW | 1 SERIES (Incl M1) | 2004 - 2013 (E81-E82-E87-E88) |
BMW | 2 SERIES | 2015 - 2019 (F25) |
BMW | 3 SERIES (Incl M3) | 2005 - 2014 (E90) |
BMW | 4 SERIES | 2013 - 2019 (F32-F33) |
BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
BMW | 6 SERIES | 2004 - 2011 (E63) |
BMW | 6 SERIES | 2011 - 2019 (F12-F13) |
BMW | 7 SERIES | 2001 - 2008 (E65-E66-E67-E68) |
BMW | 7 SERIES | 2008 - 2013 (F01-F02) |
BMW | I3 | 2014 - 2019 (IO1) |
BMW | X1 | 2009 - 2015 (E84) |
BMW | X2 | 2016 - 2019 (F39) |
BMW | X3 | 2003 - 2010 (E83) |
BMW | X3 | 2011 - 2019 (F25) |
BMW | X4 | 2014 - 2018 (F26) |
BMW | X4 | 2018 - 2019 (G02) |
BMW | X5 | 2000 - 2005 (E53) |
BMW | X5 | 2006 - 2011 (E70) |
BMW | X5 | 2013 - 2019 (F15) |
BMW | X6 | 2008 - 2013 (E71) |
BMW | Z4 | 2003 - 2008 (E85-E86) |
BMW | Z4 | 2009 - 2016 (E89) |
CADILLAC | ESCALADE | 2007 - 2014 (THIRD GEN) |
CHEVROLET | CAMARO | 2010 - 2015 (5TH GEN) |
CHRYSLER | 300C | 2005 - 2008 (FIRST GEN) |
CHRYSLER | 300C | 2009 - 2011 (SECOND GEN) |
CHRYSLER | 300C | 2011 - 2018 (THIRD GEN) |
CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2008 - 2014 (5TH GEN) |
CITROEN | BERLINGO | 2003 - 2007 (FIRST GEN) |
CITROEN | BERLINGO | 2008 - 2015 (SECOND GEN) |
CITROEN | C2 | 2006 - 2008 (FIRST GEN) |
CITROEN | C3 | 2002 - 2009 (FIRST GEN) |
CITROEN | C3 | 2010 - 2016 (SECOND GEN) |
CITROEN | C4 | 2004 - 2010 (FIRST GEN) |
CITROEN | C4 | 2011 - 2018 (SECOND GEN) |
CITROEN | C5 | 2004 - 2007 (DC-DE) |
CITROEN | C5 | 2008 - 2013 (RD-TD) |
CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
DODGE | CALIBER | 2009 - 2012 (SECOND GEN) |
DODGE | CHALLENGER R/T | 2008 - 2014 (THIRD GEN) |
DODGE | JOURNEY | 2008 - 2011 (FIRST GEN) |
DODGE | JOURNEY | 2012 - 2015 (SECOND GEN) |
DODGE | RAM | 2009 - 2012 (4TH GEN) |
DODGE | RAM | 2013 - 2020 (4TH GEN) |
FIAT | 500 | 2008 - 2015 (SERIES 1 - SERIES 3) |
FIAT | 500 | 2015 - 2018 (SERIES 5) |
FIAT | DUCATO | 2006 - 2012 (THIRD GEN) |
FIAT | DUCATO | 2012 - 2014 (THIRD GEN) |
FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
FIAT | FREEMONT | 2012 - 2015 (FIRST GEN) |
FIAT | PUNTO | 2005 - 2013 (THIRD GEN) |
FIAT | SCUDO | 2007 - 2011 (SECOND GEN) |
FIAT | SCUDO | 2012 - 2013 (THIRD GEN) |
FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
FORD | ESCAPE | 2016 - 2018 (ZG) |
FORD | F SERIES | 2005 - 2008 (11th Gen) |
FORD | F SERIES | 2009 - 2014 (12th Gen) |
FORD | F SERIES | 2015 - 2019 (13th Gen) |
FORD | FIESTA | 2006 - 2008 (WQ) |
FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
FORD | FOCUS (Incl XR5) | 2008 - 2011 (LV) |
FORD | FOCUS (Incl XR5) | 2012 - 2015 (LW) |
FORD | FOCUS (Incl XR5) | 2016 - 2019 (LW) |
FORD | KA | 1997 - 2011 (FIRST GEN) |
FORD | KUGA | 2011 - 2013 (1ST GEN) |
FORD | KUGA | 2013 - 2015 (2ND GEN) |
FORD | MONDEO | 2007 - 2014 (MB - MC) |
FORD | MONDEO | 2015 - 2019 (MD) |
FORD | MUSTANG | 2005 - 2011 (5TH GEN) |
FORD | MUSTANG | 2010 - 2014 (5TH GEN) |
FORD | MUSTANG | 2015 - 2017 (6TH GEN) |
FORD | RANGER | 2011 - 2015 (PX) |
FORD | RANGER | 2015 - 2019 (PX2-PX3) |
FORD | SUPER DUTY (F SERIES) | 2008 - 2010 (2ND GEN) |
FORD | SUPER DUTY (F SERIES) | 2011 - 2016 (3RD GEN) |
FORD | SUPER DUTY (F SERIES) | 2017 - 2019 (4TH GEN) |
FORD | TRANSIT | 2001 - 2006 (VF-VG-VH-VJ) |
FORD | TRANSIT | 2007 - 2014 (VM) |
FORD | TRANSIT | 2015 - 2017 (VO) |
FORD | TRANSIT CUSTOM | 2013 - 2016 (VN-EURO 5) |
FORD | TRANSIT CUSTOM | 2016 - 2017 (VN-EURO 6) |
FORD | TRANSIT CUSTOM | 2018 - 2019 (VN) |
GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
HOLDEN | BARINA | 2012 - 2016 (TM) |
HOLDEN | BARINA | 2017 - 2018 (TM) |
HOLDEN | BARINA SPARK | 2010 - 2016 (MJ) |
HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
HOLDEN | COMMODORE | 2013 - 2015 (VF) |
HOLDEN | CRUZE | 2008 - 2016 (J300) |
HOLDEN | EPICA | 2006 - 2011 (EP) |
HOLDEN | MALIBU | 2013 - 2016 (EM) |
HOLDEN | SPARK | 2016 - 2017 (M400) |
HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
HONDA | ACCORD | 2013 - 2015 (9TH GEN) |
HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
HONDA | CIVIC HATCH | 2016 - 2018 (10TH GEN) |
HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
HONDA | CIVIC SEDAN | 2015 - 2016 (9TH GEN) |
HONDA | CIVIC SEDAN | 2016 - 2018 (10TH GEN) |
HONDA | CRV | 2007 - 2011 (RE) |
HONDA | CRV | 2012 - 2015 (RM) |
HONDA | CRV | 2015 - 2016 (RM) |
HONDA | CRV | 2017 - 2018 (RW) |
HONDA | CRZ | 2010 - 2014 (ZF) |
HONDA | INSIGHT | 2009 - 2013 (ZE) |
HONDA | JAZZ | 2008 - 2013 (GE) |
HONDA | JAZZ | 2014 - 2016 (GF) |
HONDA | JAZZ | 2017 - 2019 (GF) |
HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
HUMMER | H2 | 2008 - 2011 (H2) |
HYUNDAI | ACCENT | 2006 - 2008 (MC) |
HYUNDAI | i20 | 2010 - 2012 (PB) |
HYUNDAI | i20 | 2012 - 2015 (PB) |
HYUNDAI | i30 | 2007 - 2011 (FD) |
HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
HYUNDAI | i30 | 2017 - 2021 (PD) |
HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
HYUNDAI | ILOAD (Incl IMAX) | 2008 - 2016 (TQ) |
HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
HYUNDAI | ix35 | 2010 - 2013 (LM) |
HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
HYUNDAI | KONA | 2017 - 2018 (OS - OS2) |
HYUNDAI | SANTA FE | 2007 - 2009 (CM) |
HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
HYUNDAI | SONATA | 2002 - 2005 (EF) |
HYUNDAI | SONATA | 2006 - 2008 (NF) |
HYUNDAI | SONATA | 2009 - 2011 (YF) |
HYUNDAI | SONATA | 2014 - 2016 (LF) |
HYUNDAI | TUCSON | 2005 - 2010 (JM) |
HYUNDAI | TUCSON | 2015 - 2018 (TL) |
HYUNDAI | TUCSON | 2018 - 2019 (TL) |
HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
ISUZU | DMAX | 2009 - 2011 (RA - RC) |
ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
IVECO | DAILY | 2007 - 2014 (5TH GEN) |
IVECO | DAILY | 2015 - 2017 (6TH GEN) |
IVECO | DAILY | 2018 - 2019 (6TH GEN) |
JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
JAGUAR | XJ8 | 2003 - 2008 (No Chassis Code) |
JEEP | CHEROKEE | 2001 - 2007 (KJ) |
JEEP | CHEROKEE | 2007 - 2012 (KK) |
JEEP | CHEROKEE | 2014 - 2018 (KL) |
JEEP | COMMANDER | 2005 - 2008 (XK) |
JEEP | COMMANDER | 2008 - 2010 (XK) |
JEEP | COMPASS | 2007 - 2009 (MK) |
JEEP | COMPASS | 2009 - 2017 (MK) |
JEEP | COMPASS | 2017 - 2018 (M6) |
JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
JEEP | GRAND CHEROKEE | 2008 - 2011 (WH-WK) |
JEEP | GRAND CHEROKEE | 2012 - 2013 (WK2) |
JEEP | GRAND CHEROKEE | 2014 - 2020 (WK2) |
JEEP | PATRIOT | 2007 - 2009 (MK) |
JEEP | PATRIOT | 2010 - 2016 (MK) |
JEEP | RENEGADE | 2015 - 2016 (BU-520) |
JEEP | WRANGLER | 2007 - 2018 (JK) |
KIA | CARNIVAL | 2015 - 2017 (YP) |
KIA | CARNIVAL | 2018 - 2019 (YP) |
KIA | CARNIVAL (Incl Grand) | 2006 - 2015 (VQ) |
KIA | CERATO | 2004 - 2009 (LD) |
KIA | CERATO | 2010 - 2012 (TD) |
KIA | CERATO | 2013 - 2018 (YD) |
KIA | MAGENTIS | 2006 - 2010 (MG) |
KIA | OPTIMA | 2006 - 2010 (MG) |
KIA | OPTIMA | 2010 - 2013 (TF1) |
KIA | OPTIMA | 2013 - 2015 (TF2) |
KIA | OPTIMA | 2016 - 2017 (JF) |
KIA | PICANTO | 2016 - 2017 (TA) |
KIA | PICANTO | 2017 - 2018 (JA) |
KIA | PRO CEED | 2014 - 2015 (JD) |
KIA | RIO | 2006 - 2009 (JB) |
KIA | RIO | 2010 - 2014 (UB) |
KIA | RIO | 2014 - 2017 (UB) |
KIA | SORENTO | 2007 - 2008 (BL) |
KIA | SORENTO | 2009 - 2012 (XM) |
KIA | SORENTO | 2013 - 2015 (XM) |
KIA | SORENTO | 2015 - 2018 (UM) |
KIA | SORENTO EX | 2003 - 2009 (BL) |
KIA | SORENTO LX | 2007 - 2009 (BL) |
KIA | SOUL | 2009 - 2011 (AM) |
KIA | SOUL | 2011 - 2013 (AM) |
KIA | SOUL | 2014 - 2018 (PS) |
KIA | SPORTAGE | 2005 - 2009 (KM) |
KIA | SPORTAGE | 2010 - 2015 (SL) |
KIA | SPORTAGE | 2016 - 2018 (QL) |
KIA | SPORTAGE | 2018 - 2019 (QL) |
LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
LAND ROVER | DEFENDER | 2008 - 2015 (No Chassis Code) |
LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
LAND ROVER | DISCOVERY IV | 2010 - 2016 (L319) |
LAND ROVER | EVOQUE | 2011 - 2013 (L538) |
LAND ROVER | FREELANDER | 1997 - 2003 (L314) |
LAND ROVER | FREELANDER | 2004 - 2006 (L314) |
LAND ROVER | FREELANDER II | 2007 - 2011 (L359) |
LAND ROVER | FREELANDER II | 2012 - 2014 (L359) |
LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
LAND ROVER | RANGE ROVER SPORT | 2005 - 2010 (L320) |
LAND ROVER | RANGE ROVER SPORT | 2010 - 2013 (L320) |
LAND ROVER | RANGE ROVER SPORT | 2013 - 2015 (L494) |
LEXUS | CT | 2011 - 2013 (C10) |
LEXUS | IS | 2006 - 2015 (XE20) |
LEXUS | IS | 2016 - 2018 (XE30) |
LEXUS | RX | 2003 - 2008 (XU30) |
LEXUS | RX | 2010 - 2015 (AL10) |
LEXUS | RX | 2016 - 2018 (AL20) |
MAZDA | 2 | 2003 - 2007 (DY) |
MAZDA | 2 | 2007 - 2015 (DE) |
MAZDA | 2 | 2015 - 2016 (DJ) |
MAZDA | 3 | 2004 - 2009 (BK) |
MAZDA | 3 | 2009 - 2013 (BL) |
MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
MAZDA | 3 | 2016 - 2018 (BN) |
MAZDA | 6 | 2003 - 2005 (GG) |
MAZDA | 6 | 2005 - 2008 (GG) |
MAZDA | 6 | 2008 - 2010 (GH) |
MAZDA | 6 | 2010 - 2012 (GH) |
MAZDA | 6 | 2013 - 2015 (GJ) |
MAZDA | BT-50 | 2007 - 2011 (B Series) |
MAZDA | BT-50 | 2012 - 2015 (B32Q) |
MAZDA | BT-50 | 2015 - 2019 (UR) |
MAZDA | CX5 | 2012 - 2015 (KE) |
MAZDA | CX5 | 2015 - 2017 (KE) |
MAZDA | CX5 | 2017 - 2021 (KF) |
MAZDA | CX7 | 2006 - 2010 (ER) |
MAZDA | CX7 | 2010 - 2011 (ER) |
MAZDA | CX9 | 2006 - 2011 (TB) |
MAZDA | CX9 | 2012 - 2015 (TB) |
MAZDA | MPV | 2000 - 2006 (LW) |
MAZDA | MX5 | 2006 - 2008 (NC) |
MAZDA | MX5 | 2009 - 2013 (ND) |
MAZDA | RX8 | 2004 - 2008 (FE) |
MAZDA | RX8 | 2008 - 2012 (FE) |
MERCEDES | A CLASS | 2005 - 2007 (W169) |
MERCEDES | A CLASS | 2007 - 2011 (W169) |
MERCEDES | A CLASS | 2013 - 2016 (W176) |
MERCEDES | B CLASS | 2005 - 2007 (W245) |
MERCEDES | B CLASS | 2007 - 2011 (W245) |
MERCEDES | C CLASS | 2000 - 2004 (W203) |
MERCEDES | C CLASS | 2005 - 2008 (W203) |
MERCEDES | C CLASS | 2008 - 2011 (W204) |
MERCEDES | C CLASS | 2011 - 2014 (W204) |
MERCEDES | CLK | 2002 - 2004 (W208) |
MERCEDES | CLK | 2005 - 2011 (W209) |
MERCEDES | CLS | 2005 - 2010 (W219) |
MERCEDES | E CLASS | 2002 - 2007 (W211) |
MERCEDES | E CLASS | 2008 - 2011 (W212) |
MERCEDES | G CLASS | 2006 - 2012 (W463) |
MERCEDES | GL CLASS | 2006 - 2012 (X164) |
MERCEDES | M CLASS | 2005 - 2011 (W164) |
MERCEDES | R CLASS | 2006 - 2012 (W251) |
MERCEDES | S CLASS | 1998 - 2006 (W220) |
MERCEDES | SL CLASS | 2005 - 2013 (R230) |
MERCEDES | SLK CLASS | 2004 - 2011 (R171) |
MERCEDES | SPRINTER | 2007 - 2018 (W906) |
MERCEDES | VITO (Inc VIANO or VALENTE) | 2004 - 2007 (W639) |
MERCEDES | VITO (Inc VIANO or VALENTE) | 2007 - 2015 (W639) |
MERCEDES | VITO (Inc VIANO or VALENTE) | 2015 - 2019 (W447) |
MG | MG6 | 2013 - 2018 (1st Generation) |
MITSUBISHI | ASX | 2010 - 2013 (XA) |
MITSUBISHI | COLT | 2004 - 2007 (RG) |
MITSUBISHI | COLT | 2007 - 2011 (RZ) |
MITSUBISHI | GRANDIS | 2004 - 2011 (BA) |
MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
MITSUBISHI | PAJERO | 2006 - 2015 (NS-NT-NW) |
MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
MITSUBISHI | TRITON | 2004 - 2007 (MK) |
MITSUBISHI | TRITON | 2007 - 2013 (ML) |
MITSUBISHI | TRITON | 2013 - 2015 (MN) |
MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
MITSUBISHI | TRITON | 2019 - 2021 (MR) |
MITSUBISHI | TRITON | 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | ALTIMA | 2013 - 2016 (L33) |
NISSAN | CUBE | 1998 - 2016 (Z11 - Z12) |
NISSAN | ELGRAND | 2005 - 2010 (E51) |
NISSAN | JUKE | 2013 - 2015 (F15) |
NISSAN | JUKE | 2016 - 2018 (F15) |
NISSAN | MICRA | 2003 - 2009 (K12) |
NISSAN | MICRA | 2010 - 2014 (K13) |
NISSAN | MICRA | 2015 - 2016 (K13) |
NISSAN | MURANO | 2005 - 2008 (Z50) |
NISSAN | MURANO | 2009 - 2011 (Z51) |
NISSAN | MURANO | 2012 - 2018 (Z51) |
NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS |
NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | PATHFINDER | 2005 - 2013 (R51) |
NISSAN | PATHFINDER | 2013 - 2015 (R52) |
NISSAN | QASHQAI | 2014 - 2017 (J11) |
NISSAN | QASHQAI | 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | QASHQAI | 2017 - 2019 (J11) |
NISSAN | QASHQAI | 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | SKYLINE | 2005 - 2007 (V35) |
NISSAN | SKYLINE | 2009 - 2011 (R35) |
NISSAN | XTRAIL | 2003 - 2007 (T30) |
NISSAN | XTRAIL | 2007 - 2013 (T31) |
NISSAN | XTRAIL | 2014 - 2017 (T32) |
NISSAN | XTRAIL | 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | XTRAIL | 2018 - 2019 (T32) |
NISSAN | XTRAIL | 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM |
PEUGEOT | 206 | 2002 - 2010 (No Chassis Code) |
PEUGEOT | 207 | 2006 - 2011 (A7) |
PEUGEOT | 208 | 2012 - 2014 (A99) |
PEUGEOT | 3008 | 2009 - 2015 (T8) |
PEUGEOT | 307 | 2001 - 2012 (T5-T6-T7) |
PEUGEOT | 308 | 2007 - 2014 (T7) |
PEUGEOT | 308 | 2015 - 2016 (T9) |
PEUGEOT | 4007 | 2009 - 2011 (No Chassis Code) |
PEUGEOT | 407 | 2004 - 2011 (SERIES 1 - SERIES 2) |
PEUGEOT | 508 | 2011 - 2014 (No Chassis Code) |
PEUGEOT | 607 | 2005 - 2011 (No Chassis Code) |
PEUGEOT | PARTNER | 2002 - 2014 (B9P) |
PEUGEOT | RCZ | 2010 - 2015 (No Chassis Code) |
PORSCHE | 911 | 1998 - 2005 (996) |
PORSCHE | 911 | 2005 - 2012 (997) |
PORSCHE | 911 | 2011 - 2016 (991) |
PORSCHE | BOXSTER | 1998 - 2004 (986) |
PORSCHE | BOXSTER | 2004 - 2012 (987) |
PORSCHE | BOXSTER | 2012 - 2016 (981) |
PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
PORSCHE | CAYENNE | 2013 - 2018 (92A) |
PORSCHE | CAYMAN | 2005 - 2011 (987C) |
PORSCHE | CAYMAN | 2012 - 2016 (981) |
SCANIA TRUCKS | RS70 (Incl R480) | 2004 - 2011 (No Chassis Code) |
SKODA | FABIA | 2007 - 2015 (5J) |
SKODA | FABIA | 2015 - 2019 (NJ) |
SKODA | OCTAVIA | 2004 - 2008 (1U) |
SKODA | OCTAVIA | 2009 - 2012 (1Z) |
SKODA | OCTAVIA | 2013 - 2019 (NE - 5E) |
SKODA | RAPID | 2013 - 2015 (NH) |
SKODA | ROOMSTER | 2006 - 2011 (5J) |
SKODA | SUPERB | 2009 - 2015 (3T) |
SKODA | YETI | 2009 - 2019 (5L) |
SMART | FOR FOUR | 2004 - 2006 (W454) |
SMART | FOR TWO | 2008 - 2014 (451) |
SSANGYONG | ACTYON | 2006 - 2013 (100 Series) |
SSANGYONG | KORANDO | 2011 - 2012 (C200) |
SSANGYONG | KORANDO | 2013 - 2015 (C200) |
SSANGYONG | REXTON | 2006 - 2011 (Y250) |
SSANGYONG | REXTON | 2011 - 2015 (Y285) |
SUBARU | BRZ | 2017 - 2020 (POST-FACELIFT) |
SUBARU | FORESTER | 2007 - 2012 (SH) |
SUBARU | FORESTER | 2013 - 2014 (SJ) |
SUBARU | FORESTER | 2015 - 2018 (SJ) |
SUBARU | FORESTER | 2019 - 2021 (SK) |
SUBARU | IMPREZA | 2016 - 2018 (GK-GT) |
SUBARU | IMPREZA (Inc WRX) | 2007 - 2012 (GE-GH-GR-GV) |
SUBARU | IMPREZA (Inc WRX) | 2012 - 2014 (GP-GJ) |
SUBARU | IMPREZA (Inc WRX) | 2015 - 2016 (GP-GJ) |
SUBARU | LEVORG | 2016 - 2018 (V1) |
SUBARU | LIBERTY (Inc Outback) | 2004 - 2005 (BL-BP) |
SUBARU | LIBERTY (Inc Outback) | 2006 - 2008 (BL-BP) |
SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITH NAV |
SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITHOUT NAV |
SUBARU | LIBERTY (Inc Outback) | 2015 - 2017 (BN-BS) |
SUBARU | LIBERTY (Inc Outback) | 2018 - 2020 (BN-BS) |
SUBARU | WRX (Inc STI) | 2015 - 2018 (VA) |
SUBARU | XV | 2012 - 2014 (GP) |
SUBARU | XV | 2015 - 2016 (GP Facelift) |
SUBARU | XV | 2017 - 2021 (GT) |
SUZUKI | ALTO | 2009 - 2013 (GF) |
SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
SUZUKI | SWIFT | 2006 - 2010 (RS416) |
SUZUKI | SWIFT | 2011 - 2016 (FZ) |
SUZUKI | SWIFT | 2017 - 2020 (AZ) |
SUZUKI | SX4 (Incl S-Cross) | 2007 - 2011 (GYB - GYC) |
SUZUKI | SX4 (Incl S-Cross) | 2014 - 2016 (GYA) |
SUZUKI | VITARA | 2015 - 2016 (LY) |
TOYOTA | 86 | 2012 - 2017 (PRE-FACELIFT) |
TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
TOYOTA | AURION | 2006 - 2011 (XV40 Series) |
TOYOTA | AURION | 2012 - 2015 (XV50 Series) |
TOYOTA | AURION | 2015 - 2017 (XV50 Series) |
TOYOTA | AVENSIS VERSO | 2005 - 2010 (ACM20 - ACM21R Series) |
TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
TOYOTA | LANDCRUISER | 2007 - 2019 (70 Series - 79 Series) |
TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
VOLKSWAGEN | AMAROK | 2011 - 2015 (2H Series) |
VOLKSWAGEN | AMAROK | 2015 - 2020 (2H Series) |
VOLKSWAGEN | BEETLE | 2000 - 2011 (1Y Series) |
VOLKSWAGEN | BEETLE | 2013 - 2015 (1L Series) |
VOLKSWAGEN | BEETLE | 2016 - 2017 (A5 Series) |
SKU | C8NECTNAV |
---|---|
Barcode # | 9342270002706 |
Brand | Canm8 |
Shipping Weight | 1.5000kg |
The CANM8 CANNECT NAV is a multi-output CAN Bus interface designed to provide a universal solution for installing after-market electronic products, such as navigation systems, to vehicles which feature CAN Bus wiring. The interface features “Key-In” detection with compatible vehicles enabling the ignition-on output to remain active when the ignition is turned off but the key remains in the ignition.
Outputs
Speed Signal | > | 12v square pulsed output at approximately 1 pulse per 1 MPH. |
Ignition ON | > | 12v (1A max) when the ignition is switched on |
Reverse | > | 12v (1A max) when reverse gear is selected. |
Illumination | > | 12v (1A max) when the side lights are active. |
Park Brake | > | 0v (1A max) when the park brake is engaged. |
N.B. Illumination output is dependent on available vehicle data and may use dipped beam (if available).
N.B. Park brake output is dependent on available vehicle data.
Applications
The CANM8 CANNECT NAV is an ideal solution for use when installing navigation systems, car audio & entertainment systems, mobile phone hands-free kits, taxi meters and many other systems which require sensing of vehicle signals. Installation time is drastically reduced as instead of hard wiring into the vehicle to find all the different required outputs, this interface provides 5 of the most common outputs from a mere 4 connections to the vehicle.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
Flashing Red: Searching for CAN information. | |
Solid Red: CAN Data received but vehicle not yet identified. | |
Solid Green: CAN Data received and vehicle type recognised. | |
Flashing Green: Vehicle speed detected. |
Wiring Harness Details
Connect via a 5A fuse to a PERMANENT 12v supply. | ||
Connect to a good chassis GROUND point. | ||
CAN HI Connection : Vehicle CAN HI wire. | ||
CAN LO Connection : Vehicle CAN LO wire. | ||
Speed Signal Output : 12v pulsing (1 Hz = 1 MPH approx). | ||
Ignition On Output : 12v (1A max) when the ignition is switched on. | ||
Illumination Output : 12v (1A max) when side lights are active. | ||
Reverse Output : 12v (1A max) when reverse gear is selected. | ||
Park Brake Output : 0v (1A max) when the park brake is engaged. |
Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
---|---|---|
ALFA ROMEO | 147 | 2000 - 2010 (937) |
ALFA ROMEO | 156 | 2001 - 2007 (932) |
ALFA ROMEO | 159 | 2005 - 2014 (939) |
ALFA ROMEO | BRERA | 2006 - 2011 (939) |
ALFA ROMEO | GIULIETTA | 2010 - 2014 (940) |
ALFA ROMEO | GIULIETTA | 2014 - 2015 (940) |
ALFA ROMEO | GT | 2004 - 2008 (937) |
ALFA ROMEO | MITO | 2008 - 2014 (955) |
AUDI | A1 | 2010 - 2018 (8X) |
AUDI | A3 (Incl S3) | 2004 - 2013 (8P) |
AUDI | A3 (Incl S3) | 2012 - 2019 (8V) |
AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
AUDI | A4 (Incl S4) | 2009 - 2015 (B8) |
AUDI | A5 (Incl S5) | 2007 - 2011 (8T3 - 8F7 - 8TA) |
AUDI | A5 (Incl S5) | 2016 - 2019 (F5) |
AUDI | A6 (Incl S6) | 2005 - 2011 (4F) |
AUDI | A6 (Incl S6) | 2011 - 2019 (4G) |
AUDI | A7 | 2011 - 2018 (4G) |
AUDI | A8 (Incl S8) | 2004 - 2009 (D3-4E) |
AUDI | A8 (Incl S8) | 2011 - 2017 (4H) |
AUDI | Q3 | 2011 - 2018 (8U) |
AUDI | Q5 | 2009 - 2016 (8R) |
AUDI | Q5 | 2017 - 2019 (FY) |
AUDI | Q7 | 2006 - 2015 (4L) |
AUDI | Q7 | 2015 - 2019 (4M) |
AUDI | R8 | 2007 - 2015 (42) |
AUDI | TT | 1999 - 2005 (8N) |
AUDI | TT | 2006 - 2014 (8J) |
AUDI | TT | 2014 - 2019 (FV-8S) |
BMW | 1 SERIES (Incl M1) | 2004 - 2013 (E81-E82-E87-E88) |
BMW | 2 SERIES | 2015 - 2019 (F25) |
BMW | 3 SERIES (Incl M3) | 2005 - 2014 (E90) |
BMW | 4 SERIES | 2013 - 2019 (F32-F33) |
BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
BMW | 6 SERIES | 2004 - 2011 (E63) |
BMW | 6 SERIES | 2011 - 2019 (F12-F13) |
BMW | 7 SERIES | 2001 - 2008 (E65-E66-E67-E68) |
BMW | 7 SERIES | 2008 - 2013 (F01-F02) |
BMW | I3 | 2014 - 2019 (IO1) |
BMW | X1 | 2009 - 2015 (E84) |
BMW | X2 | 2016 - 2019 (F39) |
BMW | X3 | 2003 - 2010 (E83) |
BMW | X3 | 2011 - 2019 (F25) |
BMW | X4 | 2014 - 2018 (F26) |
BMW | X4 | 2018 - 2019 (G02) |
BMW | X5 | 2000 - 2005 (E53) |
BMW | X5 | 2006 - 2011 (E70) |
BMW | X5 | 2013 - 2019 (F15) |
BMW | X6 | 2008 - 2013 (E71) |
BMW | Z4 | 2003 - 2008 (E85-E86) |
BMW | Z4 | 2009 - 2016 (E89) |
CADILLAC | ESCALADE | 2007 - 2014 (THIRD GEN) |
CHEVROLET | CAMARO | 2010 - 2015 (5TH GEN) |
CHRYSLER | 300C | 2005 - 2008 (FIRST GEN) |
CHRYSLER | 300C | 2009 - 2011 (SECOND GEN) |
CHRYSLER | 300C | 2011 - 2018 (THIRD GEN) |
CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2008 - 2014 (5TH GEN) |
CITROEN | BERLINGO | 2003 - 2007 (FIRST GEN) |
CITROEN | BERLINGO | 2008 - 2015 (SECOND GEN) |
CITROEN | C2 | 2006 - 2008 (FIRST GEN) |
CITROEN | C3 | 2002 - 2009 (FIRST GEN) |
CITROEN | C3 | 2010 - 2016 (SECOND GEN) |
CITROEN | C4 | 2004 - 2010 (FIRST GEN) |
CITROEN | C4 | 2011 - 2018 (SECOND GEN) |
CITROEN | C5 | 2004 - 2007 (DC-DE) |
CITROEN | C5 | 2008 - 2013 (RD-TD) |
CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
DODGE | CALIBER | 2009 - 2012 (SECOND GEN) |
DODGE | CHALLENGER R/T | 2008 - 2014 (THIRD GEN) |
DODGE | JOURNEY | 2008 - 2011 (FIRST GEN) |
DODGE | JOURNEY | 2012 - 2015 (SECOND GEN) |
DODGE | RAM | 2009 - 2012 (4TH GEN) |
DODGE | RAM | 2013 - 2020 (4TH GEN) |
FIAT | 500 | 2008 - 2015 (SERIES 1 - SERIES 3) |
FIAT | 500 | 2015 - 2018 (SERIES 5) |
FIAT | DUCATO | 2006 - 2012 (THIRD GEN) |
FIAT | DUCATO | 2012 - 2014 (THIRD GEN) |
FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
FIAT | FREEMONT | 2012 - 2015 (FIRST GEN) |
FIAT | PUNTO | 2005 - 2013 (THIRD GEN) |
FIAT | SCUDO | 2007 - 2011 (SECOND GEN) |
FIAT | SCUDO | 2012 - 2013 (THIRD GEN) |
FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
FORD | ESCAPE | 2016 - 2018 (ZG) |
FORD | F SERIES | 2005 - 2008 (11th Gen) |
FORD | F SERIES | 2009 - 2014 (12th Gen) |
FORD | F SERIES | 2015 - 2019 (13th Gen) |
FORD | FIESTA | 2006 - 2008 (WQ) |
FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
FORD | FOCUS (Incl XR5) | 2008 - 2011 (LV) |
FORD | FOCUS (Incl XR5) | 2012 - 2015 (LW) |
FORD | FOCUS (Incl XR5) | 2016 - 2019 (LW) |
FORD | KA | 1997 - 2011 (FIRST GEN) |
FORD | KUGA | 2011 - 2013 (1ST GEN) |
FORD | KUGA | 2013 - 2015 (2ND GEN) |
FORD | MONDEO | 2007 - 2014 (MB - MC) |
FORD | MONDEO | 2015 - 2019 (MD) |
FORD | MUSTANG | 2005 - 2011 (5TH GEN) |
FORD | MUSTANG | 2010 - 2014 (5TH GEN) |
FORD | MUSTANG | 2015 - 2017 (6TH GEN) |
FORD | RANGER | 2011 - 2015 (PX) |
FORD | RANGER | 2015 - 2019 (PX2-PX3) |
FORD | SUPER DUTY (F SERIES) | 2008 - 2010 (2ND GEN) |
FORD | SUPER DUTY (F SERIES) | 2011 - 2016 (3RD GEN) |
FORD | SUPER DUTY (F SERIES) | 2017 - 2019 (4TH GEN) |
FORD | TRANSIT | 2001 - 2006 (VF-VG-VH-VJ) |
FORD | TRANSIT | 2007 - 2014 (VM) |
FORD | TRANSIT | 2015 - 2017 (VO) |
FORD | TRANSIT CUSTOM | 2013 - 2016 (VN-EURO 5) |
FORD | TRANSIT CUSTOM | 2016 - 2017 (VN-EURO 6) |
FORD | TRANSIT CUSTOM | 2018 - 2019 (VN) |
GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
HOLDEN | BARINA | 2012 - 2016 (TM) |
HOLDEN | BARINA | 2017 - 2018 (TM) |
HOLDEN | BARINA SPARK | 2010 - 2016 (MJ) |
HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
HOLDEN | COMMODORE | 2013 - 2015 (VF) |
HOLDEN | CRUZE | 2008 - 2016 (J300) |
HOLDEN | EPICA | 2006 - 2011 (EP) |
HOLDEN | MALIBU | 2013 - 2016 (EM) |
HOLDEN | SPARK | 2016 - 2017 (M400) |
HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
HONDA | ACCORD | 2013 - 2015 (9TH GEN) |
HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
HONDA | CIVIC HATCH | 2016 - 2018 (10TH GEN) |
HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
HONDA | CIVIC SEDAN | 2015 - 2016 (9TH GEN) |
HONDA | CIVIC SEDAN | 2016 - 2018 (10TH GEN) |
HONDA | CRV | 2007 - 2011 (RE) |
HONDA | CRV | 2012 - 2015 (RM) |
HONDA | CRV | 2015 - 2016 (RM) |
HONDA | CRV | 2017 - 2018 (RW) |
HONDA | CRZ | 2010 - 2014 (ZF) |
HONDA | INSIGHT | 2009 - 2013 (ZE) |
HONDA | JAZZ | 2008 - 2013 (GE) |
HONDA | JAZZ | 2014 - 2016 (GF) |
HONDA | JAZZ | 2017 - 2019 (GF) |
HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
HUMMER | H2 | 2008 - 2011 (H2) |
HYUNDAI | ACCENT | 2006 - 2008 (MC) |
HYUNDAI | i20 | 2010 - 2012 (PB) |
HYUNDAI | i20 | 2012 - 2015 (PB) |
HYUNDAI | i30 | 2007 - 2011 (FD) |
HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
HYUNDAI | i30 | 2017 - 2021 (PD) |
HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
HYUNDAI | ILOAD (Incl IMAX) | 2008 - 2016 (TQ) |
HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
HYUNDAI | ix35 | 2010 - 2013 (LM) |
HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
HYUNDAI | KONA | 2017 - 2018 (OS - OS2) |
HYUNDAI | SANTA FE | 2007 - 2009 (CM) |
HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
HYUNDAI | SONATA | 2002 - 2005 (EF) |
HYUNDAI | SONATA | 2006 - 2008 (NF) |
HYUNDAI | SONATA | 2009 - 2011 (YF) |
HYUNDAI | SONATA | 2014 - 2016 (LF) |
HYUNDAI | TUCSON | 2005 - 2010 (JM) |
HYUNDAI | TUCSON | 2015 - 2018 (TL) |
HYUNDAI | TUCSON | 2018 - 2019 (TL) |
HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
ISUZU | DMAX | 2009 - 2011 (RA - RC) |
ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
IVECO | DAILY | 2007 - 2014 (5TH GEN) |
IVECO | DAILY | 2015 - 2017 (6TH GEN) |
IVECO | DAILY | 2018 - 2019 (6TH GEN) |
JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
JAGUAR | XJ8 | 2003 - 2008 (No Chassis Code) |
JEEP | CHEROKEE | 2001 - 2007 (KJ) |
JEEP | CHEROKEE | 2007 - 2012 (KK) |
JEEP | CHEROKEE | 2014 - 2018 (KL) |
JEEP | COMMANDER | 2005 - 2008 (XK) |
JEEP | COMMANDER | 2008 - 2010 (XK) |
JEEP | COMPASS | 2007 - 2009 (MK) |
JEEP | COMPASS | 2009 - 2017 (MK) |
JEEP | COMPASS | 2017 - 2018 (M6) |
JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
JEEP | GRAND CHEROKEE | 2008 - 2011 (WH-WK) |
JEEP | GRAND CHEROKEE | 2012 - 2013 (WK2) |
JEEP | GRAND CHEROKEE | 2014 - 2020 (WK2) |
JEEP | PATRIOT | 2007 - 2009 (MK) |
JEEP | PATRIOT | 2010 - 2016 (MK) |
JEEP | RENEGADE | 2015 - 2016 (BU-520) |
JEEP | WRANGLER | 2007 - 2018 (JK) |
KIA | CARNIVAL | 2015 - 2017 (YP) |
KIA | CARNIVAL | 2018 - 2019 (YP) |
KIA | CARNIVAL (Incl Grand) | 2006 - 2015 (VQ) |
KIA | CERATO | 2004 - 2009 (LD) |
KIA | CERATO | 2010 - 2012 (TD) |
KIA | CERATO | 2013 - 2018 (YD) |
KIA | MAGENTIS | 2006 - 2010 (MG) |
KIA | OPTIMA | 2006 - 2010 (MG) |
KIA | OPTIMA | 2010 - 2013 (TF1) |
KIA | OPTIMA | 2013 - 2015 (TF2) |
KIA | OPTIMA | 2016 - 2017 (JF) |
KIA | PICANTO | 2016 - 2017 (TA) |
KIA | PICANTO | 2017 - 2018 (JA) |
KIA | PRO CEED | 2014 - 2015 (JD) |
KIA | RIO | 2006 - 2009 (JB) |
KIA | RIO | 2010 - 2014 (UB) |
KIA | RIO | 2014 - 2017 (UB) |
KIA | SORENTO | 2007 - 2008 (BL) |
KIA | SORENTO | 2009 - 2012 (XM) |
KIA | SORENTO | 2013 - 2015 (XM) |
KIA | SORENTO | 2015 - 2018 (UM) |
KIA | SORENTO EX | 2003 - 2009 (BL) |
KIA | SORENTO LX | 2007 - 2009 (BL) |
KIA | SOUL | 2009 - 2011 (AM) |
KIA | SOUL | 2011 - 2013 (AM) |
KIA | SOUL | 2014 - 2018 (PS) |
KIA | SPORTAGE | 2005 - 2009 (KM) |
KIA | SPORTAGE | 2010 - 2015 (SL) |
KIA | SPORTAGE | 2016 - 2018 (QL) |
KIA | SPORTAGE | 2018 - 2019 (QL) |
LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
LAND ROVER | DEFENDER | 2008 - 2015 (No Chassis Code) |
LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
LAND ROVER | DISCOVERY IV | 2010 - 2016 (L319) |
LAND ROVER | EVOQUE | 2011 - 2013 (L538) |
LAND ROVER | FREELANDER | 1997 - 2003 (L314) |
LAND ROVER | FREELANDER | 2004 - 2006 (L314) |
LAND ROVER | FREELANDER II | 2007 - 2011 (L359) |
LAND ROVER | FREELANDER II | 2012 - 2014 (L359) |
LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
LAND ROVER | RANGE ROVER SPORT | 2005 - 2010 (L320) |
LAND ROVER | RANGE ROVER SPORT | 2010 - 2013 (L320) |
LAND ROVER | RANGE ROVER SPORT | 2013 - 2015 (L494) |
LEXUS | CT | 2011 - 2013 (C10) |
LEXUS | IS | 2006 - 2015 (XE20) |
LEXUS | IS | 2016 - 2018 (XE30) |
LEXUS | RX | 2003 - 2008 (XU30) |
LEXUS | RX | 2010 - 2015 (AL10) |
LEXUS | RX | 2016 - 2018 (AL20) |
MAZDA | 2 | 2003 - 2007 (DY) |
MAZDA | 2 | 2007 - 2015 (DE) |
MAZDA | 2 | 2015 - 2016 (DJ) |
MAZDA | 3 | 2004 - 2009 (BK) |
MAZDA | 3 | 2009 - 2013 (BL) |
MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
MAZDA | 3 | 2016 - 2018 (BN) |
MAZDA | 6 | 2003 - 2005 (GG) |
MAZDA | 6 | 2005 - 2008 (GG) |
MAZDA | 6 | 2008 - 2010 (GH) |
MAZDA | 6 | 2010 - 2012 (GH) |
MAZDA | 6 | 2013 - 2015 (GJ) |
MAZDA | BT-50 | 2007 - 2011 (B Series) |
MAZDA | BT-50 | 2012 - 2015 (B32Q) |
MAZDA | BT-50 | 2015 - 2019 (UR) |
MAZDA | CX5 | 2012 - 2015 (KE) |
MAZDA | CX5 | 2015 - 2017 (KE) |
MAZDA | CX5 | 2017 - 2021 (KF) |
MAZDA | CX7 | 2006 - 2010 (ER) |
MAZDA | CX7 | 2010 - 2011 (ER) |
MAZDA | CX9 | 2006 - 2011 (TB) |
MAZDA | CX9 | 2012 - 2015 (TB) |
MAZDA | MPV | 2000 - 2006 (LW) |
MAZDA | MX5 | 2006 - 2008 (NC) |
MAZDA | MX5 | 2009 - 2013 (ND) |
MAZDA | RX8 | 2004 - 2008 (FE) |
MAZDA | RX8 | 2008 - 2012 (FE) |
MERCEDES | A CLASS | 2005 - 2007 (W169) |
MERCEDES | A CLASS | 2007 - 2011 (W169) |
MERCEDES | A CLASS | 2013 - 2016 (W176) |
MERCEDES | B CLASS | 2005 - 2007 (W245) |
MERCEDES | B CLASS | 2007 - 2011 (W245) |
MERCEDES | C CLASS | 2000 - 2004 (W203) |
MERCEDES | C CLASS | 2005 - 2008 (W203) |
MERCEDES | C CLASS | 2008 - 2011 (W204) |
MERCEDES | C CLASS | 2011 - 2014 (W204) |
MERCEDES | CLK | 2002 - 2004 (W208) |
MERCEDES | CLK | 2005 - 2011 (W209) |
MERCEDES | CLS | 2005 - 2010 (W219) |
MERCEDES | E CLASS | 2002 - 2007 (W211) |
MERCEDES | E CLASS | 2008 - 2011 (W212) |
MERCEDES | G CLASS | 2006 - 2012 (W463) |
MERCEDES | GL CLASS | 2006 - 2012 (X164) |
MERCEDES | M CLASS | 2005 - 2011 (W164) |
MERCEDES | R CLASS | 2006 - 2012 (W251) |
MERCEDES | S CLASS | 1998 - 2006 (W220) |
MERCEDES | SL CLASS | 2005 - 2013 (R230) |
MERCEDES | SLK CLASS | 2004 - 2011 (R171) |
MERCEDES | SPRINTER | 2007 - 2018 (W906) |
MERCEDES | VITO (Inc VIANO or VALENTE) | 2004 - 2007 (W639) |
MERCEDES | VITO (Inc VIANO or VALENTE) | 2007 - 2015 (W639) |
MERCEDES | VITO (Inc VIANO or VALENTE) | 2015 - 2019 (W447) |
MG | MG6 | 2013 - 2018 (1st Generation) |
MITSUBISHI | ASX | 2010 - 2013 (XA) |
MITSUBISHI | COLT | 2004 - 2007 (RG) |
MITSUBISHI | COLT | 2007 - 2011 (RZ) |
MITSUBISHI | GRANDIS | 2004 - 2011 (BA) |
MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
MITSUBISHI | PAJERO | 2006 - 2015 (NS-NT-NW) |
MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
MITSUBISHI | TRITON | 2004 - 2007 (MK) |
MITSUBISHI | TRITON | 2007 - 2013 (ML) |
MITSUBISHI | TRITON | 2013 - 2015 (MN) |
MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
MITSUBISHI | TRITON | 2019 - 2021 (MR) |
MITSUBISHI | TRITON | 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | ALTIMA | 2013 - 2016 (L33) |
NISSAN | CUBE | 1998 - 2016 (Z11 - Z12) |
NISSAN | ELGRAND | 2005 - 2010 (E51) |
NISSAN | JUKE | 2013 - 2015 (F15) |
NISSAN | JUKE | 2016 - 2018 (F15) |
NISSAN | MICRA | 2003 - 2009 (K12) |
NISSAN | MICRA | 2010 - 2014 (K13) |
NISSAN | MICRA | 2015 - 2016 (K13) |
NISSAN | MURANO | 2005 - 2008 (Z50) |
NISSAN | MURANO | 2009 - 2011 (Z51) |
NISSAN | MURANO | 2012 - 2018 (Z51) |
NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS |
NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | PATHFINDER | 2005 - 2013 (R51) |
NISSAN | PATHFINDER | 2013 - 2015 (R52) |
NISSAN | QASHQAI | 2014 - 2017 (J11) |
NISSAN | QASHQAI | 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | QASHQAI | 2017 - 2019 (J11) |
NISSAN | QASHQAI | 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | SKYLINE | 2005 - 2007 (V35) |
NISSAN | SKYLINE | 2009 - 2011 (R35) |
NISSAN | XTRAIL | 2003 - 2007 (T30) |
NISSAN | XTRAIL | 2007 - 2013 (T31) |
NISSAN | XTRAIL | 2014 - 2017 (T32) |
NISSAN | XTRAIL | 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM |
NISSAN | XTRAIL | 2018 - 2019 (T32) |
NISSAN | XTRAIL | 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM |
PEUGEOT | 206 | 2002 - 2010 (No Chassis Code) |
PEUGEOT | 207 | 2006 - 2011 (A7) |
PEUGEOT | 208 | 2012 - 2014 (A99) |
PEUGEOT | 3008 | 2009 - 2015 (T8) |
PEUGEOT | 307 | 2001 - 2012 (T5-T6-T7) |
PEUGEOT | 308 | 2007 - 2014 (T7) |
PEUGEOT | 308 | 2015 - 2016 (T9) |
PEUGEOT | 4007 | 2009 - 2011 (No Chassis Code) |
PEUGEOT | 407 | 2004 - 2011 (SERIES 1 - SERIES 2) |
PEUGEOT | 508 | 2011 - 2014 (No Chassis Code) |
PEUGEOT | 607 | 2005 - 2011 (No Chassis Code) |
PEUGEOT | PARTNER | 2002 - 2014 (B9P) |
PEUGEOT | RCZ | 2010 - 2015 (No Chassis Code) |
PORSCHE | 911 | 1998 - 2005 (996) |
PORSCHE | 911 | 2005 - 2012 (997) |
PORSCHE | 911 | 2011 - 2016 (991) |
PORSCHE | BOXSTER | 1998 - 2004 (986) |
PORSCHE | BOXSTER | 2004 - 2012 (987) |
PORSCHE | BOXSTER | 2012 - 2016 (981) |
PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
PORSCHE | CAYENNE | 2013 - 2018 (92A) |
PORSCHE | CAYMAN | 2005 - 2011 (987C) |
PORSCHE | CAYMAN | 2012 - 2016 (981) |
SCANIA TRUCKS | RS70 (Incl R480) | 2004 - 2011 (No Chassis Code) |
SKODA | FABIA | 2007 - 2015 (5J) |
SKODA | FABIA | 2015 - 2019 (NJ) |
SKODA | OCTAVIA | 2004 - 2008 (1U) |
SKODA | OCTAVIA | 2009 - 2012 (1Z) |
SKODA | OCTAVIA | 2013 - 2019 (NE - 5E) |
SKODA | RAPID | 2013 - 2015 (NH) |
SKODA | ROOMSTER | 2006 - 2011 (5J) |
SKODA | SUPERB | 2009 - 2015 (3T) |
SKODA | YETI | 2009 - 2019 (5L) |
SMART | FOR FOUR | 2004 - 2006 (W454) |
SMART | FOR TWO | 2008 - 2014 (451) |
SSANGYONG | ACTYON | 2006 - 2013 (100 Series) |
SSANGYONG | KORANDO | 2011 - 2012 (C200) |
SSANGYONG | KORANDO | 2013 - 2015 (C200) |
SSANGYONG | REXTON | 2006 - 2011 (Y250) |
SSANGYONG | REXTON | 2011 - 2015 (Y285) |
SUBARU | BRZ | 2017 - 2020 (POST-FACELIFT) |
SUBARU | FORESTER | 2007 - 2012 (SH) |
SUBARU | FORESTER | 2013 - 2014 (SJ) |
SUBARU | FORESTER | 2015 - 2018 (SJ) |
SUBARU | FORESTER | 2019 - 2021 (SK) |
SUBARU | IMPREZA | 2016 - 2018 (GK-GT) |
SUBARU | IMPREZA (Inc WRX) | 2007 - 2012 (GE-GH-GR-GV) |
SUBARU | IMPREZA (Inc WRX) | 2012 - 2014 (GP-GJ) |
SUBARU | IMPREZA (Inc WRX) | 2015 - 2016 (GP-GJ) |
SUBARU | LEVORG | 2016 - 2018 (V1) |
SUBARU | LIBERTY (Inc Outback) | 2004 - 2005 (BL-BP) |
SUBARU | LIBERTY (Inc Outback) | 2006 - 2008 (BL-BP) |
SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITH NAV |
SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITHOUT NAV |
SUBARU | LIBERTY (Inc Outback) | 2015 - 2017 (BN-BS) |
SUBARU | LIBERTY (Inc Outback) | 2018 - 2020 (BN-BS) |
SUBARU | WRX (Inc STI) | 2015 - 2018 (VA) |
SUBARU | XV | 2012 - 2014 (GP) |
SUBARU | XV | 2015 - 2016 (GP Facelift) |
SUBARU | XV | 2017 - 2021 (GT) |
SUZUKI | ALTO | 2009 - 2013 (GF) |
SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
SUZUKI | SWIFT | 2006 - 2010 (RS416) |
SUZUKI | SWIFT | 2011 - 2016 (FZ) |
SUZUKI | SWIFT | 2017 - 2020 (AZ) |
SUZUKI | SX4 (Incl S-Cross) | 2007 - 2011 (GYB - GYC) |
SUZUKI | SX4 (Incl S-Cross) | 2014 - 2016 (GYA) |
SUZUKI | VITARA | 2015 - 2016 (LY) |
TOYOTA | 86 | 2012 - 2017 (PRE-FACELIFT) |
TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
TOYOTA | AURION | 2006 - 2011 (XV40 Series) |
TOYOTA | AURION | 2012 - 2015 (XV50 Series) |
TOYOTA | AURION | 2015 - 2017 (XV50 Series) |
TOYOTA | AVENSIS VERSO | 2005 - 2010 (ACM20 - ACM21R Series) |
TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
TOYOTA | LANDCRUISER | 2007 - 2019 (70 Series - 79 Series) |
TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
VOLKSWAGEN | AMAROK | 2011 - 2015 (2H Series) |
VOLKSWAGEN | AMAROK | 2015 - 2020 (2H Series) |
VOLKSWAGEN | BEETLE | 2000 - 2011 (1Y Series) |
VOLKSWAGEN | BEETLE | 2013 - 2015 (1L Series) |
VOLKSWAGEN | BEETLE | 2016 - 2017 (A5 Series) |
SKU | C8NECTNAV |
---|---|
Barcode # | 9342270002706 |
Brand | Canm8 |
Shipping Weight | 1.5000kg |
