Description
Selected Part Number: C8NECTAV3
General Product Information

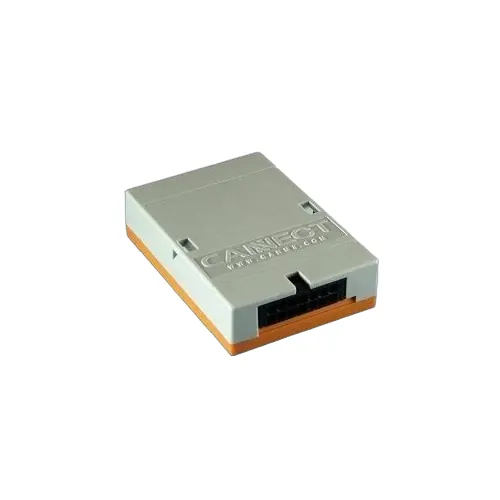

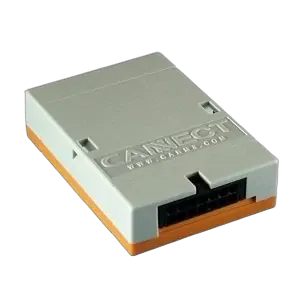

The CANM8 CANNECT AV3 interface is designed to provide a universal solution for installing after-market electronic products to vehicles which feature CAN Bus wiring.
Outputs
| Ignition On | > | 12v (1A max) when the ignition is switched on. |
| Reverse | > | 12v (1A max) when reverse gear is selected. |
| Park Brake | > | 0v (1A max) when the park brake is engaged. |
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
 | Flashing Red: Searching for CAN information. |
 | Solid Red: CAN Data received but vehicle not yet identified. |
 | Solid Green: CAN Data received and vehicle type recognised. |
 | Flashing Green: Vehicle speed detected. |
Wiring Harness Details
| Connect via a 5A fuse to a PERMANENT 12v supply. | ||
| Connect to a good chassis GROUND point. | ||
| CAN HI Connection : Vehicle CAN HI wire. | ||
| CAN LO Connection : Vehicle CAN LO wire. | ||
| Ignition On Output : 12v (1A max) when the ignition is switched on. | ||
| Reverse Output : 12v (1A max) when reverse gear is selected. | ||
| Park Brake Output : 0v (1A max) when the park brake is engaged. |
Important Product Compatibility Information
Product Vehicle Applications
This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| ALFA ROMEO | 147 | 2000 - 2010 (937) |
| ALFA ROMEO | 156 | 2001 - 2007 (932) |
| ALFA ROMEO | 159 | 2005 - 2014 (939) |
| ALFA ROMEO | BRERA | 2006 - 2011 (939) |
| ALFA ROMEO | GIULIETTA | 2010 - 2014 (940) |
| ALFA ROMEO | GIULIETTA | 2014 - 2015 (940) |
| ALFA ROMEO | GT | 2004 - 2008 (937) |
| ALFA ROMEO | MITO | 2008 - 2014 (955) |
| AUDI | A1 | 2010 - 2018 (8X) |
| AUDI | A3 (Incl S3) | 2004 - 2013 (8P) |
| AUDI | A3 (Incl S3) | 2012 - 2019 (8V) |
| AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
| AUDI | A4 (Incl S4) | 2009 - 2015 (B8) |
| AUDI | A5 (Incl S5) | 2007 - 2011 (8T3 - 8F7 - 8TA) |
| AUDI | A5 (Incl S5) | 2016 - 2019 (F5) |
| AUDI | A6 (Incl S6) | 2005 - 2011 (4F) |
| AUDI | A6 (Incl S6) | 2011 - 2019 (4G) |
| AUDI | A7 | 2011 - 2018 (4G) |
| AUDI | A8 (Incl S8) | 2004 - 2009 (D3-4E) |
| AUDI | A8 (Incl S8) | 2011 - 2017 (4H) |
| AUDI | Q3 | 2011 - 2018 (8U) |
| AUDI | Q5 | 2009 - 2016 (8R) |
| AUDI | Q5 | 2017 - 2019 (FY) |
| AUDI | Q7 | 2006 - 2015 (4L) |
| AUDI | Q7 | 2015 - 2019 (4M) |
| AUDI | R8 | 2007 - 2015 (42) |
| AUDI | TT | 1999 - 2005 (8N) |
| AUDI | TT | 2006 - 2014 (8J) |
| AUDI | TT | 2014 - 2019 (FV-8S) |
| BMW | 1 SERIES (Incl M1) | 2004 - 2013 (E81-E82-E87-E88) |
| BMW | 2 SERIES | 2015 - 2019 (F25) |
| BMW | 3 SERIES (Incl M3) | 2005 - 2014 (E90) |
| BMW | 4 SERIES | 2013 - 2019 (F32-F33) |
| BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
| BMW | 6 SERIES | 2004 - 2011 (E63) |
| BMW | 6 SERIES | 2011 - 2019 (F12-F13) |
| BMW | 7 SERIES | 2001 - 2008 (E65-E66-E67-E68) |
| BMW | 7 SERIES | 2008 - 2013 (F01-F02) |
| BMW | I3 | 2014 - 2019 (IO1) |
| BMW | X1 | 2009 - 2015 (E84) |
| BMW | X2 | 2016 - 2019 (F39) |
| BMW | X3 | 2003 - 2010 (E83) |
| BMW | X3 | 2011 - 2019 (F25) |
| BMW | X4 | 2014 - 2018 (F26) |
| BMW | X4 | 2018 - 2019 (G02) |
| BMW | X5 | 2000 - 2005 (E53) |
| BMW | X5 | 2006 - 2011 (E70) |
| BMW | X5 | 2013 - 2019 (F15) |
| BMW | X6 | 2008 - 2013 (E71) |
| BMW | Z4 | 2003 - 2008 (E85-E86) |
| BMW | Z4 | 2009 - 2016 (E89) |
| CADILLAC | ESCALADE | 2007 - 2014 (THIRD GEN) |
| CHEVROLET | CAMARO | 2010 - 2015 (5TH GEN) |
| CHRYSLER | 300C | 2005 - 2008 (FIRST GEN) |
| CHRYSLER | 300C | 2009 - 2011 (SECOND GEN) |
| CHRYSLER | 300C | 2011 - 2018 (THIRD GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2008 - 2014 (5TH GEN) |
| CITROEN | BERLINGO | 2003 - 2007 (FIRST GEN) |
| CITROEN | BERLINGO | 2008 - 2015 (SECOND GEN) |
| CITROEN | C2 | 2006 - 2008 (FIRST GEN) |
| CITROEN | C3 | 2002 - 2009 (FIRST GEN) |
| CITROEN | C3 | 2010 - 2016 (SECOND GEN) |
| CITROEN | C4 | 2004 - 2010 (FIRST GEN) |
| CITROEN | C4 | 2011 - 2018 (SECOND GEN) |
| CITROEN | C5 | 2004 - 2007 (DC-DE) |
| CITROEN | C5 | 2008 - 2013 (RD-TD) |
| CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
| DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
| DODGE | CALIBER | 2009 - 2012 (SECOND GEN) |
| DODGE | CHALLENGER R/T | 2008 - 2014 (THIRD GEN) |
| DODGE | JOURNEY | 2008 - 2011 (FIRST GEN) |
| DODGE | JOURNEY | 2012 - 2015 (SECOND GEN) |
| DODGE | RAM | 2009 - 2012 (4TH GEN) |
| DODGE | RAM | 2013 - 2020 (4TH GEN) |
| FIAT | 500 | 2008 - 2015 (SERIES 1 - SERIES 3) |
| FIAT | 500 | 2015 - 2018 (SERIES 5) |
| FIAT | DUCATO | 2006 - 2012 (THIRD GEN) |
| FIAT | DUCATO | 2012 - 2014 (THIRD GEN) |
| FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
| FIAT | FREEMONT | 2012 - 2015 (FIRST GEN) |
| FIAT | PUNTO | 2005 - 2013 (THIRD GEN) |
| FIAT | SCUDO | 2007 - 2011 (SECOND GEN) |
| FIAT | SCUDO | 2012 - 2013 (THIRD GEN) |
| FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
| FORD | ESCAPE | 2016 - 2018 (ZG) |
| FORD | F SERIES | 2005 - 2008 (11th Gen) |
| FORD | F SERIES | 2009 - 2014 (12th Gen) |
| FORD | F SERIES | 2015 - 2019 (13th Gen) |
| FORD | FIESTA | 2006 - 2008 (WQ) |
| FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
| FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
| FORD | FOCUS (Incl XR5) | 2008 - 2011 (LV) |
| FORD | FOCUS (Incl XR5) | 2012 - 2015 (LW) |
| FORD | FOCUS (Incl XR5) | 2016 - 2019 (LW) |
| FORD | KA | 1997 - 2011 (FIRST GEN) |
| FORD | KUGA | 2011 - 2013 (1ST GEN) |
| FORD | KUGA | 2013 - 2015 (2ND GEN) |
| FORD | MONDEO | 2007 - 2014 (MB - MC) |
| FORD | MONDEO | 2015 - 2019 (MD) |
| FORD | MUSTANG | 2005 - 2011 (5TH GEN) |
| FORD | MUSTANG | 2010 - 2014 (5TH GEN) |
| FORD | MUSTANG | 2015 - 2017 (6TH GEN) |
| FORD | RANGER | 2011 - 2015 (PX) |
| FORD | RANGER | 2015 - 2019 (PX2-PX3) |
| FORD | SUPER DUTY (F SERIES) | 2008 - 2010 (2ND GEN) |
| FORD | SUPER DUTY (F SERIES) | 2011 - 2016 (3RD GEN) |
| FORD | SUPER DUTY (F SERIES) | 2017 - 2019 (4TH GEN) |
| FORD | TRANSIT | 2001 - 2006 (VF-VG-VH-VJ) |
| FORD | TRANSIT | 2007 - 2014 (VM) |
| FORD | TRANSIT | 2015 - 2017 (VO) |
| FORD | TRANSIT CUSTOM | 2013 - 2016 (VN-EURO 5) |
| FORD | TRANSIT CUSTOM | 2016 - 2017 (VN-EURO 6) |
| FORD | TRANSIT CUSTOM | 2018 - 2019 (VN) |
| GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
| HOLDEN | BARINA | 2012 - 2016 (TM) |
| HOLDEN | BARINA | 2017 - 2018 (TM) |
| HOLDEN | BARINA SPARK | 2010 - 2016 (MJ) |
| HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
| HOLDEN | COMMODORE | 2013 - 2015 (VF) |
| HOLDEN | CRUZE | 2008 - 2016 (J300) |
| HOLDEN | EPICA | 2006 - 2011 (EP) |
| HOLDEN | MALIBU | 2013 - 2016 (EM) |
| HOLDEN | SPARK | 2016 - 2017 (M400) |
| HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
| HONDA | ACCORD | 2013 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC HATCH | 2016 - 2018 (10TH GEN) |
| HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2016 - 2018 (10TH GEN) |
| HONDA | CRV | 2007 - 2011 (RE) |
| HONDA | CRV | 2012 - 2015 (RM) |
| HONDA | CRV | 2015 - 2016 (RM) |
| HONDA | CRV | 2017 - 2018 (RW) |
| HONDA | CRZ | 2010 - 2014 (ZF) |
| HONDA | INSIGHT | 2009 - 2013 (ZE) |
| HONDA | JAZZ | 2008 - 2013 (GE) |
| HONDA | JAZZ | 2014 - 2016 (GF) |
| HONDA | JAZZ | 2017 - 2019 (GF) |
| HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
| HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
| HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
| HUMMER | H2 | 2008 - 2011 (H2) |
| HYUNDAI | ACCENT | 2006 - 2008 (MC) |
| HYUNDAI | i20 | 2010 - 2012 (PB) |
| HYUNDAI | i20 | 2012 - 2015 (PB) |
| HYUNDAI | i30 | 2007 - 2011 (FD) |
| HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
| HYUNDAI | i30 | 2017 - 2021 (PD) |
| HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
| HYUNDAI | ILOAD (Incl IMAX) | 2008 - 2016 (TQ) |
| HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
| HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
| HYUNDAI | ix35 | 2010 - 2013 (LM) |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
| HYUNDAI | KONA | 2017 - 2018 (OS - OS2) |
| HYUNDAI | SANTA FE | 2007 - 2009 (CM) |
| HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
| HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
| HYUNDAI | SONATA | 2002 - 2005 (EF) |
| HYUNDAI | SONATA | 2006 - 2008 (NF) |
| HYUNDAI | SONATA | 2009 - 2011 (YF) |
| HYUNDAI | SONATA | 2014 - 2016 (LF) |
| HYUNDAI | TUCSON | 2005 - 2010 (JM) |
| HYUNDAI | TUCSON | 2015 - 2018 (TL) |
| HYUNDAI | TUCSON | 2018 - 2019 (TL) |
| HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
| ISUZU | DMAX | 2009 - 2011 (RA - RC) |
| ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
| ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
| IVECO | DAILY | 2007 - 2014 (5TH GEN) |
| IVECO | DAILY | 2015 - 2017 (6TH GEN) |
| IVECO | DAILY | 2018 - 2019 (6TH GEN) |
| JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
| JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
| JAGUAR | XJ8 | 2003 - 2008 (No Chassis Code) |
| JEEP | CHEROKEE | 2001 - 2007 (KJ) |
| JEEP | CHEROKEE | 2007 - 2012 (KK) |
| JEEP | CHEROKEE | 2014 - 2018 (KL) |
| JEEP | COMMANDER | 2005 - 2008 (XK) |
| JEEP | COMMANDER | 2008 - 2010 (XK) |
| JEEP | COMPASS | 2007 - 2009 (MK) |
| JEEP | COMPASS | 2009 - 2017 (MK) |
| JEEP | COMPASS | 2017 - 2018 (M6) |
| JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2008 - 2011 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2012 - 2013 (WK2) |
| JEEP | GRAND CHEROKEE | 2014 - 2020 (WK2) |
| JEEP | PATRIOT | 2007 - 2009 (MK) |
| JEEP | PATRIOT | 2010 - 2016 (MK) |
| JEEP | RENEGADE | 2015 - 2016 (BU-520) |
| JEEP | WRANGLER | 2007 - 2018 (JK) |
| KIA | CARNIVAL | 2015 - 2017 (YP) |
| KIA | CARNIVAL | 2018 - 2019 (YP) |
| KIA | CARNIVAL (Incl Grand) | 2006 - 2015 (VQ) |
| KIA | CERATO | 2004 - 2009 (LD) |
| KIA | CERATO | 2010 - 2012 (TD) |
| KIA | CERATO | 2013 - 2018 (YD) |
| KIA | MAGENTIS | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2010 - 2013 (TF1) |
| KIA | OPTIMA | 2013 - 2015 (TF2) |
| KIA | OPTIMA | 2016 - 2017 (JF) |
| KIA | PICANTO | 2016 - 2017 (TA) |
| KIA | PICANTO | 2017 - 2018 (JA) |
| KIA | PRO CEED | 2014 - 2015 (JD) |
| KIA | RIO | 2006 - 2009 (JB) |
| KIA | RIO | 2010 - 2014 (UB) |
| KIA | RIO | 2014 - 2017 (UB) |
| KIA | SORENTO | 2007 - 2008 (BL) |
| KIA | SORENTO | 2009 - 2012 (XM) |
| KIA | SORENTO | 2013 - 2015 (XM) |
| KIA | SORENTO | 2015 - 2018 (UM) |
| KIA | SORENTO EX | 2003 - 2009 (BL) |
| KIA | SORENTO LX | 2007 - 2009 (BL) |
| KIA | SOUL | 2009 - 2011 (AM) |
| KIA | SOUL | 2011 - 2013 (AM) |
| KIA | SOUL | 2014 - 2018 (PS) |
| KIA | SPORTAGE | 2005 - 2009 (KM) |
| KIA | SPORTAGE | 2010 - 2015 (SL) |
| KIA | SPORTAGE | 2016 - 2018 (QL) |
| KIA | SPORTAGE | 2018 - 2019 (QL) |
| LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
| LAND ROVER | DEFENDER | 2008 - 2015 (No Chassis Code) |
| LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
| LAND ROVER | DISCOVERY IV | 2010 - 2016 (L319) |
| LAND ROVER | EVOQUE | 2011 - 2013 (L538) |
| LAND ROVER | FREELANDER | 1997 - 2003 (L314) |
| LAND ROVER | FREELANDER | 2004 - 2006 (L314) |
| LAND ROVER | FREELANDER II | 2007 - 2011 (L359) |
| LAND ROVER | FREELANDER II | 2012 - 2014 (L359) |
| LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
| LAND ROVER | RANGE ROVER SPORT | 2005 - 2010 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2010 - 2013 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2013 - 2015 (L494) |
| LEXUS | CT | 2011 - 2013 (C10) |
| LEXUS | IS | 2006 - 2015 (XE20) |
| LEXUS | IS | 2016 - 2018 (XE30) |
| LEXUS | RX | 2003 - 2008 (XU30) |
| LEXUS | RX | 2010 - 2015 (AL10) |
| LEXUS | RX | 2016 - 2018 (AL20) |
| MAZDA | 2 | 2003 - 2007 (DY) |
| MAZDA | 2 | 2007 - 2015 (DE) |
| MAZDA | 2 | 2015 - 2016 (DJ) |
| MAZDA | 3 | 2004 - 2009 (BK) |
| MAZDA | 3 | 2009 - 2013 (BL) |
| MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
| MAZDA | 3 | 2016 - 2018 (BN) |
| MAZDA | 6 | 2003 - 2005 (GG) |
| MAZDA | 6 | 2005 - 2008 (GG) |
| MAZDA | 6 | 2008 - 2010 (GH) |
| MAZDA | 6 | 2010 - 2012 (GH) |
| MAZDA | 6 | 2013 - 2015 (GJ) |
| MAZDA | BT-50 | 2007 - 2011 (B Series) |
| MAZDA | BT-50 | 2012 - 2015 (B32Q) |
| MAZDA | BT-50 | 2015 - 2019 (UR) |
| MAZDA | CX5 | 2012 - 2015 (KE) |
| MAZDA | CX5 | 2015 - 2017 (KE) |
| MAZDA | CX5 | 2017 - 2021 (KF) |
| MAZDA | CX7 | 2006 - 2010 (ER) |
| MAZDA | CX7 | 2010 - 2011 (ER) |
| MAZDA | CX9 | 2006 - 2011 (TB) |
| MAZDA | CX9 | 2012 - 2015 (TB) |
| MAZDA | MPV | 2000 - 2006 (LW) |
| MAZDA | MX5 | 2006 - 2008 (NC) |
| MAZDA | MX5 | 2009 - 2013 (ND) |
| MAZDA | RX8 | 2004 - 2008 (FE) |
| MAZDA | RX8 | 2008 - 2012 (FE) |
| MERCEDES | A CLASS | 2005 - 2007 (W169) |
| MERCEDES | A CLASS | 2007 - 2011 (W169) |
| MERCEDES | A CLASS | 2013 - 2016 (W176) |
| MERCEDES | B CLASS | 2005 - 2007 (W245) |
| MERCEDES | B CLASS | 2007 - 2011 (W245) |
| MERCEDES | C CLASS | 2000 - 2004 (W203) |
| MERCEDES | C CLASS | 2005 - 2008 (W203) |
| MERCEDES | C CLASS | 2008 - 2011 (W204) |
| MERCEDES | C CLASS | 2011 - 2014 (W204) |
| MERCEDES | CLK | 2002 - 2004 (W208) |
| MERCEDES | CLK | 2005 - 2011 (W209) |
| MERCEDES | CLS | 2005 - 2010 (W219) |
| MERCEDES | E CLASS | 2002 - 2007 (W211) |
| MERCEDES | E CLASS | 2008 - 2011 (W212) |
| MERCEDES | G CLASS | 2006 - 2012 (W463) |
| MERCEDES | GL CLASS | 2006 - 2012 (X164) |
| MERCEDES | M CLASS | 2005 - 2011 (W164) |
| MERCEDES | R CLASS | 2006 - 2012 (W251) |
| MERCEDES | S CLASS | 1998 - 2006 (W220) |
| MERCEDES | SL CLASS | 2005 - 2013 (R230) |
| MERCEDES | SLK CLASS | 2004 - 2011 (R171) |
| MERCEDES | SPRINTER | 2007 - 2018 (W906) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2004 - 2007 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2007 - 2015 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2015 - 2019 (W447) |
| MG | MG6 | 2013 - 2018 (1st Generation) |
| MITSUBISHI | ASX | 2010 - 2013 (XA) |
| MITSUBISHI | COLT | 2004 - 2007 (RG) |
| MITSUBISHI | COLT | 2007 - 2011 (RZ) |
| MITSUBISHI | GRANDIS | 2004 - 2011 (BA) |
| MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
| MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
| MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
| MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
| MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
| MITSUBISHI | PAJERO | 2006 - 2015 (NS-NT-NW) |
| MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
| MITSUBISHI | TRITON | 2004 - 2007 (MK) |
| MITSUBISHI | TRITON | 2007 - 2013 (ML) |
| MITSUBISHI | TRITON | 2013 - 2015 (MN) |
| MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
| MITSUBISHI | TRITON | 2019 - 2021 (MR) |
| MITSUBISHI | TRITON | 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | ALTIMA | 2013 - 2016 (L33) |
| NISSAN | CUBE | 1998 - 2016 (Z11 - Z12) |
| NISSAN | ELGRAND | 2005 - 2010 (E51) |
| NISSAN | JUKE | 2013 - 2015 (F15) |
| NISSAN | JUKE | 2016 - 2018 (F15) |
| NISSAN | MICRA | 2003 - 2009 (K12) |
| NISSAN | MICRA | 2010 - 2014 (K13) |
| NISSAN | MICRA | 2015 - 2016 (K13) |
| NISSAN | MURANO | 2005 - 2008 (Z50) |
| NISSAN | MURANO | 2009 - 2011 (Z51) |
| NISSAN | MURANO | 2012 - 2018 (Z51) |
| NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | PATHFINDER | 2005 - 2013 (R51) |
| NISSAN | PATHFINDER | 2013 - 2015 (R52) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | QASHQAI | 2017 - 2019 (J11) |
| NISSAN | QASHQAI | 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | SKYLINE | 2005 - 2007 (V35) |
| NISSAN | SKYLINE | 2009 - 2011 (R35) |
| NISSAN | XTRAIL | 2003 - 2007 (T30) |
| NISSAN | XTRAIL | 2007 - 2013 (T31) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | XTRAIL | 2018 - 2019 (T32) |
| NISSAN | XTRAIL | 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| PEUGEOT | 206 | 2002 - 2010 (No Chassis Code) |
| PEUGEOT | 207 | 2006 - 2011 (A7) |
| PEUGEOT | 208 | 2012 - 2014 (A99) |
| PEUGEOT | 3008 | 2009 - 2015 (T8) |
| PEUGEOT | 307 | 2001 - 2012 (T5-T6-T7) |
| PEUGEOT | 308 | 2007 - 2014 (T7) |
| PEUGEOT | 308 | 2015 - 2016 (T9) |
| PEUGEOT | 4007 | 2009 - 2011 (No Chassis Code) |
| PEUGEOT | 407 | 2004 - 2011 (SERIES 1 - SERIES 2) |
| PEUGEOT | 508 | 2011 - 2014 (No Chassis Code) |
| PEUGEOT | 607 | 2005 - 2011 (No Chassis Code) |
| PEUGEOT | PARTNER | 2002 - 2014 (B9P) |
| PEUGEOT | RCZ | 2010 - 2015 (No Chassis Code) |
| PORSCHE | 911 | 1998 - 2005 (996) |
| PORSCHE | 911 | 2005 - 2012 (997) |
| PORSCHE | 911 | 2011 - 2016 (991) |
| PORSCHE | BOXSTER | 1998 - 2004 (986) |
| PORSCHE | BOXSTER | 2004 - 2012 (987) |
| PORSCHE | BOXSTER | 2012 - 2016 (981) |
| PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
| PORSCHE | CAYENNE | 2013 - 2018 (92A) |
| PORSCHE | CAYMAN | 2005 - 2011 (987C) |
| PORSCHE | CAYMAN | 2012 - 2016 (981) |
| SCANIA TRUCKS | RS70 (Incl R480) | 2004 - 2011 (No Chassis Code) |
| SKODA | FABIA | 2007 - 2015 (5J) |
| SKODA | FABIA | 2015 - 2019 (NJ) |
| SKODA | OCTAVIA | 2004 - 2008 (1U) |
| SKODA | OCTAVIA | 2009 - 2012 (1Z) |
| SKODA | OCTAVIA | 2013 - 2019 (NE - 5E) |
| SKODA | RAPID | 2013 - 2015 (NH) |
| SKODA | ROOMSTER | 2006 - 2011 (5J) |
| SKODA | SUPERB | 2009 - 2015 (3T) |
| SKODA | YETI | 2009 - 2019 (5L) |
| SMART | FOR FOUR | 2004 - 2006 (W454) |
| SMART | FOR TWO | 2008 - 2014 (451) |
| SSANGYONG | ACTYON | 2006 - 2013 (100 Series) |
| SSANGYONG | KORANDO | 2011 - 2012 (C200) |
| SSANGYONG | KORANDO | 2013 - 2015 (C200) |
| SSANGYONG | REXTON | 2006 - 2011 (Y250) |
| SSANGYONG | REXTON | 2011 - 2015 (Y285) |
| SUBARU | BRZ | 2017 - 2020 (POST-FACELIFT) |
| SUBARU | FORESTER | 2007 - 2012 (SH) |
| SUBARU | FORESTER | 2013 - 2014 (SJ) |
| SUBARU | FORESTER | 2015 - 2018 (SJ) |
| SUBARU | FORESTER | 2019 - 2021 (SK) |
| SUBARU | IMPREZA | 2016 - 2018 (GK-GT) |
| SUBARU | IMPREZA (Inc WRX) | 2007 - 2012 (GE-GH-GR-GV) |
| SUBARU | IMPREZA (Inc WRX) | 2012 - 2014 (GP-GJ) |
| SUBARU | IMPREZA (Inc WRX) | 2015 - 2016 (GP-GJ) |
| SUBARU | LEVORG | 2016 - 2018 (V1) |
| SUBARU | LIBERTY (Inc Outback) | 2004 - 2005 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2006 - 2008 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITH NAV |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITHOUT NAV |
| SUBARU | LIBERTY (Inc Outback) | 2015 - 2017 (BN-BS) |
| SUBARU | LIBERTY (Inc Outback) | 2018 - 2020 (BN-BS) |
| SUBARU | WRX (Inc STI) | 2015 - 2018 (VA) |
| SUBARU | XV | 2012 - 2014 (GP) |
| SUBARU | XV | 2015 - 2016 (GP Facelift) |
| SUBARU | XV | 2017 - 2021 (GT) |
| SUZUKI | ALTO | 2009 - 2013 (GF) |
| SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
| SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
| SUZUKI | SWIFT | 2006 - 2010 (RS416) |
| SUZUKI | SWIFT | 2011 - 2016 (FZ) |
| SUZUKI | SWIFT | 2017 - 2020 (AZ) |
| SUZUKI | SX4 (Incl S-Cross) | 2007 - 2011 (GYB - GYC) |
| SUZUKI | SX4 (Incl S-Cross) | 2014 - 2016 (GYA) |
| SUZUKI | VITARA | 2015 - 2016 (LY) |
| TOYOTA | 86 | 2012 - 2017 (PRE-FACELIFT) |
| TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
| TOYOTA | AURION | 2006 - 2011 (XV40 Series) |
| TOYOTA | AURION | 2012 - 2015 (XV50 Series) |
| TOYOTA | AURION | 2015 - 2017 (XV50 Series) |
| TOYOTA | AVENSIS VERSO | 2005 - 2010 (ACM20 - ACM21R Series) |
| TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
| TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
| TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
| TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
| TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
| TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
| TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
| TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
| TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
| TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
| TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
| TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
| TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
| TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
| TOYOTA | LANDCRUISER | 2007 - 2019 (70 Series - 79 Series) |
| TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
| TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
| TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
| TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
| TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
| TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
| TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
| TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
| TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
| TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
| TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
| TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
| VOLKSWAGEN | AMAROK | 2011 - 2015 (2H Series) |
| VOLKSWAGEN | AMAROK | 2015 - 2020 (2H Series) |
| VOLKSWAGEN | BEETLE | 2000 - 2011 (1Y Series) |
| VOLKSWAGEN | BEETLE | 2013 - 2015 (1L Series) |
| VOLKSWAGEN | BEETLE | 2016 - 2017 (A5 Series) |
Specifications
| SKU | C8NECTAV3 |
|---|---|
| Barcode # | 9342270002690 |
| Brand | Canm8 |
| Shipping Weight | 1.5000kg |
More infoMake 4 payments of $54.25 over 8 weeks and get it now!
Calculate Shipping
Description
Selected Part Number: C8NECTAV3
General Product Information
The CANM8 CANNECT AV3 interface is designed to provide a universal solution for installing after-market electronic products to vehicles which feature CAN Bus wiring.
Outputs
| Ignition On | > | 12v (1A max) when the ignition is switched on. |
| Reverse | > | 12v (1A max) when reverse gear is selected. |
| Park Brake | > | 0v (1A max) when the park brake is engaged. |
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
| Flashing Red: Searching for CAN information. |
| Solid Red: CAN Data received but vehicle not yet identified. |
| Solid Green: CAN Data received and vehicle type recognised. |
| Flashing Green: Vehicle speed detected. |
Wiring Harness Details
| Connect via a 5A fuse to a PERMANENT 12v supply. | ||
| Connect to a good chassis GROUND point. | ||
| CAN HI Connection : Vehicle CAN HI wire. | ||
| CAN LO Connection : Vehicle CAN LO wire. | ||
| Ignition On Output : 12v (1A max) when the ignition is switched on. | ||
| Reverse Output : 12v (1A max) when reverse gear is selected. | ||
| Park Brake Output : 0v (1A max) when the park brake is engaged. |
Important Product Compatibility Information
Product Vehicle Applications
This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| ALFA ROMEO | 147 | 2000 - 2010 (937) |
| ALFA ROMEO | 156 | 2001 - 2007 (932) |
| ALFA ROMEO | 159 | 2005 - 2014 (939) |
| ALFA ROMEO | BRERA | 2006 - 2011 (939) |
| ALFA ROMEO | GIULIETTA | 2010 - 2014 (940) |
| ALFA ROMEO | GIULIETTA | 2014 - 2015 (940) |
| ALFA ROMEO | GT | 2004 - 2008 (937) |
| ALFA ROMEO | MITO | 2008 - 2014 (955) |
| AUDI | A1 | 2010 - 2018 (8X) |
| AUDI | A3 (Incl S3) | 2004 - 2013 (8P) |
| AUDI | A3 (Incl S3) | 2012 - 2019 (8V) |
| AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
| AUDI | A4 (Incl S4) | 2009 - 2015 (B8) |
| AUDI | A5 (Incl S5) | 2007 - 2011 (8T3 - 8F7 - 8TA) |
| AUDI | A5 (Incl S5) | 2016 - 2019 (F5) |
| AUDI | A6 (Incl S6) | 2005 - 2011 (4F) |
| AUDI | A6 (Incl S6) | 2011 - 2019 (4G) |
| AUDI | A7 | 2011 - 2018 (4G) |
| AUDI | A8 (Incl S8) | 2004 - 2009 (D3-4E) |
| AUDI | A8 (Incl S8) | 2011 - 2017 (4H) |
| AUDI | Q3 | 2011 - 2018 (8U) |
| AUDI | Q5 | 2009 - 2016 (8R) |
| AUDI | Q5 | 2017 - 2019 (FY) |
| AUDI | Q7 | 2006 - 2015 (4L) |
| AUDI | Q7 | 2015 - 2019 (4M) |
| AUDI | R8 | 2007 - 2015 (42) |
| AUDI | TT | 1999 - 2005 (8N) |
| AUDI | TT | 2006 - 2014 (8J) |
| AUDI | TT | 2014 - 2019 (FV-8S) |
| BMW | 1 SERIES (Incl M1) | 2004 - 2013 (E81-E82-E87-E88) |
| BMW | 2 SERIES | 2015 - 2019 (F25) |
| BMW | 3 SERIES (Incl M3) | 2005 - 2014 (E90) |
| BMW | 4 SERIES | 2013 - 2019 (F32-F33) |
| BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
| BMW | 6 SERIES | 2004 - 2011 (E63) |
| BMW | 6 SERIES | 2011 - 2019 (F12-F13) |
| BMW | 7 SERIES | 2001 - 2008 (E65-E66-E67-E68) |
| BMW | 7 SERIES | 2008 - 2013 (F01-F02) |
| BMW | I3 | 2014 - 2019 (IO1) |
| BMW | X1 | 2009 - 2015 (E84) |
| BMW | X2 | 2016 - 2019 (F39) |
| BMW | X3 | 2003 - 2010 (E83) |
| BMW | X3 | 2011 - 2019 (F25) |
| BMW | X4 | 2014 - 2018 (F26) |
| BMW | X4 | 2018 - 2019 (G02) |
| BMW | X5 | 2000 - 2005 (E53) |
| BMW | X5 | 2006 - 2011 (E70) |
| BMW | X5 | 2013 - 2019 (F15) |
| BMW | X6 | 2008 - 2013 (E71) |
| BMW | Z4 | 2003 - 2008 (E85-E86) |
| BMW | Z4 | 2009 - 2016 (E89) |
| CADILLAC | ESCALADE | 2007 - 2014 (THIRD GEN) |
| CHEVROLET | CAMARO | 2010 - 2015 (5TH GEN) |
| CHRYSLER | 300C | 2005 - 2008 (FIRST GEN) |
| CHRYSLER | 300C | 2009 - 2011 (SECOND GEN) |
| CHRYSLER | 300C | 2011 - 2018 (THIRD GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2008 - 2014 (5TH GEN) |
| CITROEN | BERLINGO | 2003 - 2007 (FIRST GEN) |
| CITROEN | BERLINGO | 2008 - 2015 (SECOND GEN) |
| CITROEN | C2 | 2006 - 2008 (FIRST GEN) |
| CITROEN | C3 | 2002 - 2009 (FIRST GEN) |
| CITROEN | C3 | 2010 - 2016 (SECOND GEN) |
| CITROEN | C4 | 2004 - 2010 (FIRST GEN) |
| CITROEN | C4 | 2011 - 2018 (SECOND GEN) |
| CITROEN | C5 | 2004 - 2007 (DC-DE) |
| CITROEN | C5 | 2008 - 2013 (RD-TD) |
| CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
| DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
| DODGE | CALIBER | 2009 - 2012 (SECOND GEN) |
| DODGE | CHALLENGER R/T | 2008 - 2014 (THIRD GEN) |
| DODGE | JOURNEY | 2008 - 2011 (FIRST GEN) |
| DODGE | JOURNEY | 2012 - 2015 (SECOND GEN) |
| DODGE | RAM | 2009 - 2012 (4TH GEN) |
| DODGE | RAM | 2013 - 2020 (4TH GEN) |
| FIAT | 500 | 2008 - 2015 (SERIES 1 - SERIES 3) |
| FIAT | 500 | 2015 - 2018 (SERIES 5) |
| FIAT | DUCATO | 2006 - 2012 (THIRD GEN) |
| FIAT | DUCATO | 2012 - 2014 (THIRD GEN) |
| FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
| FIAT | FREEMONT | 2012 - 2015 (FIRST GEN) |
| FIAT | PUNTO | 2005 - 2013 (THIRD GEN) |
| FIAT | SCUDO | 2007 - 2011 (SECOND GEN) |
| FIAT | SCUDO | 2012 - 2013 (THIRD GEN) |
| FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
| FORD | ESCAPE | 2016 - 2018 (ZG) |
| FORD | F SERIES | 2005 - 2008 (11th Gen) |
| FORD | F SERIES | 2009 - 2014 (12th Gen) |
| FORD | F SERIES | 2015 - 2019 (13th Gen) |
| FORD | FIESTA | 2006 - 2008 (WQ) |
| FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
| FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
| FORD | FOCUS (Incl XR5) | 2008 - 2011 (LV) |
| FORD | FOCUS (Incl XR5) | 2012 - 2015 (LW) |
| FORD | FOCUS (Incl XR5) | 2016 - 2019 (LW) |
| FORD | KA | 1997 - 2011 (FIRST GEN) |
| FORD | KUGA | 2011 - 2013 (1ST GEN) |
| FORD | KUGA | 2013 - 2015 (2ND GEN) |
| FORD | MONDEO | 2007 - 2014 (MB - MC) |
| FORD | MONDEO | 2015 - 2019 (MD) |
| FORD | MUSTANG | 2005 - 2011 (5TH GEN) |
| FORD | MUSTANG | 2010 - 2014 (5TH GEN) |
| FORD | MUSTANG | 2015 - 2017 (6TH GEN) |
| FORD | RANGER | 2011 - 2015 (PX) |
| FORD | RANGER | 2015 - 2019 (PX2-PX3) |
| FORD | SUPER DUTY (F SERIES) | 2008 - 2010 (2ND GEN) |
| FORD | SUPER DUTY (F SERIES) | 2011 - 2016 (3RD GEN) |
| FORD | SUPER DUTY (F SERIES) | 2017 - 2019 (4TH GEN) |
| FORD | TRANSIT | 2001 - 2006 (VF-VG-VH-VJ) |
| FORD | TRANSIT | 2007 - 2014 (VM) |
| FORD | TRANSIT | 2015 - 2017 (VO) |
| FORD | TRANSIT CUSTOM | 2013 - 2016 (VN-EURO 5) |
| FORD | TRANSIT CUSTOM | 2016 - 2017 (VN-EURO 6) |
| FORD | TRANSIT CUSTOM | 2018 - 2019 (VN) |
| GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
| HOLDEN | BARINA | 2012 - 2016 (TM) |
| HOLDEN | BARINA | 2017 - 2018 (TM) |
| HOLDEN | BARINA SPARK | 2010 - 2016 (MJ) |
| HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
| HOLDEN | COMMODORE | 2013 - 2015 (VF) |
| HOLDEN | CRUZE | 2008 - 2016 (J300) |
| HOLDEN | EPICA | 2006 - 2011 (EP) |
| HOLDEN | MALIBU | 2013 - 2016 (EM) |
| HOLDEN | SPARK | 2016 - 2017 (M400) |
| HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
| HONDA | ACCORD | 2013 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC HATCH | 2016 - 2018 (10TH GEN) |
| HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2016 - 2018 (10TH GEN) |
| HONDA | CRV | 2007 - 2011 (RE) |
| HONDA | CRV | 2012 - 2015 (RM) |
| HONDA | CRV | 2015 - 2016 (RM) |
| HONDA | CRV | 2017 - 2018 (RW) |
| HONDA | CRZ | 2010 - 2014 (ZF) |
| HONDA | INSIGHT | 2009 - 2013 (ZE) |
| HONDA | JAZZ | 2008 - 2013 (GE) |
| HONDA | JAZZ | 2014 - 2016 (GF) |
| HONDA | JAZZ | 2017 - 2019 (GF) |
| HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
| HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
| HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
| HUMMER | H2 | 2008 - 2011 (H2) |
| HYUNDAI | ACCENT | 2006 - 2008 (MC) |
| HYUNDAI | i20 | 2010 - 2012 (PB) |
| HYUNDAI | i20 | 2012 - 2015 (PB) |
| HYUNDAI | i30 | 2007 - 2011 (FD) |
| HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
| HYUNDAI | i30 | 2017 - 2021 (PD) |
| HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
| HYUNDAI | ILOAD (Incl IMAX) | 2008 - 2016 (TQ) |
| HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
| HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
| HYUNDAI | ix35 | 2010 - 2013 (LM) |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
| HYUNDAI | KONA | 2017 - 2018 (OS - OS2) |
| HYUNDAI | SANTA FE | 2007 - 2009 (CM) |
| HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
| HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
| HYUNDAI | SONATA | 2002 - 2005 (EF) |
| HYUNDAI | SONATA | 2006 - 2008 (NF) |
| HYUNDAI | SONATA | 2009 - 2011 (YF) |
| HYUNDAI | SONATA | 2014 - 2016 (LF) |
| HYUNDAI | TUCSON | 2005 - 2010 (JM) |
| HYUNDAI | TUCSON | 2015 - 2018 (TL) |
| HYUNDAI | TUCSON | 2018 - 2019 (TL) |
| HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
| ISUZU | DMAX | 2009 - 2011 (RA - RC) |
| ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
| ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
| IVECO | DAILY | 2007 - 2014 (5TH GEN) |
| IVECO | DAILY | 2015 - 2017 (6TH GEN) |
| IVECO | DAILY | 2018 - 2019 (6TH GEN) |
| JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
| JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
| JAGUAR | XJ8 | 2003 - 2008 (No Chassis Code) |
| JEEP | CHEROKEE | 2001 - 2007 (KJ) |
| JEEP | CHEROKEE | 2007 - 2012 (KK) |
| JEEP | CHEROKEE | 2014 - 2018 (KL) |
| JEEP | COMMANDER | 2005 - 2008 (XK) |
| JEEP | COMMANDER | 2008 - 2010 (XK) |
| JEEP | COMPASS | 2007 - 2009 (MK) |
| JEEP | COMPASS | 2009 - 2017 (MK) |
| JEEP | COMPASS | 2017 - 2018 (M6) |
| JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2008 - 2011 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2012 - 2013 (WK2) |
| JEEP | GRAND CHEROKEE | 2014 - 2020 (WK2) |
| JEEP | PATRIOT | 2007 - 2009 (MK) |
| JEEP | PATRIOT | 2010 - 2016 (MK) |
| JEEP | RENEGADE | 2015 - 2016 (BU-520) |
| JEEP | WRANGLER | 2007 - 2018 (JK) |
| KIA | CARNIVAL | 2015 - 2017 (YP) |
| KIA | CARNIVAL | 2018 - 2019 (YP) |
| KIA | CARNIVAL (Incl Grand) | 2006 - 2015 (VQ) |
| KIA | CERATO | 2004 - 2009 (LD) |
| KIA | CERATO | 2010 - 2012 (TD) |
| KIA | CERATO | 2013 - 2018 (YD) |
| KIA | MAGENTIS | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2010 - 2013 (TF1) |
| KIA | OPTIMA | 2013 - 2015 (TF2) |
| KIA | OPTIMA | 2016 - 2017 (JF) |
| KIA | PICANTO | 2016 - 2017 (TA) |
| KIA | PICANTO | 2017 - 2018 (JA) |
| KIA | PRO CEED | 2014 - 2015 (JD) |
| KIA | RIO | 2006 - 2009 (JB) |
| KIA | RIO | 2010 - 2014 (UB) |
| KIA | RIO | 2014 - 2017 (UB) |
| KIA | SORENTO | 2007 - 2008 (BL) |
| KIA | SORENTO | 2009 - 2012 (XM) |
| KIA | SORENTO | 2013 - 2015 (XM) |
| KIA | SORENTO | 2015 - 2018 (UM) |
| KIA | SORENTO EX | 2003 - 2009 (BL) |
| KIA | SORENTO LX | 2007 - 2009 (BL) |
| KIA | SOUL | 2009 - 2011 (AM) |
| KIA | SOUL | 2011 - 2013 (AM) |
| KIA | SOUL | 2014 - 2018 (PS) |
| KIA | SPORTAGE | 2005 - 2009 (KM) |
| KIA | SPORTAGE | 2010 - 2015 (SL) |
| KIA | SPORTAGE | 2016 - 2018 (QL) |
| KIA | SPORTAGE | 2018 - 2019 (QL) |
| LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
| LAND ROVER | DEFENDER | 2008 - 2015 (No Chassis Code) |
| LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
| LAND ROVER | DISCOVERY IV | 2010 - 2016 (L319) |
| LAND ROVER | EVOQUE | 2011 - 2013 (L538) |
| LAND ROVER | FREELANDER | 1997 - 2003 (L314) |
| LAND ROVER | FREELANDER | 2004 - 2006 (L314) |
| LAND ROVER | FREELANDER II | 2007 - 2011 (L359) |
| LAND ROVER | FREELANDER II | 2012 - 2014 (L359) |
| LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
| LAND ROVER | RANGE ROVER SPORT | 2005 - 2010 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2010 - 2013 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2013 - 2015 (L494) |
| LEXUS | CT | 2011 - 2013 (C10) |
| LEXUS | IS | 2006 - 2015 (XE20) |
| LEXUS | IS | 2016 - 2018 (XE30) |
| LEXUS | RX | 2003 - 2008 (XU30) |
| LEXUS | RX | 2010 - 2015 (AL10) |
| LEXUS | RX | 2016 - 2018 (AL20) |
| MAZDA | 2 | 2003 - 2007 (DY) |
| MAZDA | 2 | 2007 - 2015 (DE) |
| MAZDA | 2 | 2015 - 2016 (DJ) |
| MAZDA | 3 | 2004 - 2009 (BK) |
| MAZDA | 3 | 2009 - 2013 (BL) |
| MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
| MAZDA | 3 | 2016 - 2018 (BN) |
| MAZDA | 6 | 2003 - 2005 (GG) |
| MAZDA | 6 | 2005 - 2008 (GG) |
| MAZDA | 6 | 2008 - 2010 (GH) |
| MAZDA | 6 | 2010 - 2012 (GH) |
| MAZDA | 6 | 2013 - 2015 (GJ) |
| MAZDA | BT-50 | 2007 - 2011 (B Series) |
| MAZDA | BT-50 | 2012 - 2015 (B32Q) |
| MAZDA | BT-50 | 2015 - 2019 (UR) |
| MAZDA | CX5 | 2012 - 2015 (KE) |
| MAZDA | CX5 | 2015 - 2017 (KE) |
| MAZDA | CX5 | 2017 - 2021 (KF) |
| MAZDA | CX7 | 2006 - 2010 (ER) |
| MAZDA | CX7 | 2010 - 2011 (ER) |
| MAZDA | CX9 | 2006 - 2011 (TB) |
| MAZDA | CX9 | 2012 - 2015 (TB) |
| MAZDA | MPV | 2000 - 2006 (LW) |
| MAZDA | MX5 | 2006 - 2008 (NC) |
| MAZDA | MX5 | 2009 - 2013 (ND) |
| MAZDA | RX8 | 2004 - 2008 (FE) |
| MAZDA | RX8 | 2008 - 2012 (FE) |
| MERCEDES | A CLASS | 2005 - 2007 (W169) |
| MERCEDES | A CLASS | 2007 - 2011 (W169) |
| MERCEDES | A CLASS | 2013 - 2016 (W176) |
| MERCEDES | B CLASS | 2005 - 2007 (W245) |
| MERCEDES | B CLASS | 2007 - 2011 (W245) |
| MERCEDES | C CLASS | 2000 - 2004 (W203) |
| MERCEDES | C CLASS | 2005 - 2008 (W203) |
| MERCEDES | C CLASS | 2008 - 2011 (W204) |
| MERCEDES | C CLASS | 2011 - 2014 (W204) |
| MERCEDES | CLK | 2002 - 2004 (W208) |
| MERCEDES | CLK | 2005 - 2011 (W209) |
| MERCEDES | CLS | 2005 - 2010 (W219) |
| MERCEDES | E CLASS | 2002 - 2007 (W211) |
| MERCEDES | E CLASS | 2008 - 2011 (W212) |
| MERCEDES | G CLASS | 2006 - 2012 (W463) |
| MERCEDES | GL CLASS | 2006 - 2012 (X164) |
| MERCEDES | M CLASS | 2005 - 2011 (W164) |
| MERCEDES | R CLASS | 2006 - 2012 (W251) |
| MERCEDES | S CLASS | 1998 - 2006 (W220) |
| MERCEDES | SL CLASS | 2005 - 2013 (R230) |
| MERCEDES | SLK CLASS | 2004 - 2011 (R171) |
| MERCEDES | SPRINTER | 2007 - 2018 (W906) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2004 - 2007 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2007 - 2015 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2015 - 2019 (W447) |
| MG | MG6 | 2013 - 2018 (1st Generation) |
| MITSUBISHI | ASX | 2010 - 2013 (XA) |
| MITSUBISHI | COLT | 2004 - 2007 (RG) |
| MITSUBISHI | COLT | 2007 - 2011 (RZ) |
| MITSUBISHI | GRANDIS | 2004 - 2011 (BA) |
| MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
| MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
| MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
| MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
| MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
| MITSUBISHI | PAJERO | 2006 - 2015 (NS-NT-NW) |
| MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
| MITSUBISHI | TRITON | 2004 - 2007 (MK) |
| MITSUBISHI | TRITON | 2007 - 2013 (ML) |
| MITSUBISHI | TRITON | 2013 - 2015 (MN) |
| MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
| MITSUBISHI | TRITON | 2019 - 2021 (MR) |
| MITSUBISHI | TRITON | 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | ALTIMA | 2013 - 2016 (L33) |
| NISSAN | CUBE | 1998 - 2016 (Z11 - Z12) |
| NISSAN | ELGRAND | 2005 - 2010 (E51) |
| NISSAN | JUKE | 2013 - 2015 (F15) |
| NISSAN | JUKE | 2016 - 2018 (F15) |
| NISSAN | MICRA | 2003 - 2009 (K12) |
| NISSAN | MICRA | 2010 - 2014 (K13) |
| NISSAN | MICRA | 2015 - 2016 (K13) |
| NISSAN | MURANO | 2005 - 2008 (Z50) |
| NISSAN | MURANO | 2009 - 2011 (Z51) |
| NISSAN | MURANO | 2012 - 2018 (Z51) |
| NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | PATHFINDER | 2005 - 2013 (R51) |
| NISSAN | PATHFINDER | 2013 - 2015 (R52) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | QASHQAI | 2017 - 2019 (J11) |
| NISSAN | QASHQAI | 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | SKYLINE | 2005 - 2007 (V35) |
| NISSAN | SKYLINE | 2009 - 2011 (R35) |
| NISSAN | XTRAIL | 2003 - 2007 (T30) |
| NISSAN | XTRAIL | 2007 - 2013 (T31) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | XTRAIL | 2018 - 2019 (T32) |
| NISSAN | XTRAIL | 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| PEUGEOT | 206 | 2002 - 2010 (No Chassis Code) |
| PEUGEOT | 207 | 2006 - 2011 (A7) |
| PEUGEOT | 208 | 2012 - 2014 (A99) |
| PEUGEOT | 3008 | 2009 - 2015 (T8) |
| PEUGEOT | 307 | 2001 - 2012 (T5-T6-T7) |
| PEUGEOT | 308 | 2007 - 2014 (T7) |
| PEUGEOT | 308 | 2015 - 2016 (T9) |
| PEUGEOT | 4007 | 2009 - 2011 (No Chassis Code) |
| PEUGEOT | 407 | 2004 - 2011 (SERIES 1 - SERIES 2) |
| PEUGEOT | 508 | 2011 - 2014 (No Chassis Code) |
| PEUGEOT | 607 | 2005 - 2011 (No Chassis Code) |
| PEUGEOT | PARTNER | 2002 - 2014 (B9P) |
| PEUGEOT | RCZ | 2010 - 2015 (No Chassis Code) |
| PORSCHE | 911 | 1998 - 2005 (996) |
| PORSCHE | 911 | 2005 - 2012 (997) |
| PORSCHE | 911 | 2011 - 2016 (991) |
| PORSCHE | BOXSTER | 1998 - 2004 (986) |
| PORSCHE | BOXSTER | 2004 - 2012 (987) |
| PORSCHE | BOXSTER | 2012 - 2016 (981) |
| PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
| PORSCHE | CAYENNE | 2013 - 2018 (92A) |
| PORSCHE | CAYMAN | 2005 - 2011 (987C) |
| PORSCHE | CAYMAN | 2012 - 2016 (981) |
| SCANIA TRUCKS | RS70 (Incl R480) | 2004 - 2011 (No Chassis Code) |
| SKODA | FABIA | 2007 - 2015 (5J) |
| SKODA | FABIA | 2015 - 2019 (NJ) |
| SKODA | OCTAVIA | 2004 - 2008 (1U) |
| SKODA | OCTAVIA | 2009 - 2012 (1Z) |
| SKODA | OCTAVIA | 2013 - 2019 (NE - 5E) |
| SKODA | RAPID | 2013 - 2015 (NH) |
| SKODA | ROOMSTER | 2006 - 2011 (5J) |
| SKODA | SUPERB | 2009 - 2015 (3T) |
| SKODA | YETI | 2009 - 2019 (5L) |
| SMART | FOR FOUR | 2004 - 2006 (W454) |
| SMART | FOR TWO | 2008 - 2014 (451) |
| SSANGYONG | ACTYON | 2006 - 2013 (100 Series) |
| SSANGYONG | KORANDO | 2011 - 2012 (C200) |
| SSANGYONG | KORANDO | 2013 - 2015 (C200) |
| SSANGYONG | REXTON | 2006 - 2011 (Y250) |
| SSANGYONG | REXTON | 2011 - 2015 (Y285) |
| SUBARU | BRZ | 2017 - 2020 (POST-FACELIFT) |
| SUBARU | FORESTER | 2007 - 2012 (SH) |
| SUBARU | FORESTER | 2013 - 2014 (SJ) |
| SUBARU | FORESTER | 2015 - 2018 (SJ) |
| SUBARU | FORESTER | 2019 - 2021 (SK) |
| SUBARU | IMPREZA | 2016 - 2018 (GK-GT) |
| SUBARU | IMPREZA (Inc WRX) | 2007 - 2012 (GE-GH-GR-GV) |
| SUBARU | IMPREZA (Inc WRX) | 2012 - 2014 (GP-GJ) |
| SUBARU | IMPREZA (Inc WRX) | 2015 - 2016 (GP-GJ) |
| SUBARU | LEVORG | 2016 - 2018 (V1) |
| SUBARU | LIBERTY (Inc Outback) | 2004 - 2005 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2006 - 2008 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITH NAV |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITHOUT NAV |
| SUBARU | LIBERTY (Inc Outback) | 2015 - 2017 (BN-BS) |
| SUBARU | LIBERTY (Inc Outback) | 2018 - 2020 (BN-BS) |
| SUBARU | WRX (Inc STI) | 2015 - 2018 (VA) |
| SUBARU | XV | 2012 - 2014 (GP) |
| SUBARU | XV | 2015 - 2016 (GP Facelift) |
| SUBARU | XV | 2017 - 2021 (GT) |
| SUZUKI | ALTO | 2009 - 2013 (GF) |
| SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
| SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
| SUZUKI | SWIFT | 2006 - 2010 (RS416) |
| SUZUKI | SWIFT | 2011 - 2016 (FZ) |
| SUZUKI | SWIFT | 2017 - 2020 (AZ) |
| SUZUKI | SX4 (Incl S-Cross) | 2007 - 2011 (GYB - GYC) |
| SUZUKI | SX4 (Incl S-Cross) | 2014 - 2016 (GYA) |
| SUZUKI | VITARA | 2015 - 2016 (LY) |
| TOYOTA | 86 | 2012 - 2017 (PRE-FACELIFT) |
| TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
| TOYOTA | AURION | 2006 - 2011 (XV40 Series) |
| TOYOTA | AURION | 2012 - 2015 (XV50 Series) |
| TOYOTA | AURION | 2015 - 2017 (XV50 Series) |
| TOYOTA | AVENSIS VERSO | 2005 - 2010 (ACM20 - ACM21R Series) |
| TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
| TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
| TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
| TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
| TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
| TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
| TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
| TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
| TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
| TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
| TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
| TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
| TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
| TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
| TOYOTA | LANDCRUISER | 2007 - 2019 (70 Series - 79 Series) |
| TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
| TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
| TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
| TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
| TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
| TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
| TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
| TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
| TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
| TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
| TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
| TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
| VOLKSWAGEN | AMAROK | 2011 - 2015 (2H Series) |
| VOLKSWAGEN | AMAROK | 2015 - 2020 (2H Series) |
| VOLKSWAGEN | BEETLE | 2000 - 2011 (1Y Series) |
| VOLKSWAGEN | BEETLE | 2013 - 2015 (1L Series) |
| VOLKSWAGEN | BEETLE | 2016 - 2017 (A5 Series) |
Specifications
| SKU | C8NECTAV3 |
|---|---|
| Barcode # | 9342270002690 |
| Brand | Canm8 |
| Shipping Weight | 1.5000kg |
