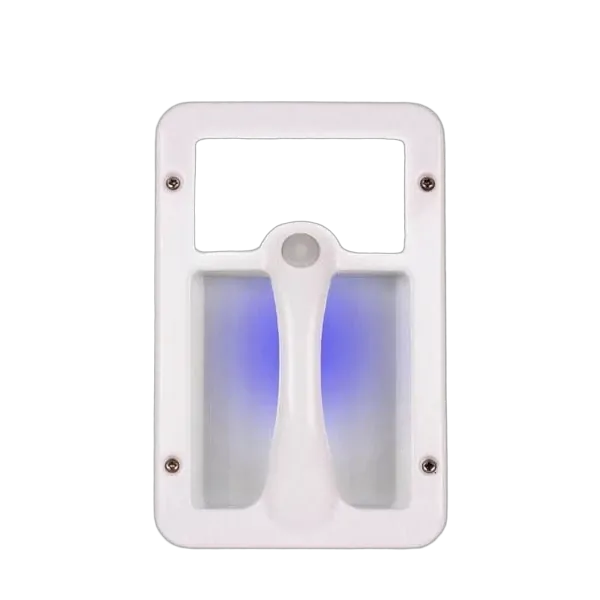

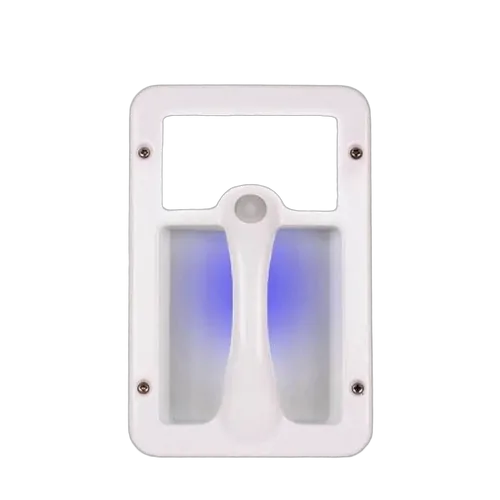

Features Stylish ergonomic handle design for easy grip that is salt water & UV protected. Includes 42 LED cool white illumination light, soft blue LED night light, glow in the dark switch and optional output to activate a step light. Available in 3 finishes; direct replacement for Bargman style Handle Lights.NOTE - When installing, do not connect the white wire unless it is being connected to a step light. This wire is NEGATIVE switched, meaning it is connected to one side of a light while the other side of the light requires a constant Positive (+) wire connection.
Features
-
Press switch to turn the Blue night lighton.
-
Press switch again to activate mainwhite LED (this will also activate theoptional Step Light if connected)
-
Press switch again to turn both lights off
-
Optional Press & hold the switch whenthe blue night light is on to turn it offwithout turning on the main White Light.
-
Stylish ergonomic handle design for easy grip.
-
Salt water and UV protected
-
Convenient 42 LED Cool WhiteIllumination light.
-
Soft Blue Night Light.
-
Glow in the dark switch cover for easylocation of the handle at night.
-
Switched 12V output for an optional step light (not supplied).
Specifications
-
Dimensions: 144.5mm(l) x 46mm (h) x 222mm (w)
-
12V DC Operation
-
Wattage rating: 3.5W
-
Wiring Colours: Red (+) 12V, Black (-) 12V,
-
White Switched (-) 12V for Step Light output.
SKU | 041480-A |
---|---|
Barcode # | 9339051003113 |
Brand | Camec |
Shipping Weight | 2.0000kg |
