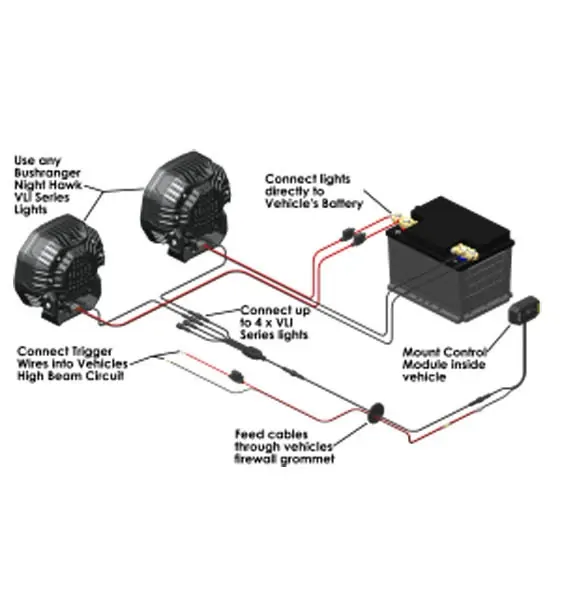

If you thought the smart electronics were already doing enough, Bushranger has pushed them even further by developing the first dedicated auxiliary light wiring system to incorporate relay free switching and brightness control functionality. What does this mean? Simpler wiring, easier installation, more user control and greater reliability over the traditional plug and play wiring loom. The commonly used automotive 12V relay is removed entirely and replaced with modern transistor switching, which is built into the light and the control module. Each light is powered directly from the battery, rather than through a relay, meaning there are no power restrictions for the wiring system, which is a common limitation with traditional relay-based wiring looms. Up to 4 x Bushranger Night Hawk VLI Series LED lights can be controlled by 1 wiring system and any combination of models/sizes can be used.

The brightness control function allows the user to adjust the brightness of all lights on the system with 7 different light intensity settings giving complete control to match the driving conditions. In certain conditions, vision can be greatly enhanced by reducing the intensity of light projected, for example, dense bush tracks, hilly terrain or even some highway driving where an excess of light can lead to intense reflections and eye strain…. now you can dial these high intensity lights back to a more comfortable level. Use a second wiring system as a work/camping / reverse light setup and control the intensity of the lit area. You have complete control like never before.

Product features:

  • Plug & Play Connectors: The wiring system uses control leads with waterproof plugs which quickly and easily join together to allow plenty of flexibility when routing from the control module to the VLI lights.
  • Soft Start Programming: The soft start feature programmed into the control module gradually increases the light intensity over the first second of operation to reduce eye strain and flash blindness that commonly occurs when switching into high beam mode with high intensity LED lights fitted. It also extends the life of the electronics by reducing the sudden shock load that occurs when high output LED’s change instantly from off to on.
  • PWM Brightness Control: The control module uses a Pulse Width Modulation (PWM) signal to control the brightness of all VLI series lights connected to the system. It allows the option of 7 x brightness settings which can be quickly changed at the turn of a dial to suit the conditions

Product specifications:

  • Modern, electronically switched wiring system offers a simpler, more reliable and smarter alternative to regular relay-based wiring harnesses.
  • ‘Plug & Play’ modular design provides versatility to suit any vehicle and reduces installation time compared to traditional wiring harness installs.
  • Works with all Bushranger Night Hawk VLI Series Lights with no limitation on power rating of each light.
  • Wiring system, as supplied, controls up to 2 x lights. Capacity to control up to 4 x VLI Series lights simultaneously with the use of additional control leads (sold separately).
  • PWM brightness control offers 7 x brightness settings at the turn of a dial.
  • Soft Start Programming reduces eye fatigue by ramping up the brightness within the first second of operation.
  • Automatic Polarity Detection simplifies connection into the high beam circuit and works on positive and negatively switched vehicles.
  • Plug & Play headlight adaptors, fuse taps and additional control leads available separately.

Technical:

  • Voltage Range: 10 – 30V DC
  • Standby Current Draw: 20mA
  • Light Capacity (as supplied): Connect and control up to 2 x VLI Series lights simultaneously
  • Light Capacity (max): Connect and control up to 4 x VLI Series lights simultaneously
  • Brightness Control: 7 x brightness positions + OFF position
  • Trigger Wire Connections: 4mm Bullet connectors
  • Compliance: CE, UNECE R10

Kit contents:

  • 1 x Brightness Control Module with Mounting Cradle
  • 1 x Control Module Adaptor
  • 1 x Trigger Wire (4m) with Mini Blade Fuse
  • 1 x Control Lead (3m)
  • 2 x Control Leads (1.5m)
  • 1 x 4-way Distribution Lead
  • 1 x Control Module Sticker
  • 1 x 3M Adhesive Pad
  • 2 x Wire Taps
  • 1 x Spare Mini Blade Fuse
  • 2 x Mounting Screws
  • 5 x Cable Ties
  • 1 x Fitting Instructions
SKU NHW20VLI
Barcode # 9322046210924
Brand Bushranger 4x4 Gear
Shipping Weight 0.5000kg

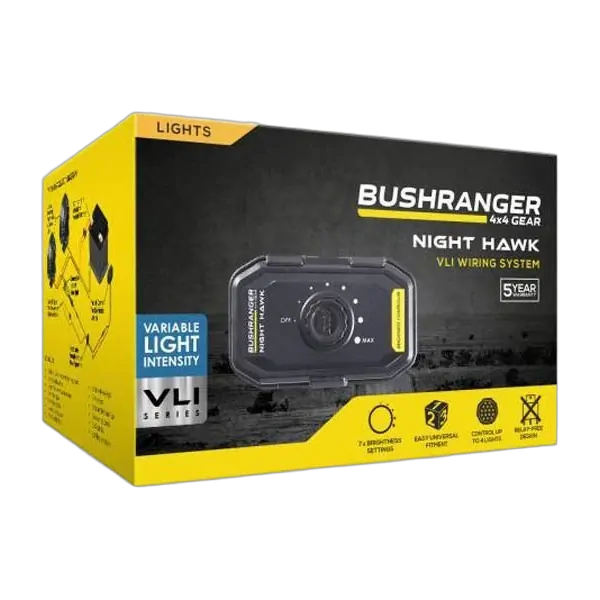

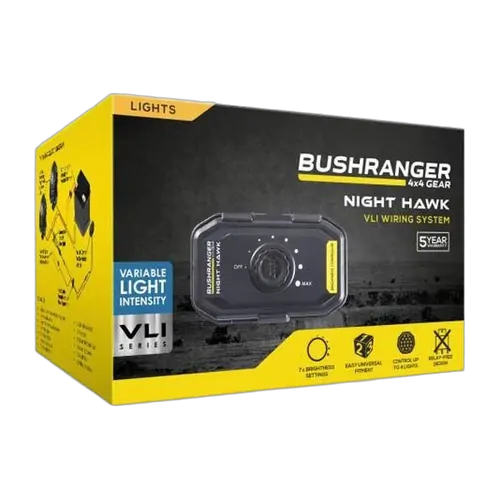

Bushranger Night Hawk VLI Series Wiring System

SKU: NHW20VLI
In Stock
In stock
Sale price
$110.00
