*Sold in Pairs

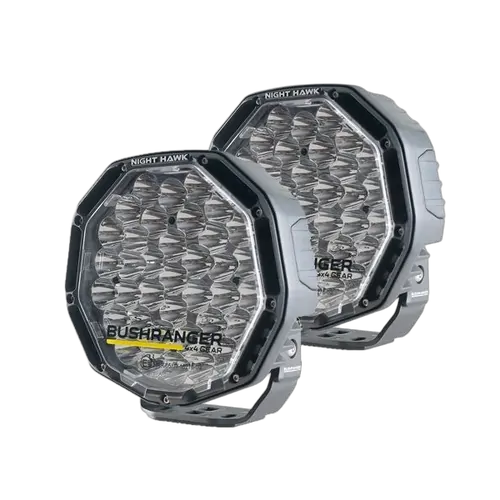

Bushranger® Night Hawk 9” VLI Series LED Driving Lights have been developed from the ground up by a team of engineers to offer a truly unique design which takes performance, looks and usability to a whole new level.

The bold, modern aesthetic incorporates clever cooling ducts which channel cool air directly over the heatsink to greatly increase the heat dissipation of the LED’s. The Advanced Temperature Control System takes advantage of the superior cooling design to run the LED’s at their maximum potential by monitoring and adjusting the output according to the environment.

These lights are so bright, they have also incorporated a brightness control function, which allows complete control of the light intensity in conditions where too much light can be detrimental to clear vision. The brightness is controlled by the pioneering, relay-free VLI Series Wiring System, which is the first of its kind, and leads the way with simpler wiring, easier installation, more user control and greater reliability over traditional systems.

Each light is supplied with two protective covers which allow the user to change the beam pattern quickly and easily. With the spot protective cover fitted, the light projects a clean, focused spot beam pattern which reaches extreme distance; great for highway driving. Clip on the flood protective cover and the light changes significantly to a wide, flood beam pattern which illuminates all the surroundings for excellent short to medium distance vision.

Bushranger® Night Hawk lights are engineered tough to withstand the rugged outdoor terrain and harsh climate experienced down under. They are backed by a 5 year warranty and a 40+ year history of supplying quality engineered 4×4 products to the Australian market.

Product features:

• DURABLE EXTERIOR: Hard coated polycarbonate lens offers long term scratch resistance ensuring maximum optical efficiency for years to come. UV stable AkzoNobel powder coat, polycarbonate lens and covers ensure long term durability.
• BUILT TOUGH: Pressure die-cast aluminium housing and strong, 4mm thick steel bracket will handle even the toughest tracks.
• HIGH OUTPUT OSRAM LED’S: 37 genuine, high output OSRAM LED’s for unmatched performance.175W and 10,800 effective lumens per light.
• MODERN ELECTRONICS DESIGN: Built in Transistor switching simplifies wiring installation by removing the need for traditional 12V relays. PWM dimming capability for brightness control at the turn of a dial.(Wiring system sold separately)
• ACTIVE TEMPERATURE CONTROL SYSTEM: Intelligent on-board monitoring of the LED temperatures, combined with the superior cooling design allows for maximum output in all conditions.
• SUPERIOR COOLING DESIGN: Large air intakes channel cool air over the heatsink for unmatched cooling efficiency, allowing for the use of higher-powered LED’s.

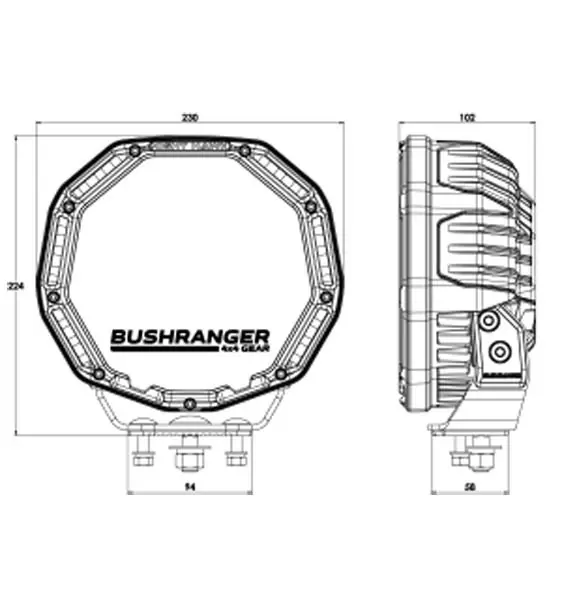

• VERSATILE INSTALLATION: Unique shape and low-profile design allows for diverse fitments where regular 9” round lights may not suit.
• CHANGEABLE BEAM PATTERN: Clip on/clip off protective covers allow for quick changes between beam patterns.1 x Spot, 1 x Flood included.

Product Specifications:

• Modern, electronically switched wiring system offers a simpler, more reliable and smarter alternative to regular relay-based wiring harnesses.
• ‘Plug & Play’ modular design provides versatility to suit any vehicle and reduces installation time compared to traditional wiring harness installs.
• Works with all Bushranger Night Hawk VLI Series Lights with no limitation on power rating of each light.
• Wiring system, as supplied, controls up to 2 x lights. Capacity to control up to 4 x VLI Series lights simultaneously with the use of additional control leads (sold separately).
• PWM brightness control offers 7 x brightness settings at the turn of a dial.
• Soft Start Programming reduces eye fatigue by ramping up the brightness within the first second of operation.
• Automatic Polarity Detection simplifies connection into the high beam circuit and works on positive and negatively switched vehicles.
• Plug & Play headlight adaptors, fuse taps and additional control leads available separately.

Techincal:

• Power: 175W
• Current Draw: 12.2A @ 14.4V
• Voltage Range: 10 – 30VDC
• LED Type: 37 x Genuine OSRAM LED’s
• Luminous Flux: 10,800 lumens (effective)
• Colour Temperature: 5700K
• Power Plug: Deutsch DTP
• Control Plug: 4 pin custom (use with VLI Series Wiring System, sold separately)
• Weight: 3.1kg
• Compliance: CE, UNECE R10, IP67, IP69K, ROHS

Kit Contents:

• 2 x Driving Lights
• 2 x Spot Beam Covers
• 2 x Flood Beam Covers
• 2 x 2.5m Power Lead with Fuse
• 2 x Stainless Steel Mounting Hardware Kits
• (VLI Series Wiring System sold separately.)
