DESCRIPTION

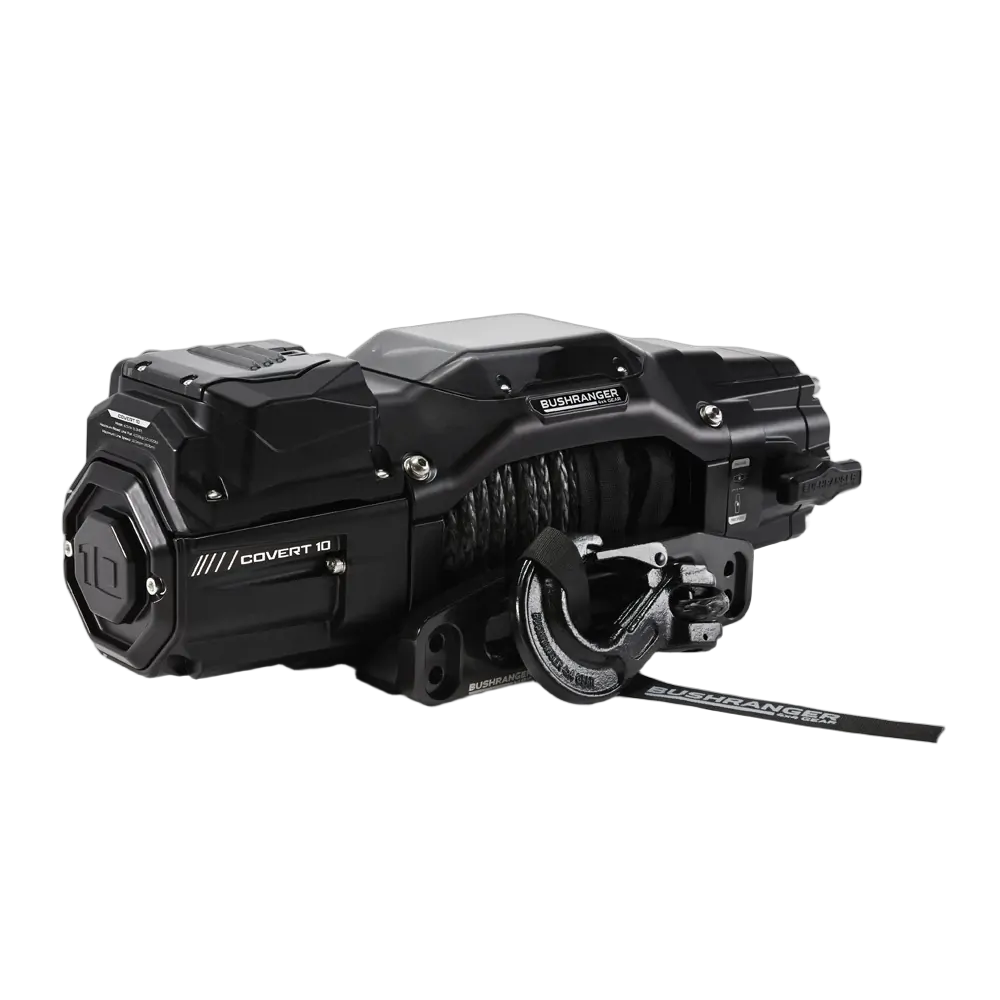

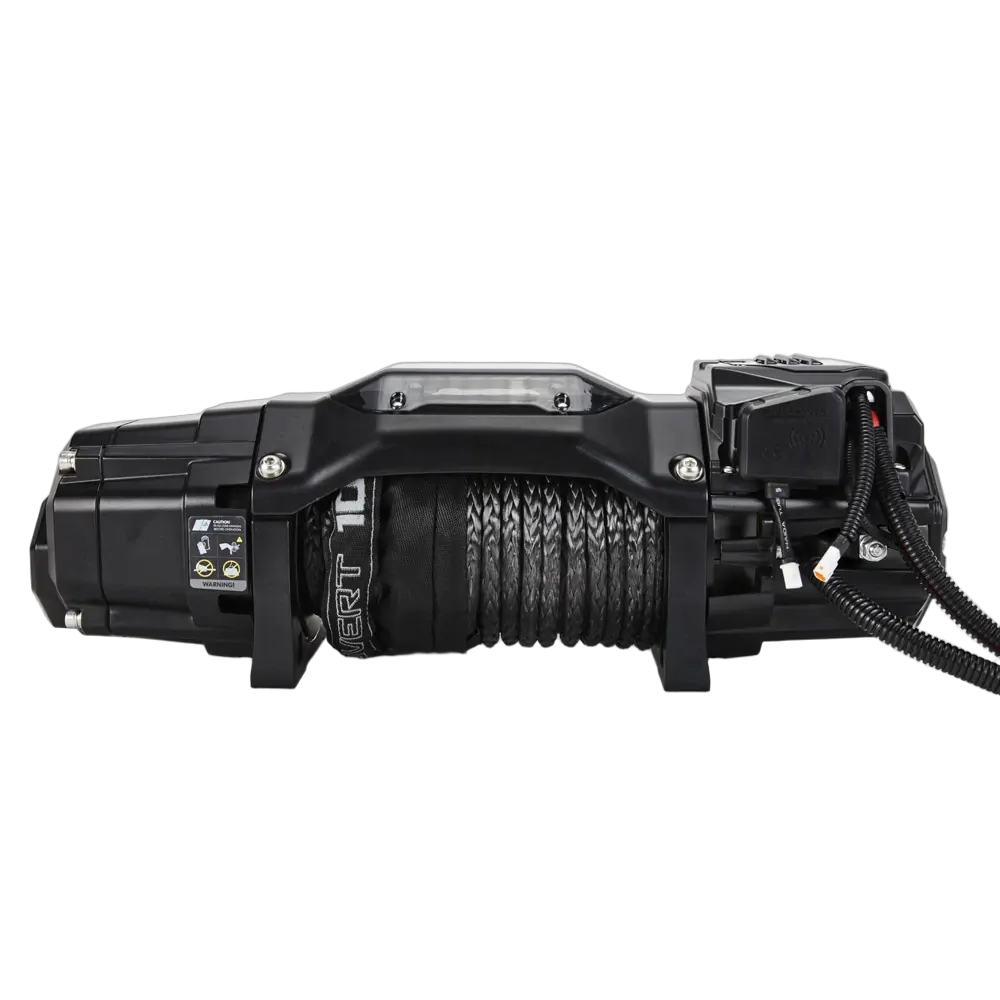

Designed in Australia, built utilising top-tier components, and backed by a rigorous Australian testing protocol, the COVERT winch is meticulously engineered to ensure optimum strength and resilience, demonstrating proven reliability and durability even in the harshest environments. The compact, synergistic design provides fast line speeds and lower current draw, with enhanced motor efficiency from its bespoke built-in Albright Industries control unit, matched to a finely tuned motor and 4-stage gearbox. The All-New Bushranger COVERT winch revolutionises winch technology with its latest generation inbuilt control unit to ensure seamless compatibility with a broader range of modern vehicle bull bars. The premium design eliminates the need for a conventional control box that allows an unobtrusive fitment that won’t interfere with the airflow to cooling systems or with vehicle sensors providing a more versatile covert look.

FEATURES AND BENEFITS

ENGINEERED & PROVEN IN AUSTRALIA

The highest quality components and rigorous test methods ensure reliability and longevity within the harshest environments.

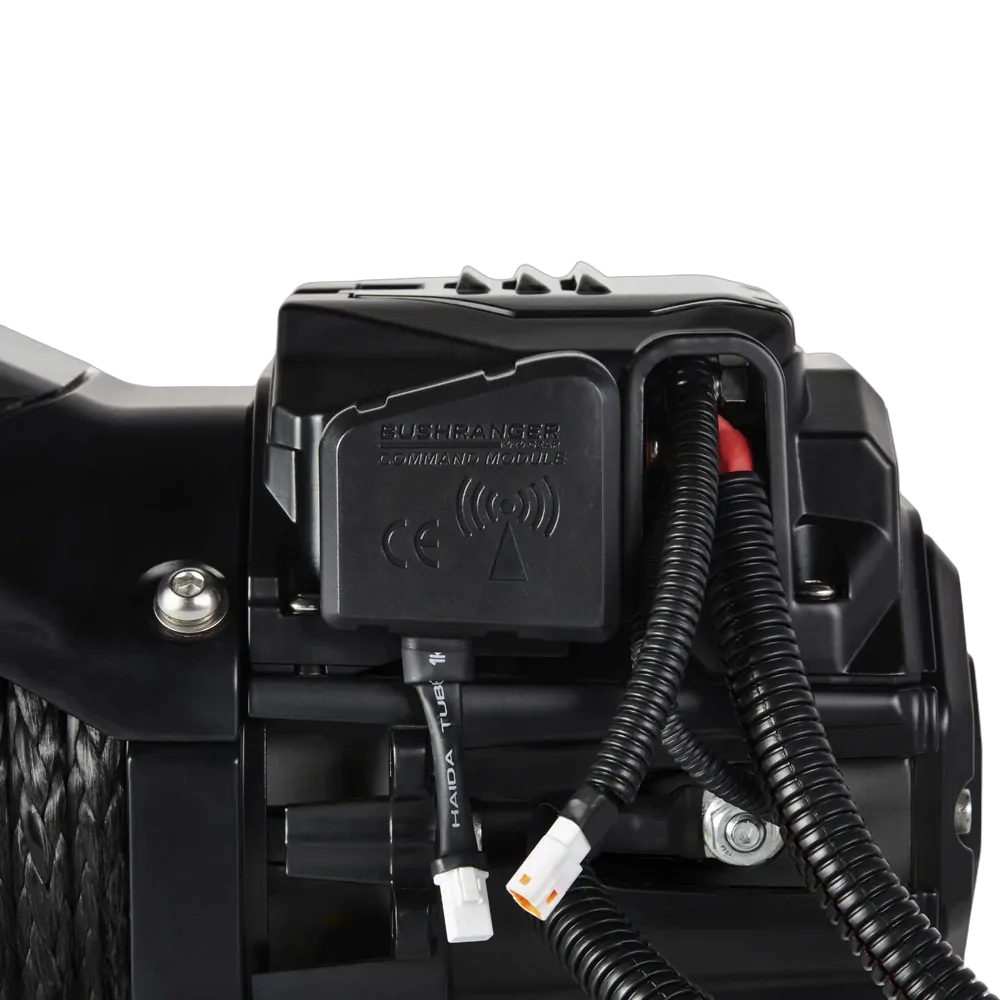

BUILT-IN MOTOR CONTROL UNIT

The synergistic design features a direct connection bespoke Albright contactor, creating greater motor efficiency and removing the need for a conventional control box.

TUNED 5.3HP 12V MOTOR

The purpose-built series-wound motor drives the 4 Stage gearbox to achieve faster line speeds at lower current draws.

4-STAGE GEARBOX

Features hardened steel gearing for improved load distribution, maximum strength and durability.

ZERO DRAG BRAKING SYSTEM

The gearbox-mounted brake provides 100% load holding and the capacity for powered unspooling, under no load, without any damage to the winch.

ROBUST CONSTRUCTION

Lightweight aluminium alloy housings are structurally designed and finished with a durable pretreated satin powder coat.

QUICK & EASY FITMENT

With multiple mounting options, the versatile COVERT winch is prewired and has preset clutch positioning to suit most common bull bars.

DUAL CONNECTION REMOTE

Compact hand controller with 30m Wireless range or 5m lead.

POWER ISOLATION SWITCH

Standard inclusion of a 500amp isolation switch with a universal mounting bracket, stainless lanyard and dust cover.

KIT INCLUDES:

10,000Lb Bushranger COVERT Winch

28 metre x 10mm Synthetic Rope

Dual Connection remote with replaceable battery

Aircraft Grade Aluminium Hawse fairlead

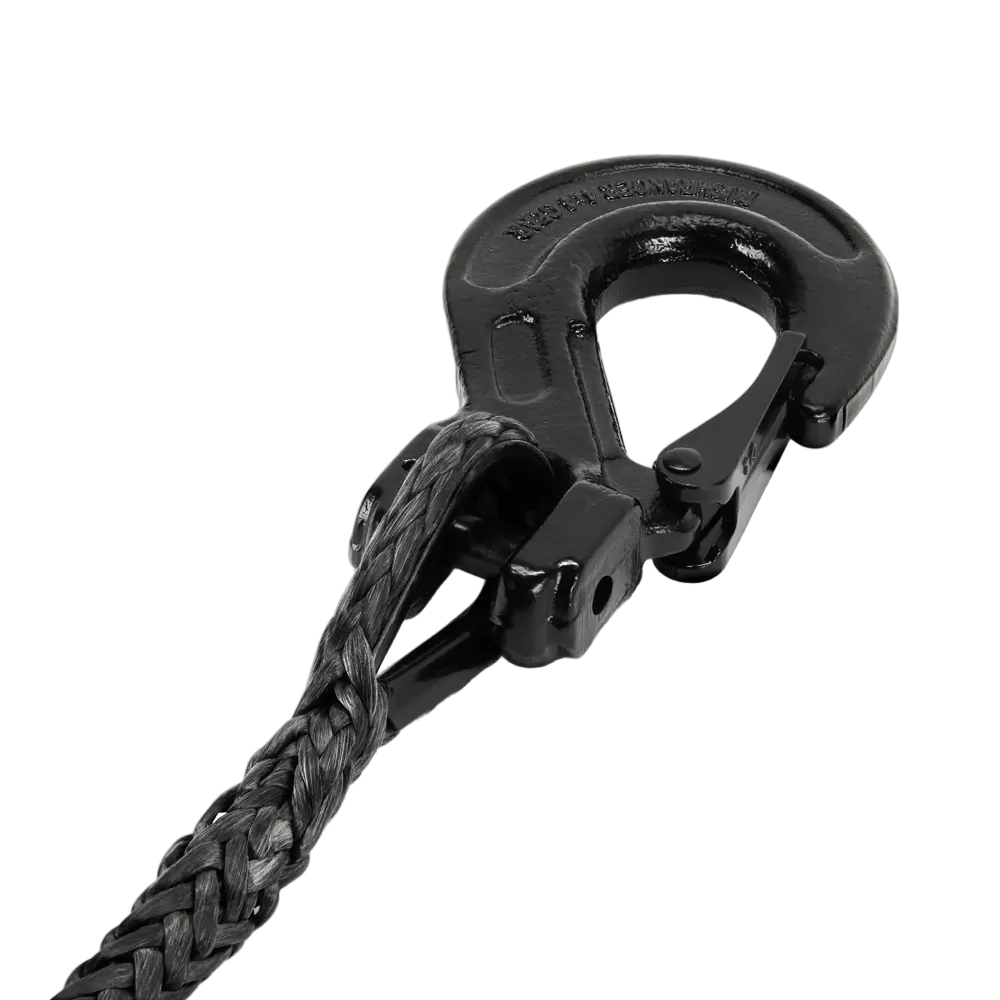

Black Forged hook with pull tag

Main power isolation switch with universal mount

Remotely mounted control plug with lead

Pre-installed heavy gauge wiring with protective conduit

Hi-tensile mounting hardware

SPECS & PERFORMANCE

MODEL: RWC100S

DIMENSIONS: 583mm(L) x 171mm (W) x 202mm (H)

WEIGHT: (FITTED) 31.5kg

RATED LINE PULL: (1ST LAYER) 10,000lbs (4,536kg)

MOTOR: 4.0kW (5.3 HP)

REMOTE CONTROL: Dual Connection Remote: Wireless – 30m range / Wired – 5m Lead

ELECTRICAL CONTACTOR: Bespoke Albright DC Contactor – 500Amp

GEARBOX: 2 Stage Planetary & 2 Stage Spur gear

BRAKE: Gearbox mounted 100% load holding proportional friction brake

CLUTCH: Rotating Ring Gear – Lift & Turn Handle

ROPE: Black 10mm diameter x 28m Synthetic Rope with Protective Sleeve

FAIRLEAD: Two Position, Aircraft Grade Aluminium Hawse fairlead

FINISH: Electrophorus Pre-Treated Black Satin Powder Coated Finish

WATERPROOF RATINGS: IP68 Winch Motor and Gearbox. IP66 Remote with coated PCB.

WARRANTY: Limited Lifetime Warranty (7-Year Warranty on Electrical Components)

CERTIFICATIONS: CE
