Protect your family and meet NSW regulations by installing this Breaksafe Remote Battery Monitor inside your towing vehicle.
This remote battery monitor gets fitted inside your vehicle so you can meet the NSW registration requirement that all break away systems be monitored from the driver's seat.

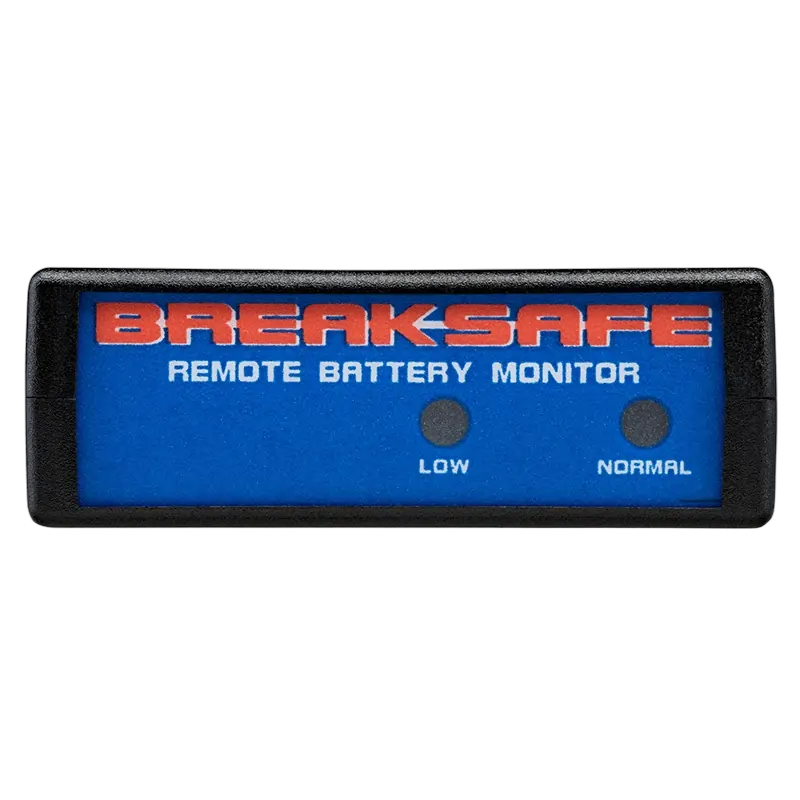

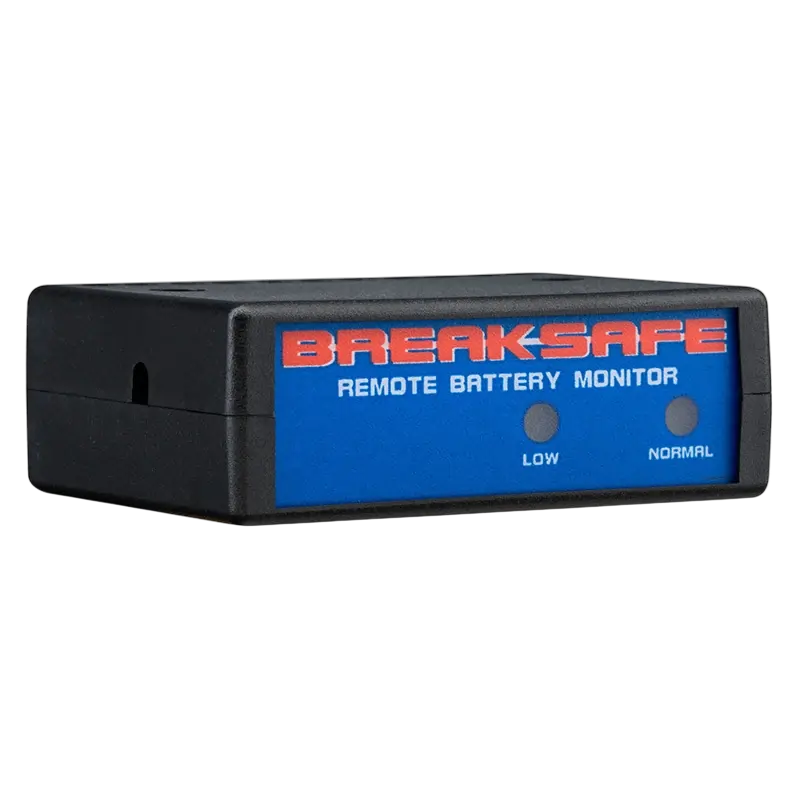

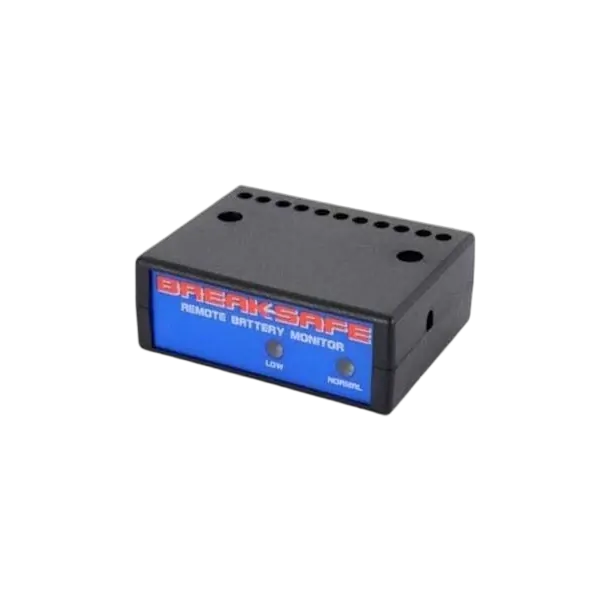

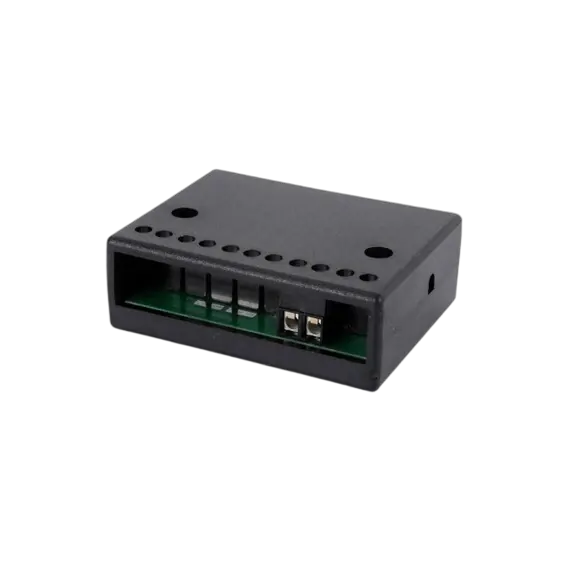

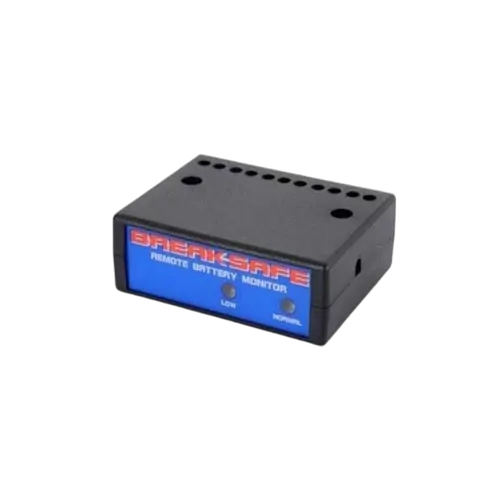

The BREAKSAFE RM6000 Remote Battery Monitor is fitted inside the tow vehicle and operates each time the brake pedal is pressed. The additional circuitry in the BREAKSAFE 5000 and 6000 disconnects the Breaksafe battery from the charge circuit and then connects the battery to the Remote Monitor.
A small electronic load inside the Remote Monitor then pulls the battery terminal voltage down. The micro-processor inside the Remote Monitor measures what the voltage drops to over a preset time to determine the charge state of the Breaksafe battery.
Should the Breaksafe battery be fully charged, a green light will illuminate on the front panel of the RM6000 Remote Monitor. If the battery is below the safe level, a red light will flash and a buzzer will sound for about 10 seconds.
Product features:
- W64mm x D50mm x H22mm
SKU | RM6000_039363-KIT |
---|---|
Barcode # | 9345757000134 |
Brand | RV Electronics |
Shipping Weight | 0.5000kg |
