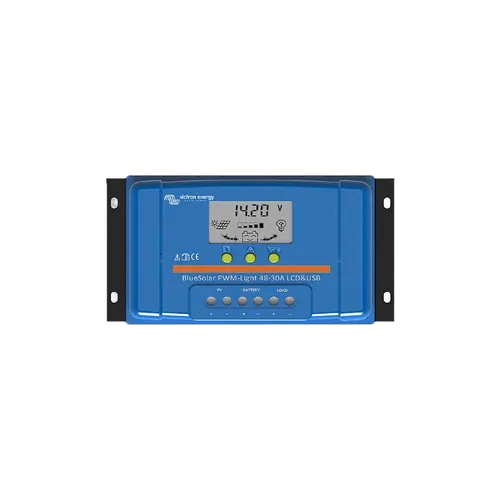

Victron Bluesolar LCD & USB PWM solar controller:

Victron's range of  PWM and MPPT charge controllers are both widely used to charge batteries with solar power.

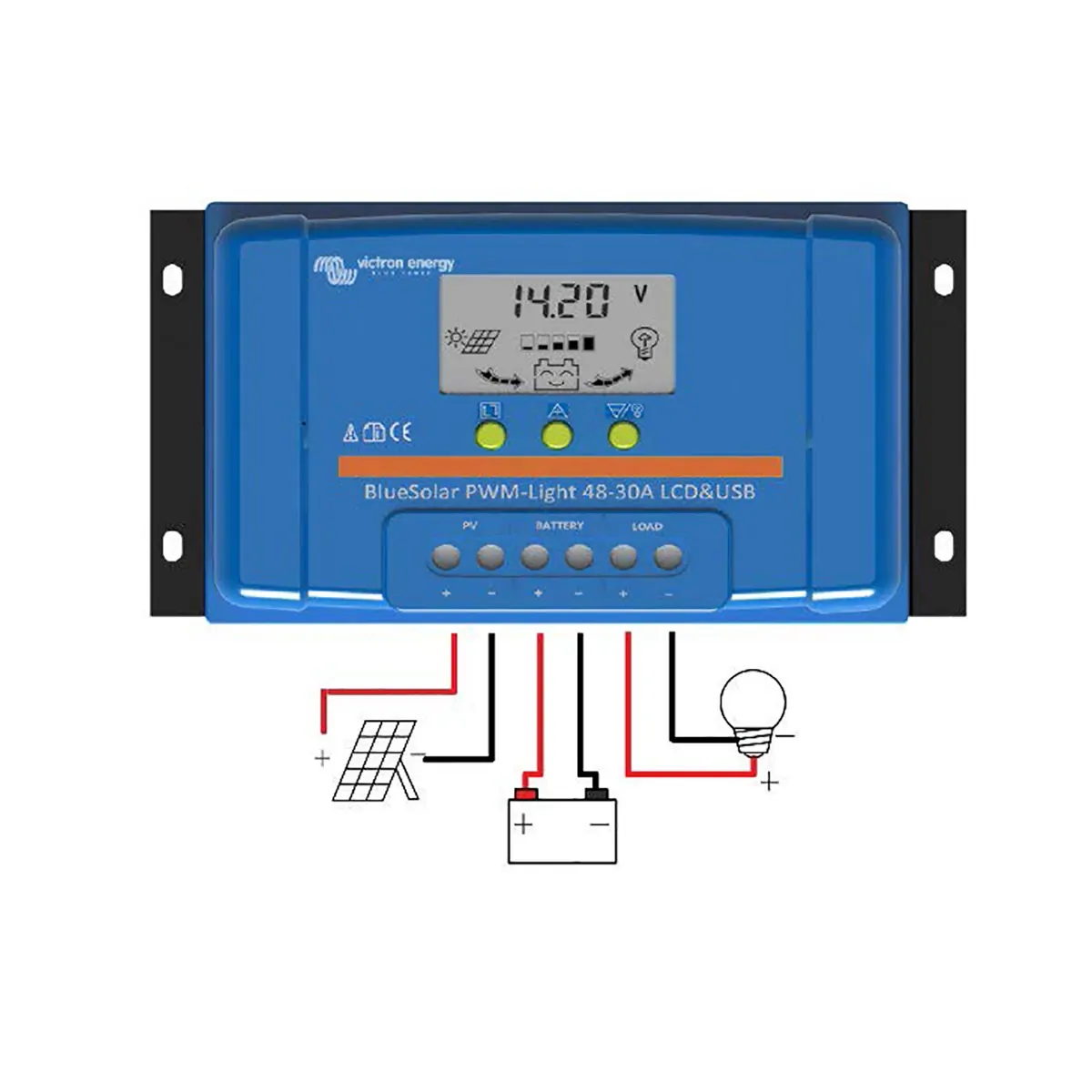

The PWM controller is in essence a switch that connects a solar array to the battery. The result is that the voltage of the array will be pulled down to near that of the battery.

A PWM controller is not a DC to DC transformer. The PWM controller is a switch which connects the solar panel to the battery. When the switch is closed, the panel and the battery will be at nearly the same voltage. Assuming a discharged battery the initial charge voltage will be around 13 V, and assuming a voltage loss of 0,5 V over the cabling plus controller, the panel will be at Vpwm = 13,5 V.

The voltage will slowly increase with increasing state of charge of the battery. When absorption voltage is reached the PWM controller will start to disconnect and reconnect the panel to prevent overcharge (hence the name: Pulse Width Modulated controller).

Features:

Liquid crystal display- For status monitoring and set-up

Load output- Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output- This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm- Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs- Maximum current (both outputs combined): 2A

*Images for display purposes

BlueSolar PWM-LCD&USB

12/24-5

12/24-10

12/24-20

12/24-30

Battery Voltage

12/24 V with automatic system voltage detection

Rated charge current

5A

10A

20A

30A

Automatic load disconnect

Yes

Maximum solar voltage

28V / 55V (1)

Self-consumption

< 10 mA

Load output

Manual control + low voltage disconnect + timer

Protection

Battery reversepolarity(fuse)     Output short circuit                   Over temperature



Overload protection

Shut down after 60 s in case of 130% load

Shut down after 5 s in case of 160% load

Short circuit: immediate shut down

Grounding

Common positive

Operating temp. range

-35 to +60°C (full load)

Humidity (non-condensing)

Max 95%

BATTERY

Charge voltage 'absorption'

14.4V / 28,8V

Charge voltage 'float'

13.7V / 27,4V

Low voltage load disconnect

11,2V / 22,4V

Low voltage load reconnect

12,6V / 25,2V

ENCLOSURE

Protection class

IP20

Terminal size

6 mm² / AWG10        (16 mm² / AWG6 30A model)

Weight

0,15kg

0,3kg

Dimensions (h x w x d)

96 x 169 x 36mm (101 x 184 x 47mm 30A model)

STANDARDS

Safety

EN60335-1, IEC62109-1

EMC

EN 61000-6-1, EN 61000-6-3, ISO 7637-2



1) For 12V use 36 cell solar panels
For 24V use 72 cell solar panels or 2x 36 cell in series

2) The controller switches to the lower float voltage level 2 hours after the absorption voltage has been reached. Whenever the battery voltage becomes lower than 13V, a new charge cycle is triggered.

Victron BlueSolar PWM-LCD&USB 12/24V-30A spec sheet-


Victron BlueSolar PWM-LCD&USB 12/24V-30A manual-


Victron white paper PWM or MPPT-

SKU SCC010030050
Barcode # 8719076046226
Brand Victron
Shipping Weight 1.0000kg

Bluesolar Pwm-Lcd&Usb 12/24V-30A

SKU: SCC010030050
In Stock
In stock
Sale price
$110.99
RRP $125.40
Earn 1,100 Outback Rewards Points
Sale price
$110.99
DON'T PAY RRP $125.40
