Features

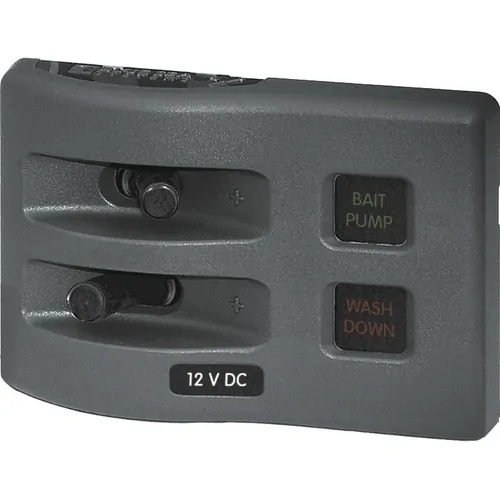

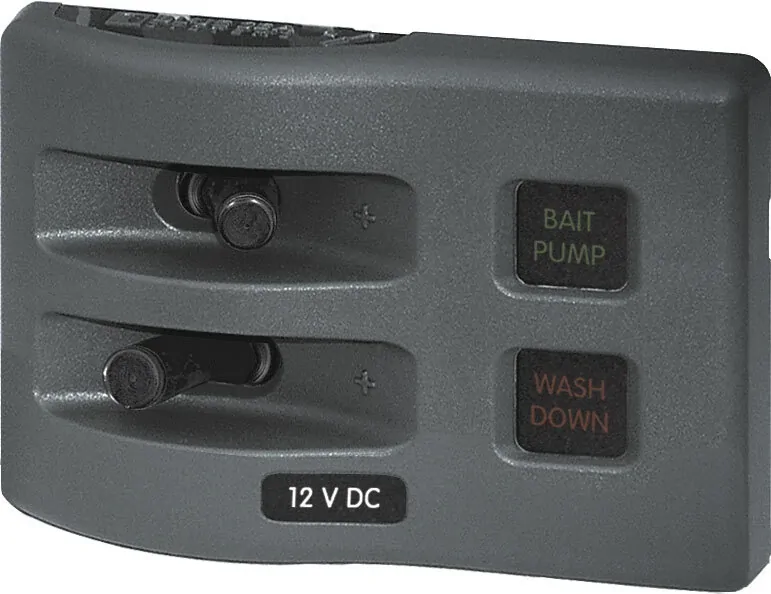

WeatherDeck® 12V DC Waterproof Fuse Panel – Gray 2 Positions

  • Rated IP67 – Temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting circuit for remote switching and dimming
  • Available in 2, 4, 6, and 8 circuit models
  • Each panel can be mounted in four different orientations
  • Integrated ATO/ATC fuse based circuit protection
  • Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications

WeatherDeck® 12V DC Waterproof Fuse Panel – Gray 2 Positions
Weatherproof Waterproof
Positions 2
Nominal Voltage 12V DC
Circuit Protection Fuse
Maximum Amperage 15A @ 12V DC (per circuit)
Panel Cumulative Rating 30A
Backlit Label Bicoloured LED
Backlighting Amperage 10mA / Illuminated Circuit
Backlighting Voltage 12 or 24V DC
Material Reinforced Polycarbonate
Height 2.630in (66.04 mm)
Width 3.88in (98.55 mm)
Depth 2.50in (63.5 mm)
Weight 0.24 kg
SKU BS-4302
Barcode # OEBC527547
Brand Blue Sea Systems
Shipping Weight 0.3900kg
