Features

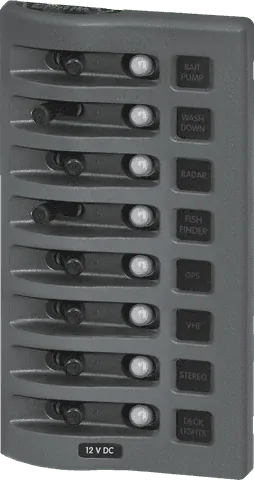

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 8 Positions

  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Available in 4 and 6 circuit models
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 8 Positions
WeatherproofWaterproof
Positions8
Nominal Voltage12V DC
24V DC
Circuit ProtectionCircuit Breaker
Maximum Amperage15A @ 12V DC (per circuit)
9A @ 24V DC (per circuit)
Panel Cumulative Rating45A
Backlit LabelGreen LED
Backlighting Amperage10mA /Illuminated Circuit
Backlighting Voltage12 or 24V DC
MaterialReinforced Polycarbonate
Height7.70in (195.58 mm)
Width4.25in (107.95 mm)
Depth3.50in (88.9 mm)
Weight0.77 kg
SKU BS-4378
Barcode # OEBC527559
Brand Blue Sea Systems
Shipping Weight 0.8800kg

Blue Sea Systems Weatherdeck 12V Dc Waterproof Circuit Breaker Panel - Gray 8 Positions

SKU: BS-4378
Sale price
$363.00
RRP $391.00
Earn 3,630 Outback Rewards Points
Sale price
$363.00
DON'T PAY RRP $391.00
PayPal Checkout
4 payments of $90.75

afterpay More info.

Make 4 payments of $90.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $90.75

Calculate Shipping

Features

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 8 Positions

  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Available in 4 and 6 circuit models
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 8 Positions
WeatherproofWaterproof
Positions8
Nominal Voltage12V DC
24V DC
Circuit ProtectionCircuit Breaker
Maximum Amperage15A @ 12V DC (per circuit)
9A @ 24V DC (per circuit)
Panel Cumulative Rating45A
Backlit LabelGreen LED
Backlighting Amperage10mA /Illuminated Circuit
Backlighting Voltage12 or 24V DC
MaterialReinforced Polycarbonate
Height7.70in (195.58 mm)
Width4.25in (107.95 mm)
Depth3.50in (88.9 mm)
Weight0.77 kg
SKU BS-4378
Barcode # OEBC527559
Brand Blue Sea Systems
Shipping Weight 0.8800kg
