Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads

  • Perfect for passing high current cables through hulls, decks and bulkheads
  • Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
  • Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
  • Rated IP66 — withstands water from heavy seas
Specifications
Amperage 250A
Color Black
Maximum Voltage 48V DC
Stud Size 3/8"-16
Base Material Reinforced Thermoplastic
Recommended Torque 100 in-lb (11.3 N·m)
Stud Material Tin-Plated Copper Alloy
Weight 0.30lb (0.14 kg)
SKU BS-2203
Barcode # OEBC527444
Brand Blue Sea Systems
Shipping Weight 0.0600kg

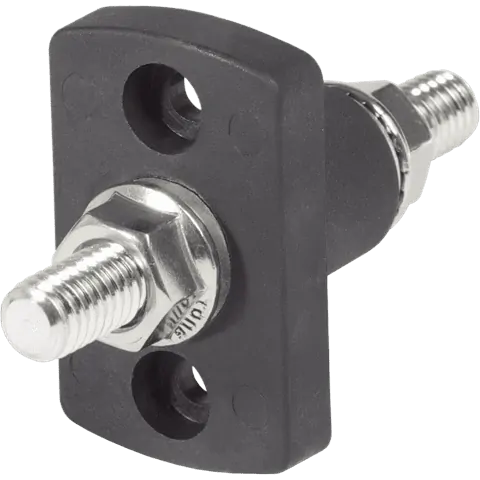

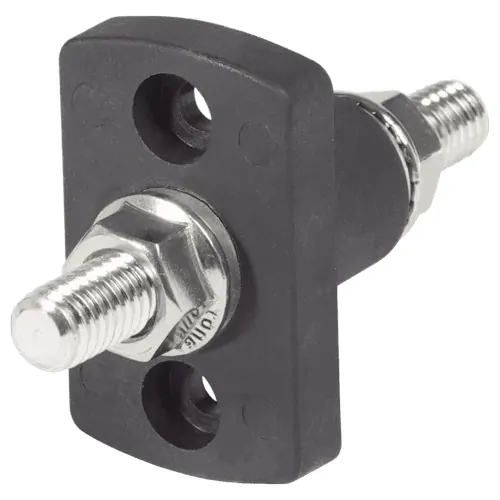

Blue Sea Systems Terminal Feed Through 3/8-16 Stud Blk

SKU: BS-2203
Sale price
$41.00
RRP $42.00
