Description
Features

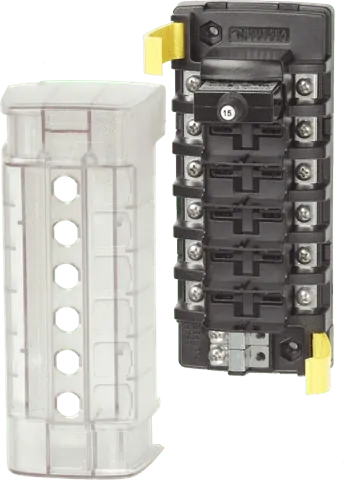

ST CLB Circuit Breaker Block – 6 Position
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications
| ST CLB Circuit Breaker Block – 6 Position | |
|---|---|
| Circuits | 6 |
| Maximum Amperage | 32A (per circuit) 40A (per jumped circuit group) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Source | Independent Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 5.63in (143 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 6.69in (169.93 mm) |
| Weight | 0.34 kg |
Specifications
| SKU | BS-5050 |
|---|---|
| Barcode # | OEBC527285 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.4500kg |

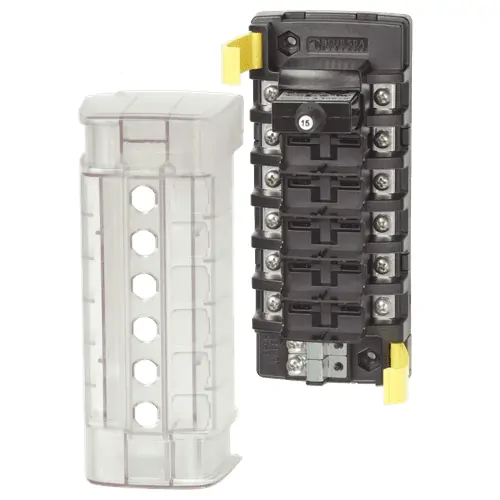

Blue Sea Systems St Clb Circuit Breaker Block - 6 Position
SKU: BS-5050
More infoMake 4 payments of $18.25 over 8 weeks and get it now!
