Description
Features

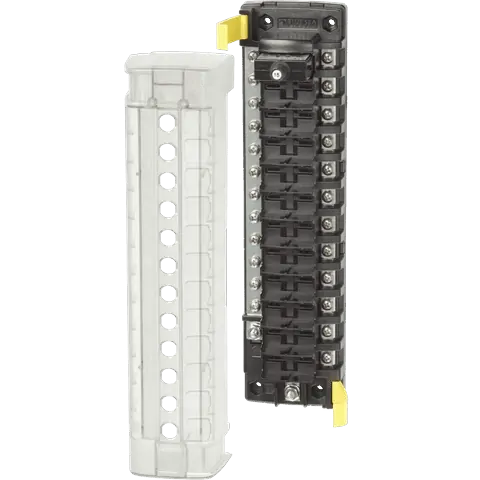

ST CLB Circuit Breaker Block – 12 Position with Negative Bus
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications
| ST CLB Circuit Breaker Block – 12 Position with Negative Bus | |
|---|---|
| Circuits | 12 |
| Maximum Amperage | 100A (per block) 32A (per circuit) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Negative Bus | Yes |
| Source | Common Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 10.13in (257.3 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 11.19in (284.23mm) |
| Weight | 0.68 kg |
Specifications
| SKU | BS-5054 |
|---|---|
| Barcode # | OEBC527288 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.8000kg |
4% Off RRP

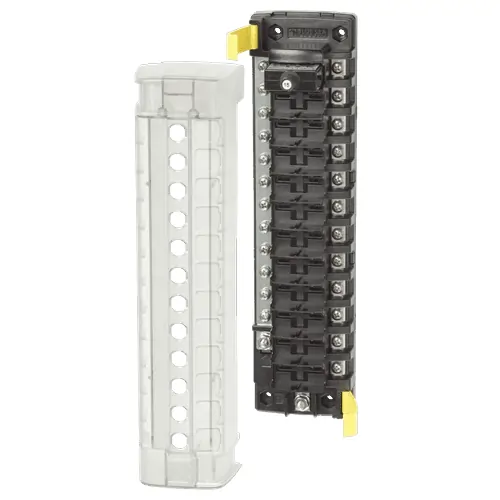

Blue Sea Systems St Clb Circuit Breaker Block - 12 Position With Negative Bus
SKU: BS-5054
More infoMake 4 payments of $41.25 over 8 weeks and get it now!
