Features

Consolidates branch circuits and in-line fuses

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately

Specifications

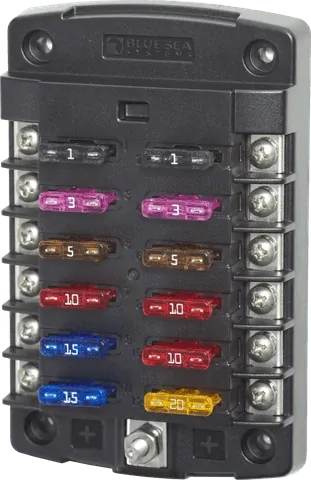

ST Blade Fuse Block – 12 Circuits
Circuits12
Maximum Amperage100A per block 30A per circuit
Maximum Voltage32V DC
Mounting#8 Screw (M4)
Positive Bus#10-32 Stud
Recommended Torque24 in-lb (2.71 N·m)
Screw Terminal Type#8-32 Screws with captive star lock washer
Weight0.60lb (0.27 kg)
SKU BS-5034B
Barcode # OEBC527369
Brand Blue Sea Systems
Shipping Weight 0.3500kg

Blue Sea Systems St Blade Fuse Block - 12 Circuits

SKU: BS-5034B
Sale price
$69.99
RRP $75.00
Earn 690 Outback Rewards Points
Sale price
$69.99
DON'T PAY RRP $75.00
PayPal Checkout
4 payments of $17.50

afterpay More info.

Make 4 payments of $17.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $17.50

Calculate Shipping
