Description
Features

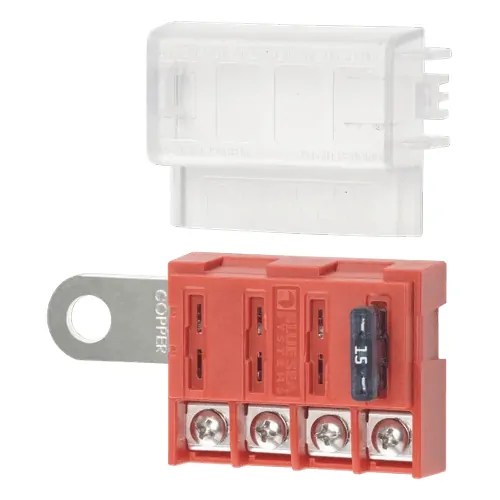

ST Blade Battery Terminal Mount Fuse Block
- Easy to install 4 ATO®/ATC® fused circuits
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Four Nylon insulated ring terminals included
- Insulating cover included
- Accepts Small Format Circuit Labels
- Includes 1 fuse
Specifications
| ST Blade Battery Terminal Mount Fuse Block | |
|---|---|
| Circuits | 4 |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | Clearance for 3/8″ [M10] stud |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
Specifications
| SKU | BS-5023 |
|---|---|
| Barcode # | OEBC527362 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0700kg |
Blue Sea Systems St Blade Battery Terminal Mount Fuse Block
SKU: BS-5023
