Description
Specifications
| 285-Series Circuit Breakers | |
|---|---|
| Maximum Voltage | 48V DC |
| Circuit Breaker Type | Thermally responsive Bi-metal Blade |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temp | -40° C |
| Maximum Operating Temp | 85° C |
| Circuit Breaker Class | Type III – switchable/manual reset – trip free |
| Terminal Stud | M6 (accepts 1/4″ ring Terminal) |
| Weight | 0.23 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-7088 |
|---|---|
| Barcode # | OEBC527335 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.3000kg |

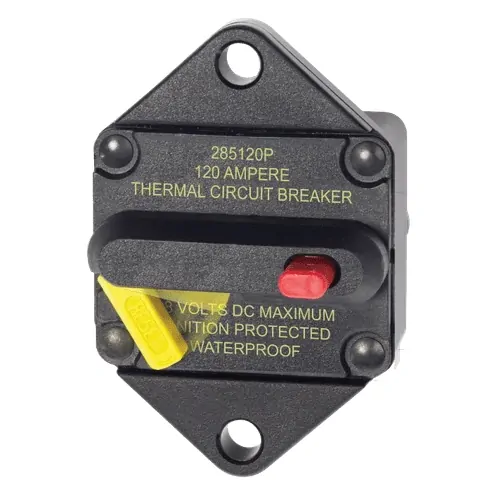

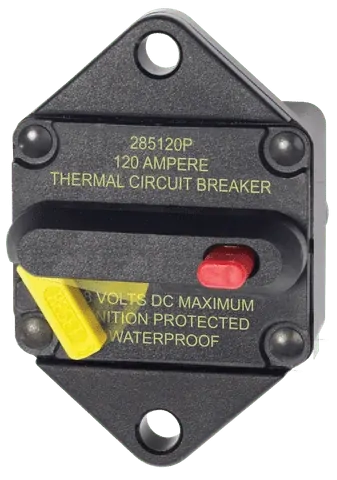

Blue Sea Systems Panel Mount 285-Series Circuit Breakers 120A
SKU: BS-7088
More infoMake 4 payments of $22.25 over 8 weeks and get it now!
