Description
Specifications
| 187-Series Circuit Breakers | |
|---|---|
| Maximum Voltage | 48V DC |
| Circuit Breaker Type | Thermally responsive Bi-metal Blade |
| Terminal Stud Torque | 75 in-lb (8.47 Nm) |
| Interrupt Capacity | 5000A @ 12V 3000A @ 24V 1500A @ 42V |
| Case Material | Thermoset Polyester |
| Minimum Operating Temp | -40° C |
| Maximum Operating Temp | 85° C |
| Circuit Breaker Class | Type III – switchable/manual reset – trip free |
| Mounting Hole | Accept #10 (M5) Screw |
| Terminal Stud Size | 5/16″ – 18 |
| Weight | 0.23 kg – Surface 0.26 kg – Panel |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-7035 |
|---|---|
| Barcode # | OEBC527315 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.3000kg |

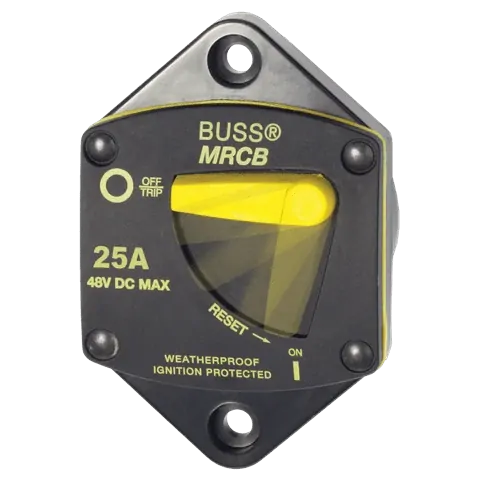

Blue Sea Systems Panel Mount 187-Series Circuit Breakers 25A
SKU: BS-7035
