Description
Features
- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state – requires optional LED
- ML-Series Remote Control Contura Switch PN 2145 available as a seperate item.
- 3∕ 8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7∕ 8″ (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Specifications
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 24V DC |
| Manual Control | Yes |
| Coil Function | Bi-Stable |
| Mounting | #10 |
| Amperage Operating Current | 0mA |
| Amperage Operating Current when changing state | <4A (40ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Control Circuit Voltage | 20.2 to 32.9V DC |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 10 sec | 2500A |
| Cranking Rating 1 min | 1100A |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 50° C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | No |
| Mechanical Endurance | 100,000 Cycles |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8″ – 16 (M10) |
| Weight | 0.79 kg |
Specifications
| SKU | BS-7702 |
|---|---|
| Barcode # | OEBC527535 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.8000kg |

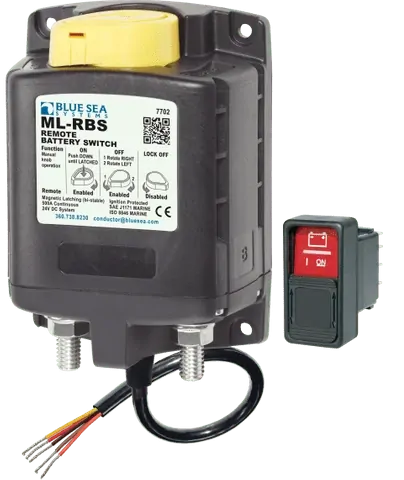

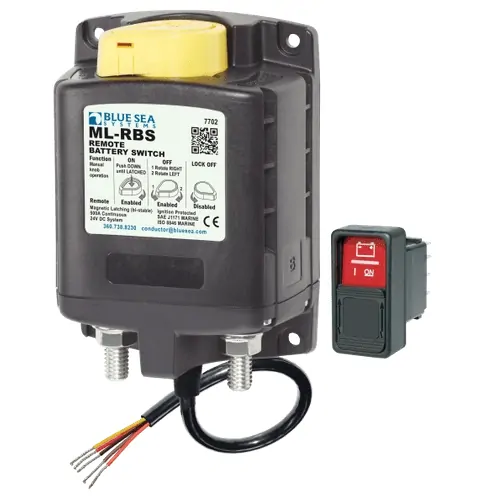

Blue Sea Systems Ml-Rbs Remote Battery Switch With Manual Control - 24V Dc 500A
SKU: BS-7702
More infoMake 4 payments of $92.75 over 8 weeks and get it now!
