Features

MEGA® / AMG® Safety Fuse Block

  • Ignition protected for installation aboard gasoline or diesel powered boats
  • Sealed cover protects fuses from the harsh marine environment
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • 300A maximum with 4/0 cable
  • Accepts Blue Sea Systems Square Format standard or custom label
  • Fuses sold separately

Specifications

MEGA® / AMG® Safety Fuse Block
Maximum Amperage300A
Maximum Voltage32V DC
Recommended Stud Torque120 in-lb (13.56 Nm)
Terminal Screw5/16″ (M8)
Terminal Stud Size5/16″ (M8)
Weight0.07 kg
SKU BS-7721
Barcode # OEBC527375
Brand Blue Sea Systems
Shipping Weight 0.0700kg

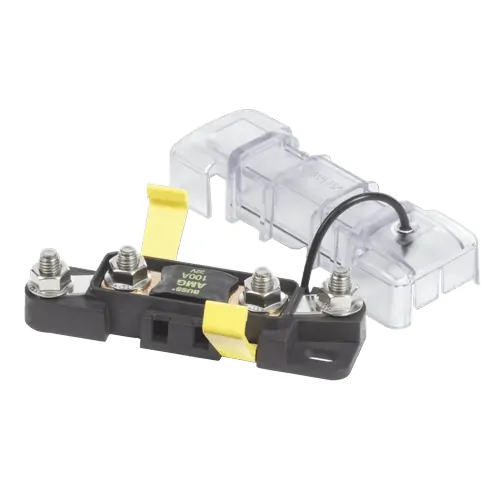

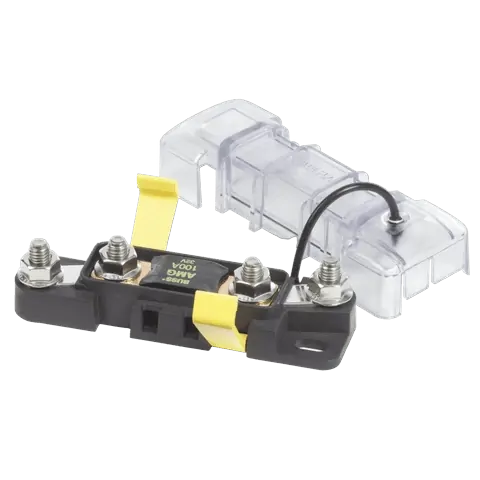

Blue Sea Systems Mega / Amg Safety Fuse Block

SKU: BS-7721
Sold out
Sale price
$55.99
RRP $57.00
Earn 550 Outback Rewards Points
Sale price
$55.99
DON'T PAY RRP $57.00
PayPal Checkout
4 payments of $14.00

afterpay More info.

Make 4 payments of $14.00 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $14.00

Calculate Shipping

Features

MEGA® / AMG® Safety Fuse Block

  • Ignition protected for installation aboard gasoline or diesel powered boats
  • Sealed cover protects fuses from the harsh marine environment
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • 300A maximum with 4/0 cable
  • Accepts Blue Sea Systems Square Format standard or custom label
  • Fuses sold separately

Specifications

MEGA® / AMG® Safety Fuse Block
Maximum Amperage300A
Maximum Voltage32V DC
Recommended Stud Torque120 in-lb (13.56 Nm)
Terminal Screw5/16″ (M8)
Terminal Stud Size5/16″ (M8)
Weight0.07 kg
SKU BS-7721
Barcode # OEBC527375
Brand Blue Sea Systems
Shipping Weight 0.0700kg
