Description
Features
Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
Specification
| m-Series Mini On-Off Battery Switch with Knob – Red | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 Sec | 1500A |
| Cranking Rating 1 min | 775A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.29 kg |
Specifications
| SKU | BS-6006 |
|---|---|
| Barcode # | OEBC527527 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.4000kg |

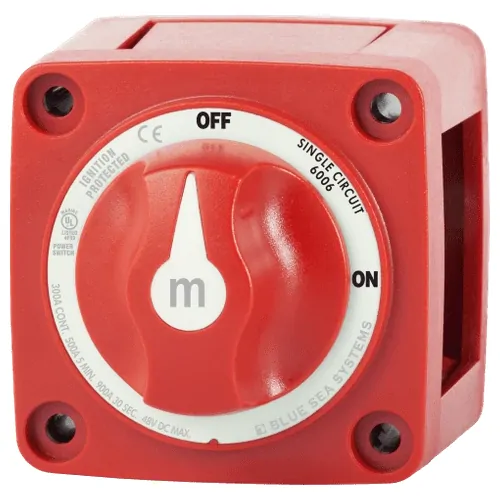

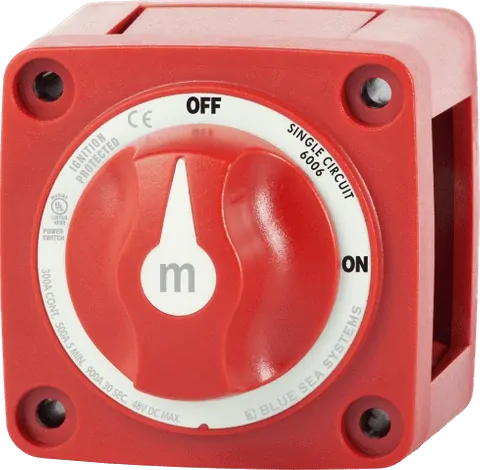

Blue Sea Systems M-Series Mini On-Off Battery Switch With Knob - Red
SKU: BS-6006
