Description
Features

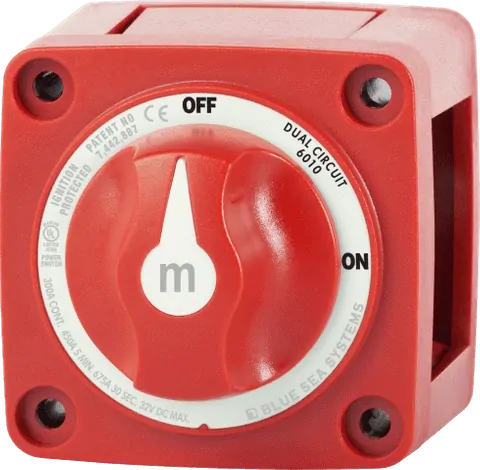

m-Series Mini Dual Circuit Battery Switch – Red
- Simultaneously switches two isolated battery banks.
Specifications
| m-Series Mini Dual Circuit Battery Switch – Red | |
|---|---|
| Switch Type | Dual Circuit |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 10 Sec | 1000A |
| Cranking Rating 1 min | 650A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.36 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-6010 |
|---|---|
| Barcode # | OEBC527529 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.4000kg |

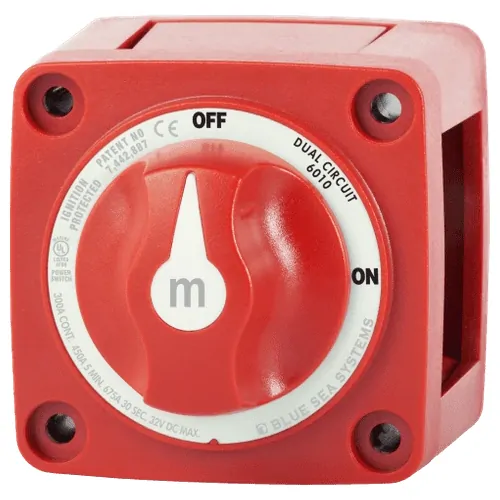

Blue Sea Systems M-Series Mini Dual Circuit Battery Switch - Red
