Switches a single battery to a single load group

  • Ignition protected—safe for installation aboard gasoline powered boats

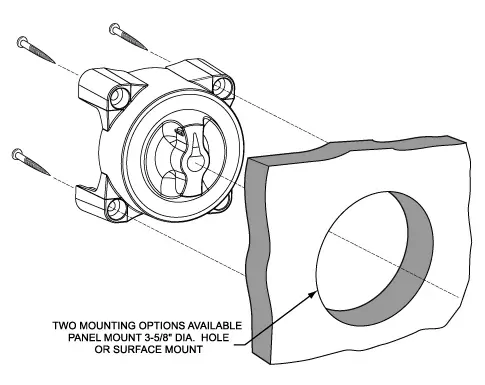

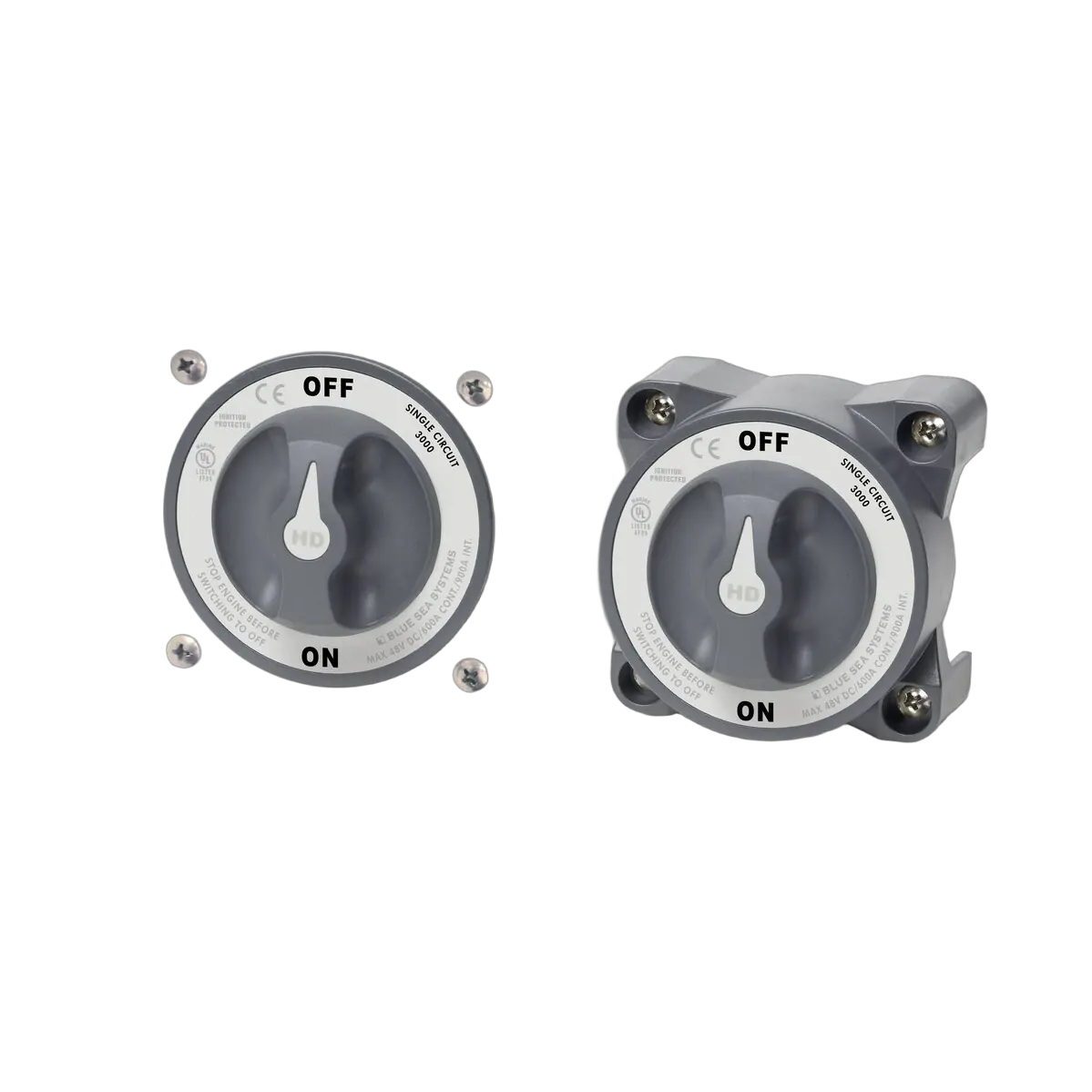

  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables

Specifications

HD-Series Heavy Duty On-Off Battery Switch
Switch Type Single Circuit ON-OFF
Color Grey
Switch Positions 2
Battery Combine No
Alternator Field Disconnect No
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating 600A
Intermittent Rating 900A (5 min)
Cranking Rating 10 Sec 2750A
Cranking Rating 1 min 1325A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4″ (M6) Screw
Terminal Stud Size 1/2″ – 16 (M12)
Weight 0.59 kg
SKU BS-3000
Barcode # OEBC527520
Brand Blue Sea Systems
Shipping Weight 0.5900kg

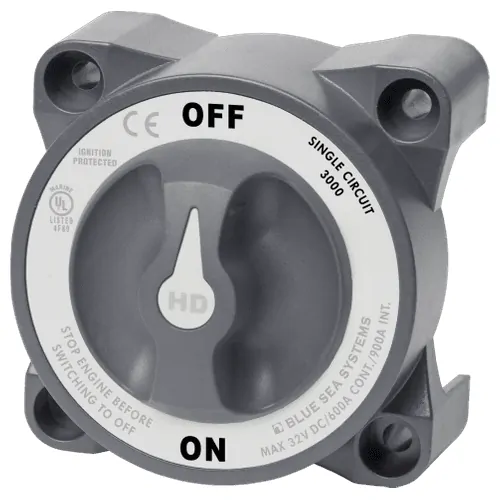

Blue Sea Systems Hd-Series Heavy Duty On-Off Battery Switch

SKU: BS-3000
Sale price
$152.99
RRP $159.00
Earn 1,520 Outback Rewards Points
Sale price
$152.99
DON'T PAY RRP $159.00
PayPal Checkout
4 payments of $38.25

afterpay More info.

Make 4 payments of $38.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $38.25

Calculate Shipping
