Description
Specifications

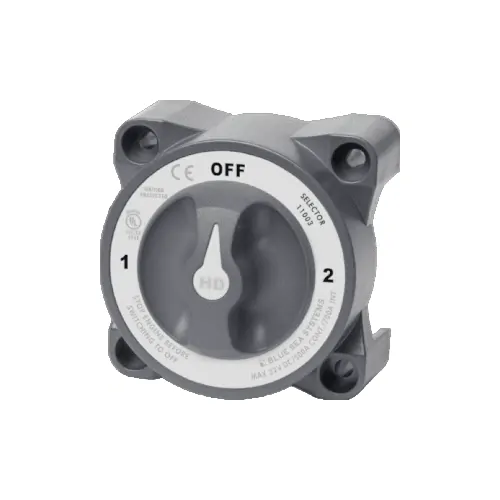

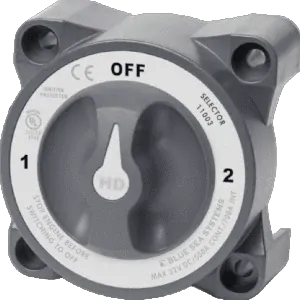

| HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD | |
|---|---|
| Switch Type | Selector 3 Position |
| Color | Grey |
| Switch Positions | 3 |
| Battery Combine | No |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 10 Sec | 2750A |
| Cranking Rating 1 min | 1150A |

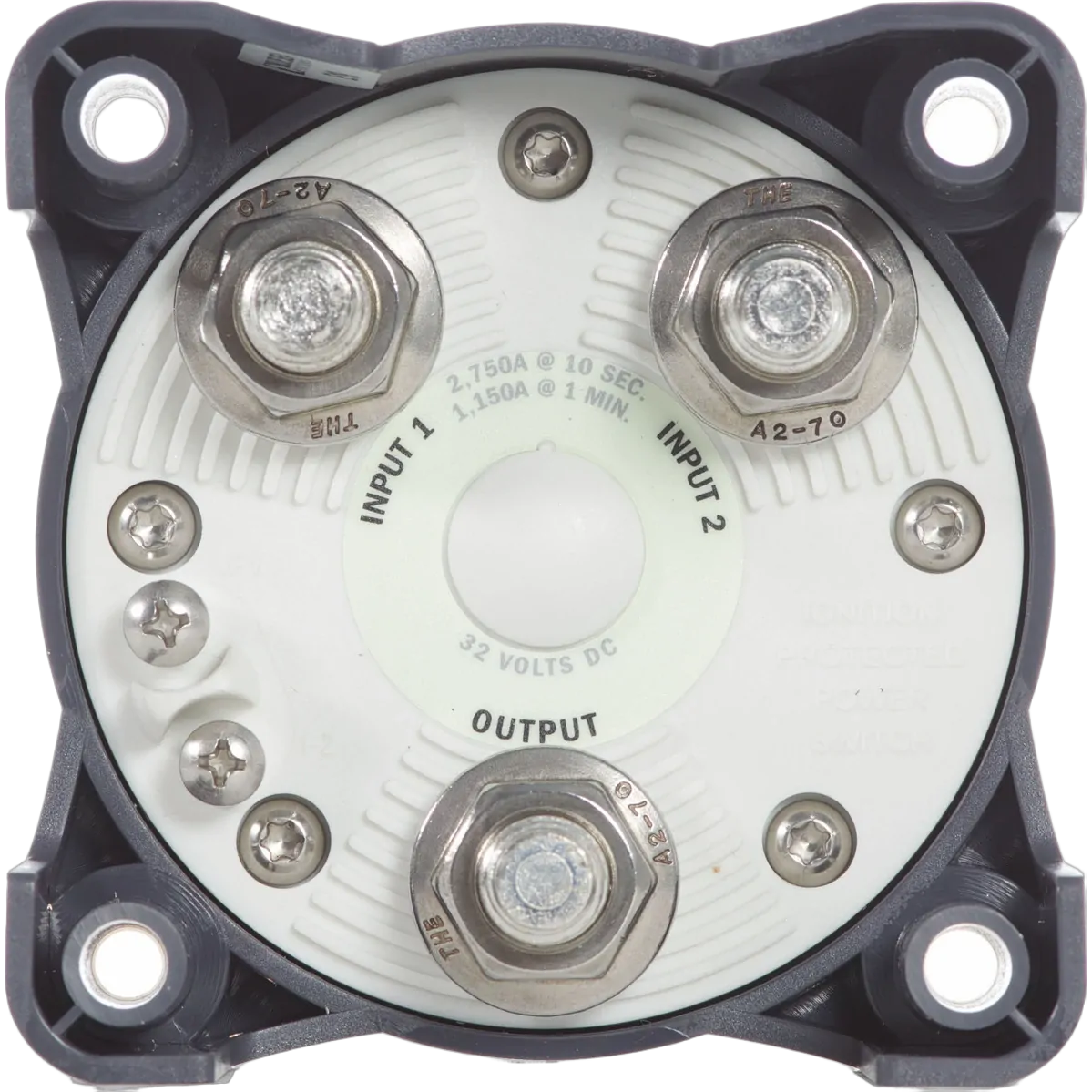

| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4″ (M6) Screw |
| Terminal Stud Size | 1/2″(M12) |
| Weight | 0.59 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-11003 |
|---|---|
| Barcode # | OEBC527513 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.5900kg |
Blue Sea Systems Hd-Series Heavy Duty 3 Position Selector Battery Switch With Afd
SKU: BS-11003
More infoMake 4 payments of $48.00 over 8 weeks and get it now!
Calculate Shipping
Description
Specifications
| HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD | |
|---|---|
| Switch Type | Selector 3 Position |
| Color | Grey |
| Switch Positions | 3 |
| Battery Combine | No |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 10 Sec | 2750A |
| Cranking Rating 1 min | 1150A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4″ (M6) Screw |
| Terminal Stud Size | 1/2″(M12) |
| Weight | 0.59 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-11003 |
|---|---|
| Barcode # | OEBC527513 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.5900kg |
