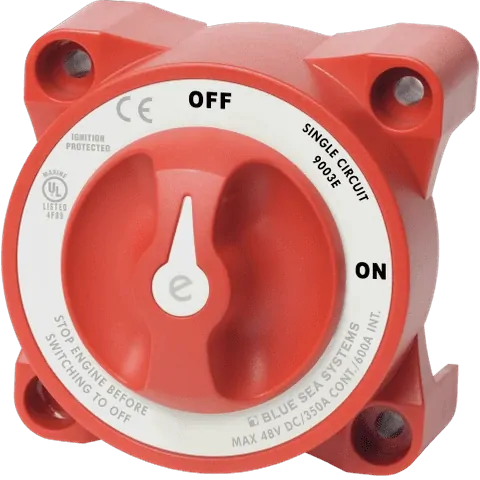

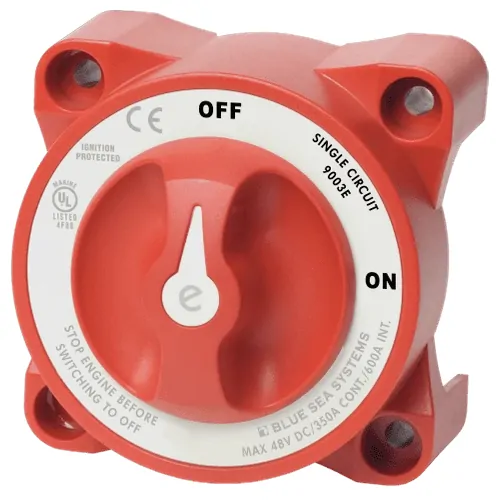

e-Series On Off Battery Switch
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
e-Series On-Off Battery Switch | |
---|---|
Switch Type | Single Circuit ON-OFF |
Color | Red |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 48V DC |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 350A |
Intermittent Rating | 600A (5 min) |
Cranking Rating 10 Sec | 2000A |
Cranking Rating 1 min | 1000A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
Mounting Holes | Accept 1/4″ (M6) Screw |
Terminal Stud Size | 3/8″ – 16 (M12) |
Weight | 0.59 kg |
Note: Specifications subject to change without notice.
SKU | BS-9003e |
---|---|
Barcode # | OEBC527541 |
Brand | Blue Sea Systems |
Shipping Weight | 0.6000kg |
e-Series On-Off Battery Switch | |
---|---|
Switch Type | Single Circuit ON-OFF |
Color | Red |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 48V DC |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 350A |
Intermittent Rating | 600A (5 min) |
Cranking Rating 10 Sec | 2000A |
Cranking Rating 1 min | 1000A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
Mounting Holes | Accept 1/4″ (M6) Screw |
Terminal Stud Size | 3/8″ – 16 (M12) |
Weight | 0.59 kg |
Note: Specifications subject to change without notice.
SKU | BS-9003e |
---|---|
Barcode # | OEBC527541 |
Brand | Blue Sea Systems |
Shipping Weight | 0.6000kg |
