Description
Specifications
| e-Series Dual Circuit Plus™ Battery Switch | |
|---|---|
| Switch Type | Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 525A (5 min) |
| Cranking Rating 10 Sec | 1000A |
| Cranking Rating 1 min | 750A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4″ (M6) Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Weight | 0.59 kg |
Note: Specifications subject to change without notice.
Downloads
Specifications
| SKU | BS-5511e |
|---|---|
| Barcode # | OEBC527525 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.5900kg |

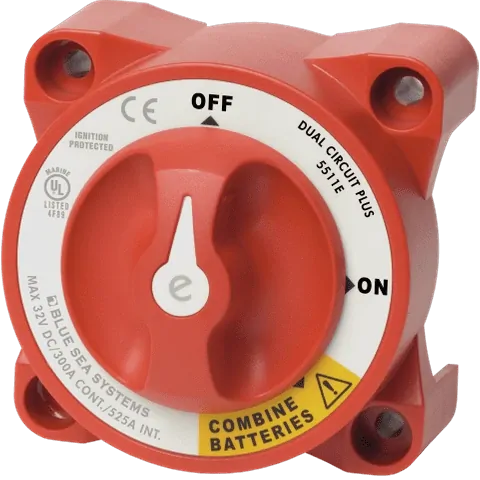

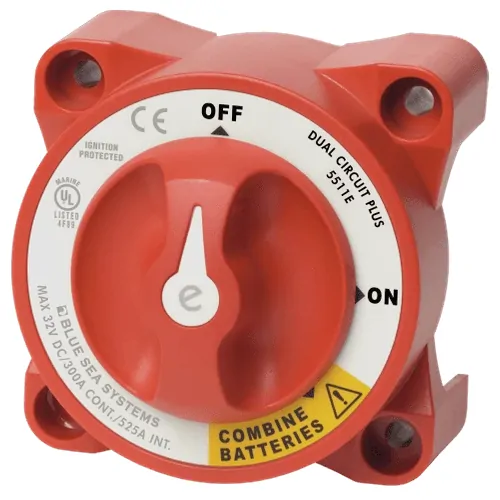

Blue Sea Systems E-Series Dual Circuit Plus™ Battery Switch
SKU: BS-5511e
More infoMake 4 payments of $26.50 over 8 weeks and get it now!
