Description
- Combines negative and positive buses on one block
- Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus |
| Number of Terminal Studs | 2 per bus |
| Terminal Type | #10-32 Screw 5/16" Stud |
Continuous Rating  |
130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material | Clear Polycarbonate |
| Mounting Screw | #10 (M5) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.61lb (0.28 kg) |
| Weight | 0.61lb (0.28 kg) |
Specifications
| SKU | BS-2723 |
|---|---|
| Barcode # | OEBC527495 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0500kg |

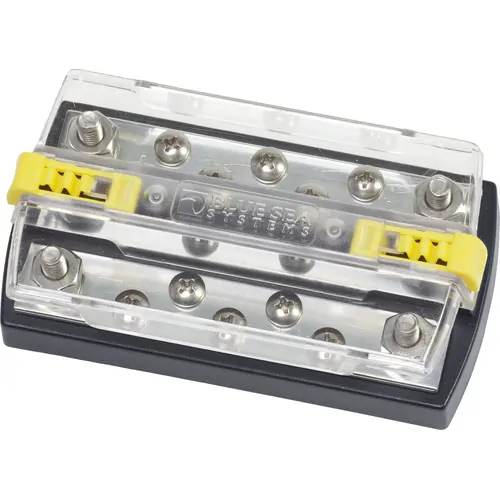

Blue Sea Systems Dualbus Plus 150A Busbar 5 Terminal 5/16
SKU: BS-2723
More infoMake 4 payments of $16.00 over 8 weeks and get it now!
Calculate Shipping
Description
- Combines negative and positive buses on one block
- Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus |
| Number of Terminal Studs | 2 per bus |
| Terminal Type | #10-32 Screw 5/16" Stud |
| Continuous Rating |
130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material | Clear Polycarbonate |
| Mounting Screw | #10 (M5) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.61lb (0.28 kg) |
| Weight | 0.61lb (0.28 kg) |
Specifications
| SKU | BS-2723 |
|---|---|
| Barcode # | OEBC527495 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0500kg |
