Features

DualBus 100A BusBar – 5 Circuit

  • Combines negative and positive buses on one block.

Specifications

DualBus 100A BusBar – 5 Circuit
Maximum Voltage 300V AC 48V DC
Number of Screw Terminals 5 per bus
Terminal Type #8-32 Screw
Continuous Rating 100A
Base Material ABS
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Height 5⁄8 in (15.88 mm)
Weight 0.1 kg

Note: Specifications subject to change without notice.

SKU BS-2701
Barcode # OEBC527486
Brand Blue Sea Systems
Shipping Weight 0.0800kg

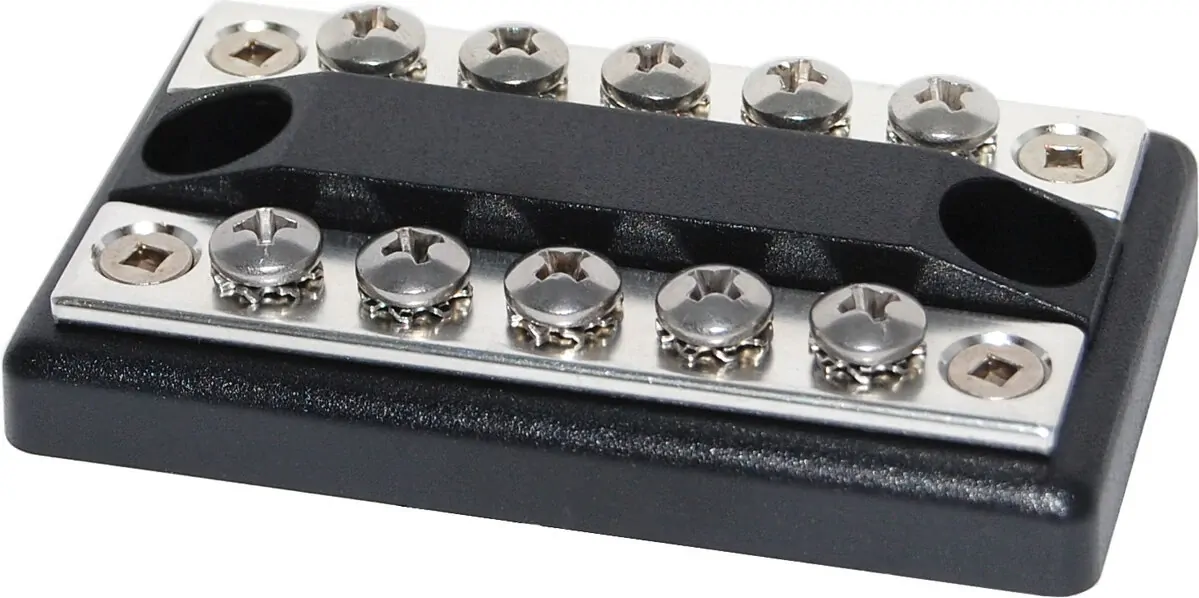

Blue Sea Systems Dualbus 100A Busbar - 5 Circuit

SKU: BS-2701
In Stock
In stock
Sale price
$32.99
PayPal Checkout
4 payments of $8.25

afterpay More info.

Make 4 payments of $8.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $8.25

Calculate Shipping

Features

DualBus 100A BusBar – 5 Circuit

  • Combines negative and positive buses on one block.

Specifications

DualBus 100A BusBar – 5 Circuit
Maximum Voltage 300V AC 48V DC
Number of Screw Terminals 5 per bus
Terminal Type #8-32 Screw
Continuous Rating 100A
Base Material ABS
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Height 5⁄8 in (15.88 mm)
Weight 0.1 kg

Note: Specifications subject to change without notice.

SKU BS-2701
Barcode # OEBC527486
Brand Blue Sea Systems
Shipping Weight 0.0800kg
