Description
Features

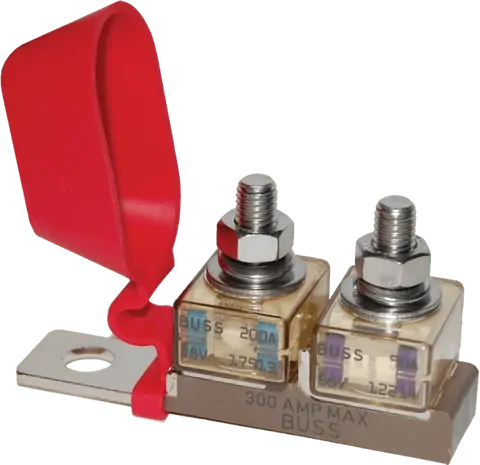

Dual MRBF Terminal Fuse Block – 30 to 300A
- Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems’ MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts

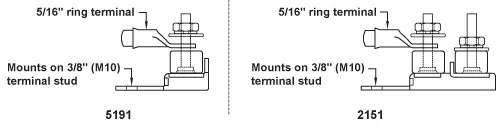

- Accepts 5∕16″ ring terminals
- Fuse sold separately
Specifications
| Dual MRBF Terminal Fuse Block – 30 to 300A | |
|---|---|
| Maximum Amperage | 300A |
| Maximum Voltage | 58V DC |
| Maximum Torque | 75 in-lb (8.47 Nm) |
| Terminal Stud | M8 (5/16″) |
| Weight | 0.14 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-2151 |
|---|---|
| Barcode # | OEBC527359 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.2000kg |

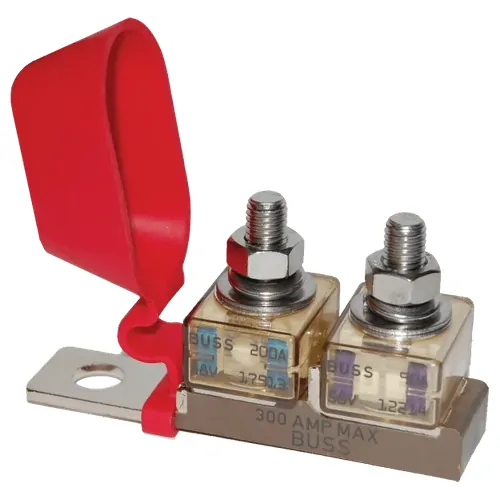

Blue Sea Systems Dual Mrbf Terminal Fuse Block - 30 To 300A
SKU: BS-2151
In stock
More infoMake 4 payments of $17.25 over 8 weeks and get it now!
Calculate Shipping
Description
Features
Dual MRBF Terminal Fuse Block – 30 to 300A
- Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems’ MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts
- Accepts 5∕16″ ring terminals
- Fuse sold separately
Specifications
| Dual MRBF Terminal Fuse Block – 30 to 300A | |
|---|---|
| Maximum Amperage | 300A |
| Maximum Voltage | 58V DC |
| Maximum Torque | 75 in-lb (8.47 Nm) |
| Terminal Stud | M8 (5/16″) |
| Weight | 0.14 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-2151 |
|---|---|
| Barcode # | OEBC527359 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.2000kg |
