Description
Features

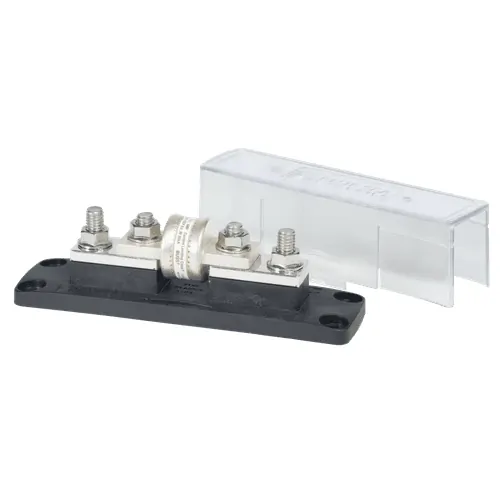

Class T Fuse Block with Insulating Cover – 225 to 400A
- The fuse system recommended by most inverter manufacturers for high speed response to short circuits
- Clear insulating cover, satisfies ABYC/USCG requirements
- For use on systems up to 160 Volts DC
- Large 3/8″-16 stud terminals accept ring terminals for wire up to 4/0 AWG
- Large heat dissipating tin-plated copper mounting blocks
- Two # 8 accessory terminals located on each end
- Fuse sold separately
Specifications
| Class T Fuse Block with Insulating Cover – 225 to 400A | |
|---|---|
| Maximum Amperage | 400A |
| Maximum Voltage | 160V DC |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Cable Size | 4/0 AWG |
| Maximum Torque | 190 in-lb (21.47 Nm) |
| Mounting Holes | Accept 1/4 (M6) Screw |
| Terminal Stud Size | 3/8″ – 16 (M10) |
| Weight | 0.05 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-5502 |
|---|---|
| Barcode # | OEBC527372 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0500kg |
Blue Sea Systems Class T Fuse Block With Insulating Cover - 225 To 400A
SKU: BS-5502
