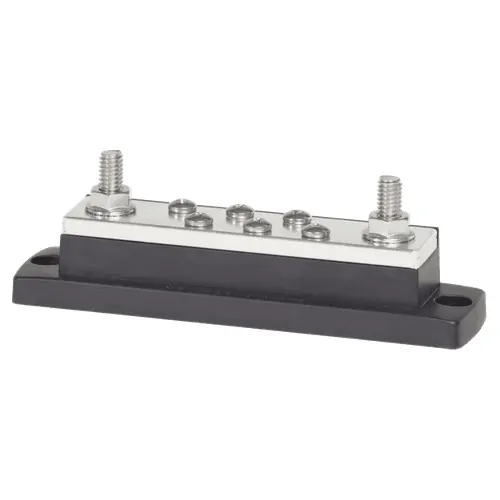

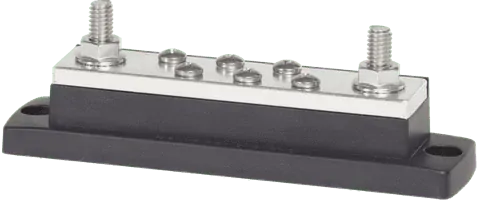

Description
- Busbars are used to consolidate multiple wires or feed multiple circuits
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 6 |
| Number of Terminal Studs | 2 |
| Terminal Type | #10-24 Screw 5/16"-18 Stud |
Continuous Rating  |
250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Screw Torque | 23 in-lb (2.6 N·m) |
| Recommended Stud Torque | 132 in-lb (14.91 N·m) |
| Weight | 0.65lb (0.29 kg) |
| Weight | 0.80lb (0.36 kg) |
Specifications
| SKU | BS-2128 |
|---|---|
| Barcode # | OEBC527473 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0500kg |
