Description
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | 1/4" Stud |
Continuous Rating  |
130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Stud Torque | 60 in-lb (6.78 Nm) |
| Weight | 0.35lb (0.16 kg) |
| Weight | 0.35lb (0.16 kg) |
Specifications
| SKU | BS-2303 |
|---|---|
| Barcode # | OEBC527477 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.1600kg |

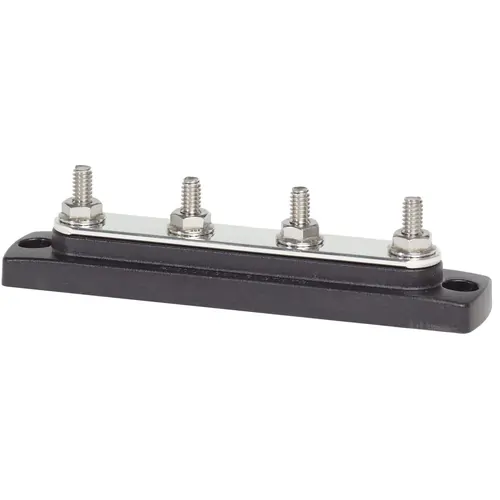

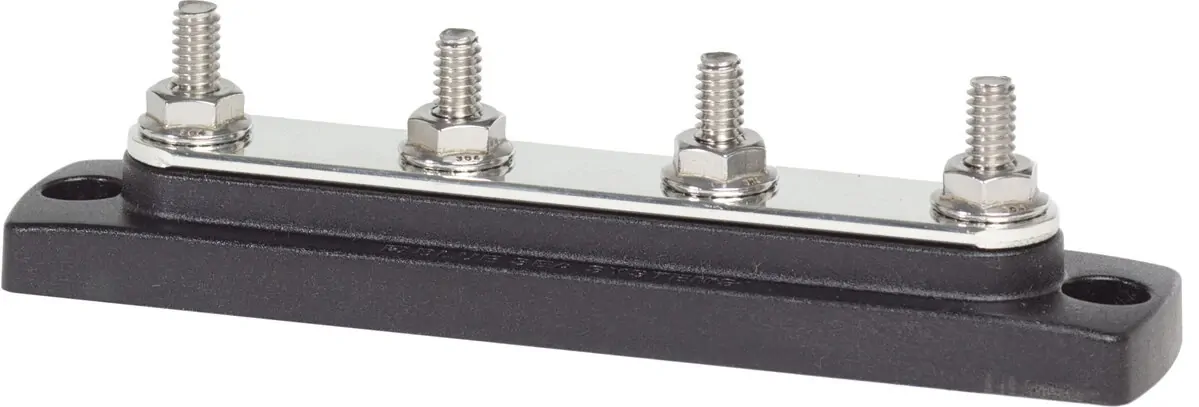

Blue Sea Systems Busbar 150A 4 X 1/4In-20 Stud
SKU: BS-2303
In stock
Sale price
$34.00
More infoMake 4 payments of $8.50 over 8 weeks and get it now!
Calculate Shipping
Description
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | 1/4" Stud |
| Continuous Rating |
130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Stud Torque | 60 in-lb (6.78 Nm) |
| Weight | 0.35lb (0.16 kg) |
| Weight | 0.35lb (0.16 kg) |
Specifications
| SKU | BS-2303 |
|---|---|
| Barcode # | OEBC527477 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.1600kg |
