Description
- Great for limited space applications
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | #10-32 Stud |
Continuous Rating  |
100A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110/ UNS11000 |
| Stud Torque | 18 in-lb (2.03 Nm) |
| Weight | 0.15lb (0.07 kg) |
| Weight | 0.16lb (0.07 kg) |
Specifications
| SKU | BS-2305 |
|---|---|
| Barcode # | OEBC527479 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.1000kg |

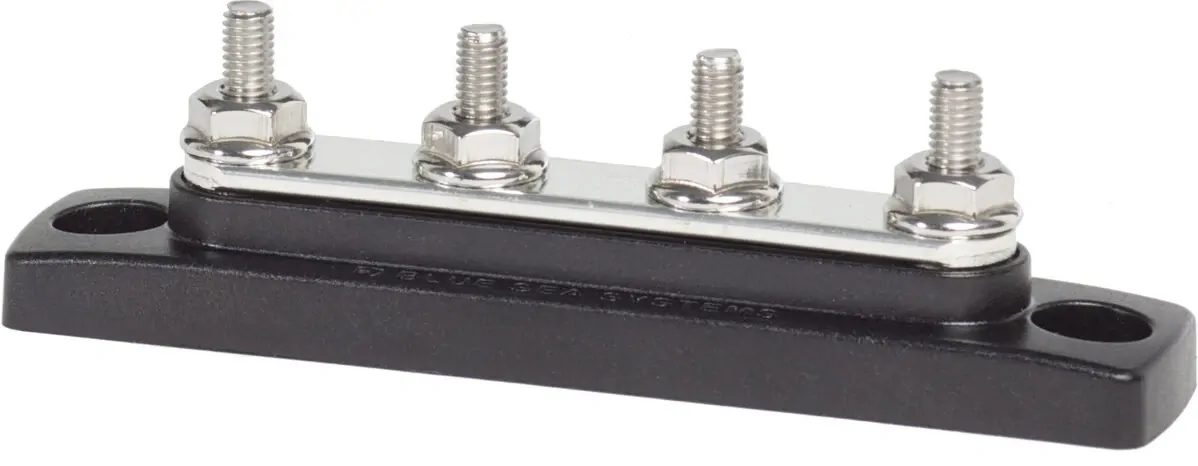

Blue Sea Systems Busbar 100A 4 Terminal
SKU: BS-2305
In stock
SALE ENDS
More infoMake 4 payments of $6.25 over 8 weeks and get it now!
Calculate Shipping
Description
- Great for limited space applications
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | #10-32 Stud |
| Continuous Rating |
100A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110/ UNS11000 |
| Stud Torque | 18 in-lb (2.03 Nm) |
| Weight | 0.15lb (0.07 kg) |
| Weight | 0.16lb (0.07 kg) |
Specifications
| SKU | BS-2305 |
|---|---|
| Barcode # | OEBC527479 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.1000kg |
