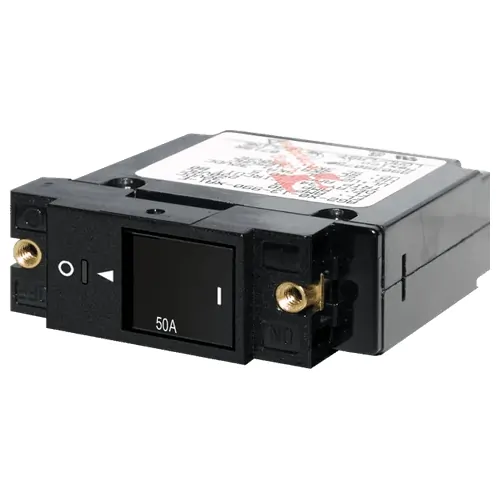

Blue Sea Systems A-Series Rocker Circuit Breaker 50A

Part Listings

Part #	Rocker Actuator	DC Amps	AC Amps
Single Pole
BS-7400	Flat	5A DC	5A AC
BS-7425	Restricted-OFF	5A DC	5A AC
BS-7401	Flat	8A DC	8A AC
BS-7402	Flat	10A DC	10A AC
BS-7427	Restricted-OFF	10A DC	10A AC
BS-7403	Flat	15A DC	15A AC
BS-7428	Restricted-OFF	15A DC	15A AC
BS-7404	Flat	20A DC	20A AC
BS-7429	Restricted-OFF	20A DC	20A AC
BS-7405	Flat	25A DC	25A AC
BS-7430	Restricted-OFF	25A DC	25A AC
BS-7406	Flat	30A DC	30A AC
BS-7407	Flat	40A DC	40A AC
BS-7408	Flat	50A DC	50A AC
BS-7433	Restricted-OFF	50A DC	50A AC
Double Pole
BS-7410	Flat	10A DC	10A AC
BS-7411	Flat	15A DC	15A AC
BS-7412	Flat	16A DC	16A AC
BS-7413	Flat	20A DC	20A AC
BS-7574	Raised	30A DC	30A AC
BS-7414	Flat	30A DC	30A AC
BS-7575	Raised	32A DC	32A AC
BS-7415	Flat	32A DC	32A AC
BS-7416	Flat	40A DC	40A AC
BS-7577	Raised	50A DC	50A AC
BS-7417	Flat	50A DC	50A AC

A-Series Rocker Circuit Breakers
Maximum Voltage	250V AC 32V DC
Circuit Breaker Type	Magnetic Hydraulic – trip free
Interrupt Capacity	3000A @ 125V AC 1500A @ 250V AC 5000A @ 32V DC
Minimum Operating Temp	-40° C
Maximum Operating Temp	85° C
Switching Cycles	10000
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Terminal Screw	#10-32 Stainless Steel
Weight	0.01 kg

Note: Specifications subject to change without notice.

$39.99

SAVE $1.01

DON'T PAY RRP $41.00

Part #	Rocker Actuator	DC Amps	AC Amps
Single Pole
BS-7400	Flat	5A DC	5A AC
BS-7425	Restricted-OFF	5A DC	5A AC
BS-7401	Flat	8A DC	8A AC
BS-7402	Flat	10A DC	10A AC
BS-7427	Restricted-OFF	10A DC	10A AC
BS-7403	Flat	15A DC	15A AC
BS-7428	Restricted-OFF	15A DC	15A AC
BS-7404	Flat	20A DC	20A AC
BS-7429	Restricted-OFF	20A DC	20A AC
BS-7405	Flat	25A DC	25A AC
BS-7430	Restricted-OFF	25A DC	25A AC
BS-7406	Flat	30A DC	30A AC
BS-7407	Flat	40A DC	40A AC
BS-7408	Flat	50A DC	50A AC
BS-7433	Restricted-OFF	50A DC	50A AC
Double Pole
BS-7410	Flat	10A DC	10A AC
BS-7411	Flat	15A DC	15A AC
BS-7412	Flat	16A DC	16A AC
BS-7413	Flat	20A DC	20A AC
BS-7574	Raised	30A DC	30A AC
BS-7414	Flat	30A DC	30A AC
BS-7575	Raised	32A DC	32A AC
BS-7415	Flat	32A DC	32A AC
BS-7416	Flat	40A DC	40A AC
BS-7577	Raised	50A DC	50A AC
BS-7417	Flat	50A DC	50A AC

A-Series Rocker Circuit Breakers
Maximum Voltage	250V AC 32V DC
Circuit Breaker Type	Magnetic Hydraulic – trip free
Interrupt Capacity	3000A @ 125V AC 1500A @ 250V AC 5000A @ 32V DC
Minimum Operating Temp	-40° C
Maximum Operating Temp	85° C
Switching Cycles	10000
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Terminal Screw	#10-32 Stainless Steel
Weight	0.01 kg
