Blue Sea Systems

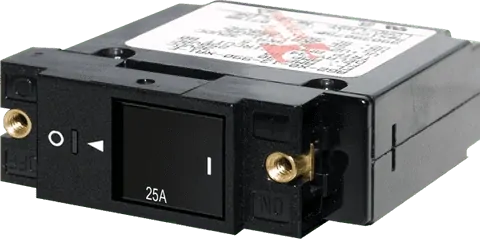

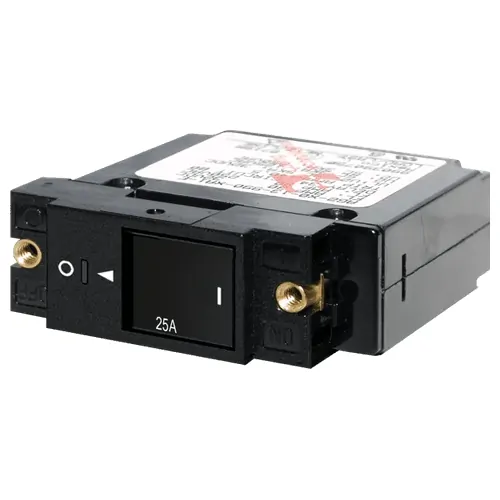

Blue Sea Systems A-Series Rocker Circuit Breaker 25A

Part Listings

Part #Rocker ActuatorDC AmpsAC Amps
Single Pole
BS-7400Flat5A DC5A AC
BS-7425Restricted-OFF5A DC5A AC
BS-7401Flat8A DC8A AC
BS-7402Flat10A DC10A AC
BS-7427Restricted-OFF10A DC10A AC
BS-7403Flat15A DC15A AC
BS-7428Restricted-OFF15A DC15A AC
BS-7404Flat20A DC20A AC
BS-7429Restricted-OFF20A DC20A AC
BS-7405Flat25A DC25A AC
BS-7430Restricted-OFF25A DC25A AC
BS-7406Flat30A DC30A AC
BS-7407Flat40A DC40A AC
BS-7408Flat50A DC50A AC
BS-7433Restricted-OFF50A DC50A AC
Double Pole
BS-7410Flat10A DC10A AC
BS-7411Flat15A DC15A AC
BS-7412Flat16A DC16A AC
BS-7413Flat20A DC20A AC
BS-7574Raised30A DC30A AC
BS-7414Flat30A DC30A AC
BS-7575Raised32A DC32A AC
BS-7415Flat32A DC32A AC
BS-7416Flat40A DC40A AC
BS-7577Raised50A DC50A AC
BS-7417Flat50A DC50A AC

Specifications

A-Series Rocker Circuit Breakers
Maximum Voltage250V AC
32V DC
Circuit Breaker TypeMagnetic Hydraulic – trip free
Interrupt Capacity3000A @ 125V AC
1500A @ 250V AC
5000A @ 32V DC
Minimum Operating Temp-40° C
Maximum Operating Temp85° C
Switching Cycles10000
Mounting Screw#6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Screw Terminal Torque14 in-lb (1.58 Nm)
Terminal Screw#10-32 Stainless Steel
Weight0.01 kg

Note: Specifications subject to change without notice.

SKU BS-7430
Barcode # OEBC527310
Brand Blue Sea Systems
Shipping Weight 0.4500kg

Blue Sea Systems A-Series Rocker Circuit Breaker 25A

SKU: BS-7430
Sold out
Sale price
$39.99
SAVE $1.01
RRP $41.00
Earn 390 Outback Rewards Points
Notify me
Sale price
$39.99
SAVE $1.01
DON'T PAY RRP $41.00
Notify me
PayPal Checkout
4 payments of $10.00

afterpay More info.

Make 4 payments of $10.00 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $10.00

Calculate Shipping
