Part Listings
Part # | Rocker Actuator | DC Amps | AC Amps |
---|---|---|---|
Single Pole | |||
BS-7400 | Flat | 5A DC | 5A AC |
BS-7425 | Restricted-OFF | 5A DC | 5A AC |
BS-7401 | Flat | 8A DC | 8A AC |
BS-7402 | Flat | 10A DC | 10A AC |
BS-7427 | Restricted-OFF | 10A DC | 10A AC |
BS-7403 | Flat | 15A DC | 15A AC |
BS-7428 | Restricted-OFF | 15A DC | 15A AC |
BS-7404 | Flat | 20A DC | 20A AC |
BS-7429 | Restricted-OFF | 20A DC | 20A AC |
BS-7405 | Flat | 25A DC | 25A AC |
BS-7430 | Restricted-OFF | 25A DC | 25A AC |
BS-7406 | Flat | 30A DC | 30A AC |
BS-7407 | Flat | 40A DC | 40A AC |
BS-7408 | Flat | 50A DC | 50A AC |
BS-7433 | Restricted-OFF | 50A DC | 50A AC |
Double Pole | |||
BS-7410 | Flat | 10A DC | 10A AC |
BS-7411 | Flat | 15A DC | 15A AC |
BS-7412 | Flat | 16A DC | 16A AC |
BS-7413 | Flat | 20A DC | 20A AC |
BS-7574 | Raised | 30A DC | 30A AC |
BS-7414 | Flat | 30A DC | 30A AC |
BS-7575 | Raised | 32A DC | 32A AC |
BS-7415 | Flat | 32A DC | 32A AC |
BS-7416 | Flat | 40A DC | 40A AC |
BS-7577 | Raised | 50A DC | 50A AC |
BS-7417 | Flat | 50A DC | 50A AC |
Specifications
A-Series Rocker Circuit Breakers | |
---|---|
Maximum Voltage | 250V AC 32V DC |
Circuit Breaker Type | Magnetic Hydraulic – trip free |
Interrupt Capacity | 3000A @ 125V AC 1500A @ 250V AC 5000A @ 32V DC |
Minimum Operating Temp | -40° C |
Maximum Operating Temp | 85° C |
Switching Cycles | 10000 |
Mounting Screw | #6-32 Stainless Steel |
Mounting Screw Torque | 6 in-lb (0.68 Nm) |
Screw Terminal Torque | 14 in-lb (1.58 Nm) |
Terminal Screw | #10-32 Stainless Steel |
Weight | 0.01 kg |
Note: Specifications subject to change without notice.
SKU | BS-7403 |
---|---|
Barcode # | OEBC527292 |
Brand | Blue Sea Systems |
Shipping Weight | 0.4500kg |
Part Listings
Part # | Rocker Actuator | DC Amps | AC Amps |
---|---|---|---|
Single Pole | |||
BS-7400 | Flat | 5A DC | 5A AC |
BS-7425 | Restricted-OFF | 5A DC | 5A AC |
BS-7401 | Flat | 8A DC | 8A AC |
BS-7402 | Flat | 10A DC | 10A AC |
BS-7427 | Restricted-OFF | 10A DC | 10A AC |

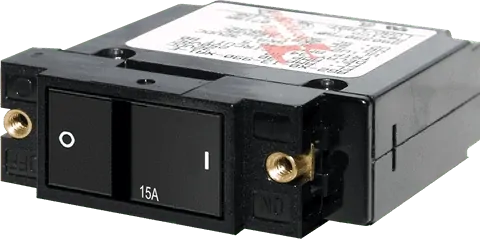

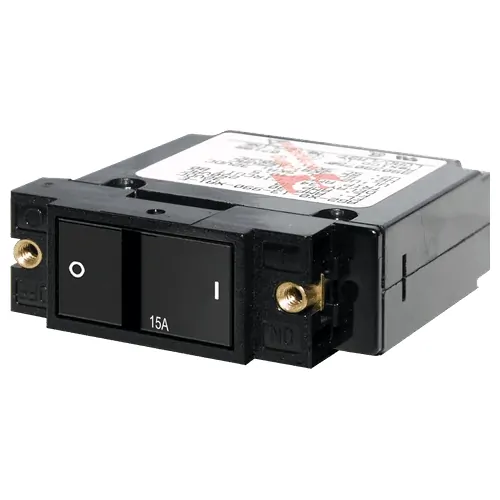

BS-7403 | Flat | 15A DC | 15A AC |
