Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Specifications | |
|---|---|
| Circuits | 8 |
| Length | 6.63in (168.4 mm) |
| Maximum Voltage | 600V AC/DC |
Continuous Rating  |
65A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Size | #10-32 |
| Screw Terminal Torque | 17.5 in-lb (1.98 Nm) |
| Terminal Screws | M5 |
| Wire Terminal Size | #10 [M5] |
| Weight | 0.43lb (0.2 kg) |
| Weight | 0.43lb (0.2 kg) |
Specifications
| SKU | BS-2608 |
|---|---|
| Barcode # | OEBC527460 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.1200kg |

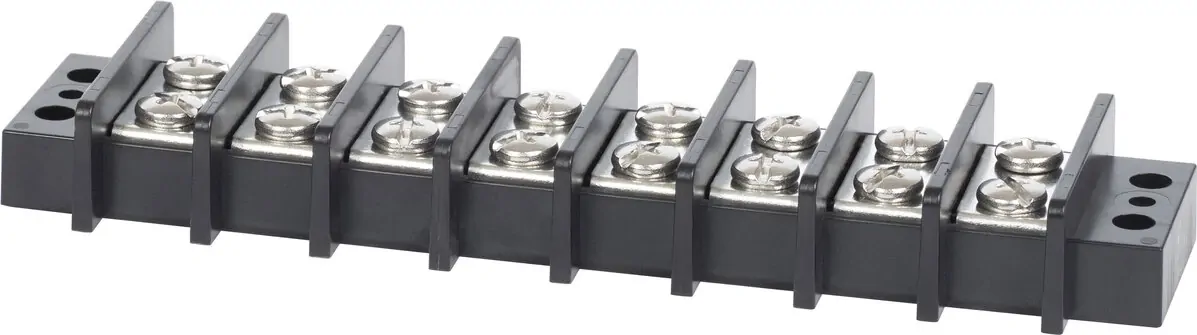

Blue Sea Systems 65A Terminal Block 8 Circuit
SKU: BS-2608
In stock
Sale price
REG $39.00
SALE ENDS
In Stock — Ships in 1 to 3 Days
More infoMake 4 payments of $8.75 over 8 weeks and get it now!
