• Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 6
Length 5.26in (133.6 mm)
Maximum Voltage 600V AC/DC
Continuous Rating  65A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #10 [M5]
Screw Material Stainless Steel
Screw Size #10-32
Screw Terminal Torque 17.5 in-lb (1.98 Nm)
Terminal Screws M5
Wire Terminal Size #10 [M5]
Weight 0.34lb (0.15 kg)
Weight 0.34lb (0.15 kg)
SKU BS-2606
Barcode # OEBC527459
Brand Blue Sea Systems
Shipping Weight 0.1100kg

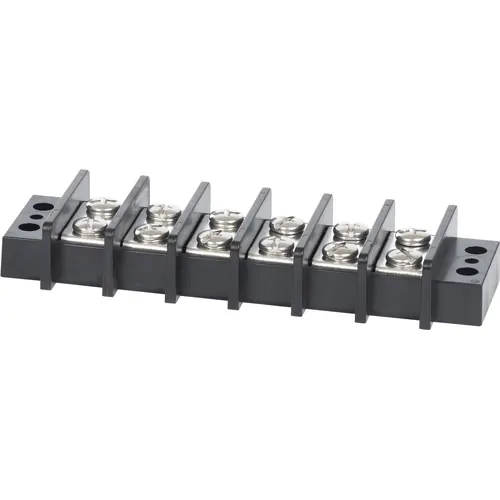

Blue Sea Systems 65A Terminal Block 6 Circuit

SKU: BS-2606
Sale price
$32.49
RRP $34.00
Earn 320 Outback Rewards Points
Sale price
$32.49
DON'T PAY RRP $34.00
PayPal Checkout
4 payments of $8.12

afterpay More info.

Make 4 payments of $8.12 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $8.12

Calculate Shipping

  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 6
Length 5.26in (133.6 mm)
Maximum Voltage 600V AC/DC
Continuous Rating  65A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #10 [M5]
Screw Material Stainless Steel
Screw Size #10-32
Screw Terminal Torque 17.5 in-lb (1.98 Nm)
Terminal Screws M5
Wire Terminal Size #10 [M5]
Weight 0.34lb (0.15 kg)
Weight 0.34lb (0.15 kg)
SKU BS-2606
Barcode # OEBC527459
Brand Blue Sea Systems
Shipping Weight 0.1100kg
