Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Specifications | |
|---|---|
| Circuits | 8 |
| Length | 5.50in (139.7 mm) |
| Maximum Voltage | 600V AC/DC |
Continuous Rating  |
30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
| Weight | 0.27lb (0.12 kg) |
| Weight | 0.27lb (0.12 kg) |
Specifications
| SKU | BS-2508 |
|---|---|
| Barcode # | OEBC527454 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.1200kg |

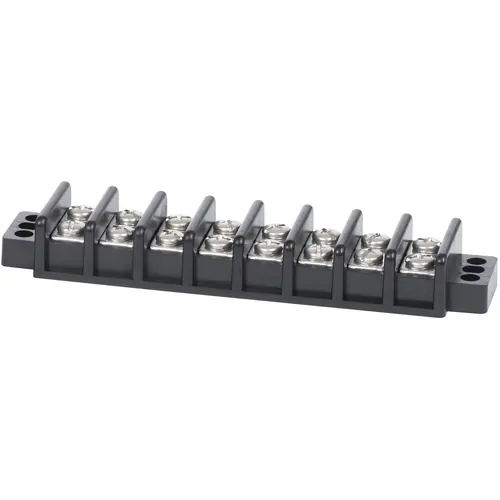

Blue Sea Systems 30A Terminal Block 8 Circuit
SKU: BS-2508
Sale price
$24.00
More infoMake 4 payments of $6.00 over 8 weeks and get it now!
Calculate Shipping
Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Specifications | |
|---|---|
| Circuits | 8 |
| Length | 5.50in (139.7 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating |
30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
| Weight | 0.27lb (0.12 kg) |
| Weight | 0.27lb (0.12 kg) |
Specifications
| SKU | BS-2508 |
|---|---|
| Barcode # | OEBC527454 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.1200kg |
