• Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 6
Length 4.38in (111.25 mm)
Maximum Voltage 600V AC/DC
Continuous Rating  30A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #10 [M5]
Screw Material Stainless Steel
Screw Terminal Torque 10 in-lb (1.13 Nm)
Terminal Screws M4
Wire Terminal Size #8 [M4]
Weight 0.21lb (0.1 kg)
Weight 0.21lb (0.1 kg)
SKU BS-2506
Barcode # OEBC527453
Brand Blue Sea Systems
Shipping Weight 0.1000kg

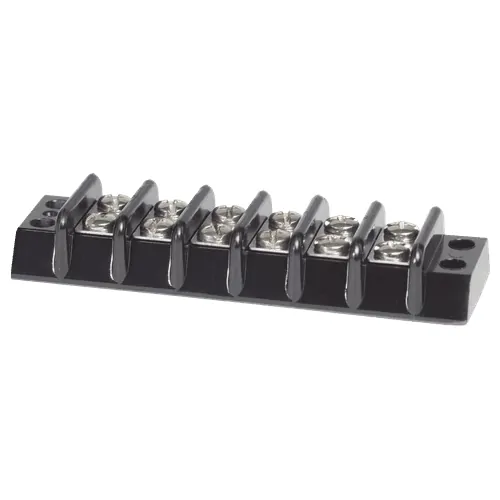

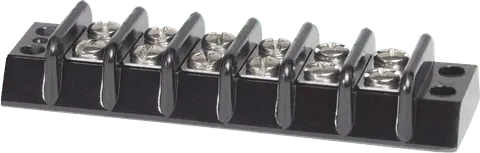

Blue Sea Systems 30A Terminal Block 6 Circuit

SKU: BS-2506
Sale price
$14.00
Earn 140 GEAR'd Points
Ships in 7 days (Christmas delays possible)
Sale price
$14.00
PayPal Checkout
4 payments of $3.50

afterpay More info.

Make 4 payments of $3.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $3.50
Humm

Calculate Shipping
