Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Specifications | |
|---|---|
| Circuits | 8 |
| Length | 3.66in (92.96 mm) |
| Maximum Voltage | 300V AC/DC |
Continuous Rating  |
20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.10lb (0.05 kg) |
| Weight | 0.10lb (0.05 kg) |
Specifications
| SKU | BS-2408 |
|---|---|
| Barcode # | OEBC527449 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0900kg |

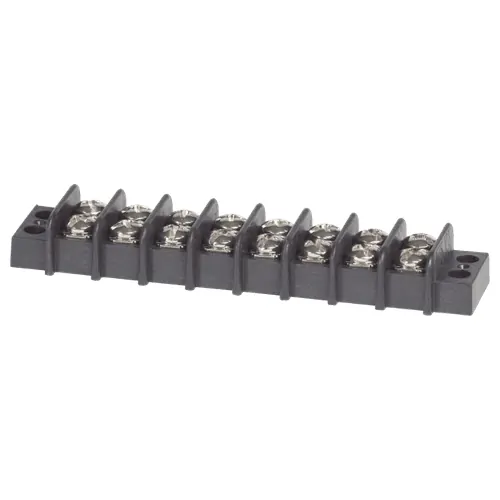

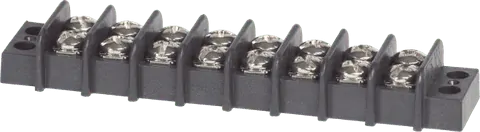

Blue Sea Systems 20A Terminal Block 8 Circuit
SKU: BS-2408
Sale price
$15.00
More infoMake 4 payments of $3.75 over 8 weeks and get it now!
Calculate Shipping
Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Specifications | |
|---|---|
| Circuits | 8 |
| Length | 3.66in (92.96 mm) |
| Maximum Voltage | 300V AC/DC |
| Continuous Rating |
20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.10lb (0.05 kg) |
| Weight | 0.10lb (0.05 kg) |
Specifications
| SKU | BS-2408 |
|---|---|
| Barcode # | OEBC527449 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0900kg |
