• Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 6
Length 2.91in (73.91 mm)
Maximum Voltage 300V AC/DC
Continuous Rating  20A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #6 [M3.5]
Screw Material Stainless Steel
Screw Terminal Torque 7 in-lb (0.79 Nm)
Terminal Screws M3.5
Wire Terminal Size #6 [M3]
Weight 0.08lb (0.04 kg)
Weight 0.08lb (0.04 kg)
SKU BS-2406
Barcode # OEBC527448
Brand Blue Sea Systems
Shipping Weight 0.0900kg

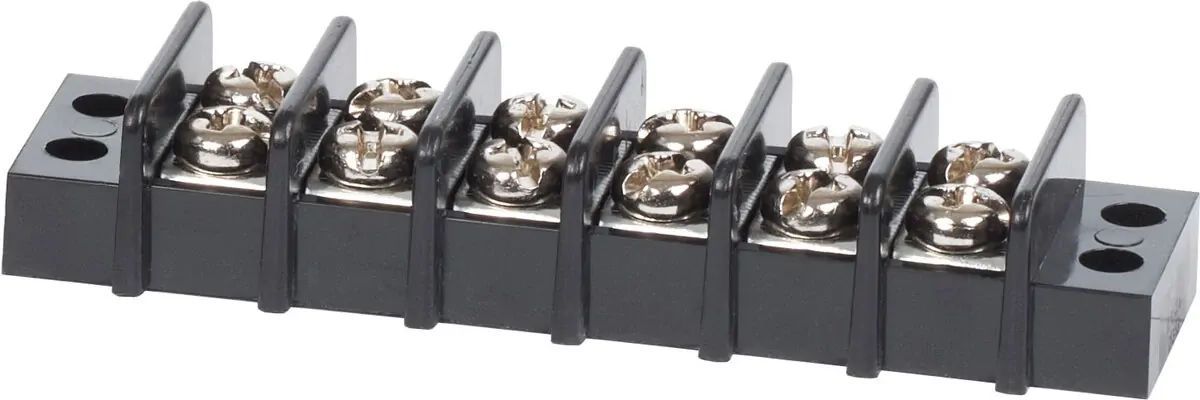

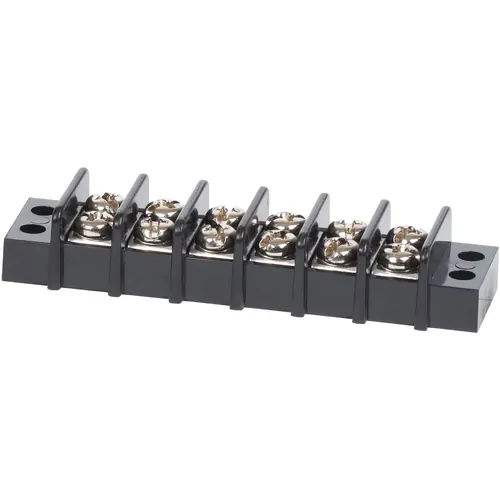

Blue Sea Systems 20A Terminal Block 6 Circuit

SKU: BS-2406
In Stock
In stock
Sale price
$8.00
RRP $14.00
Earn 80 Outback Rewards Points
Sale price
$8.00
DON'T PAY RRP $14.00
PayPal Checkout
4 payments of $2.00

afterpay More info.

Make 4 payments of $2.00 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $2.00

Calculate Shipping
