Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Specifications | |
|---|---|
| Circuits | 2 |
| Length | 1.43in (36.32 mm) |
| Maximum Voltage | 300V AC/DC |
Continuous Rating  |
20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.05lb (0.02 kg) |
| Weight | 0.05lb (0.02 kg) |
Specifications
| SKU | BS-2402 |
|---|---|
| Barcode # | OEBC527446 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.0800kg |

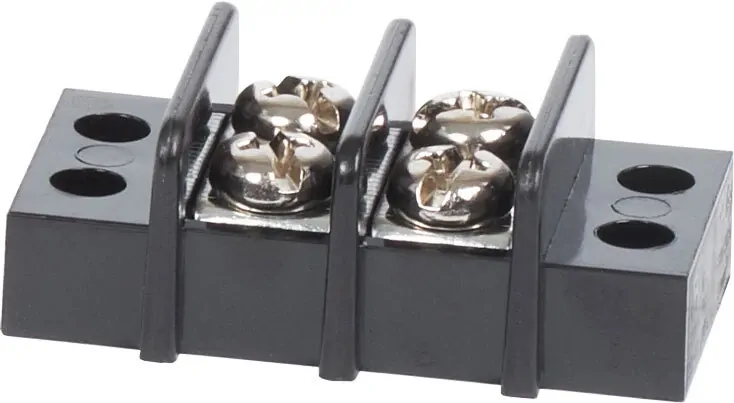

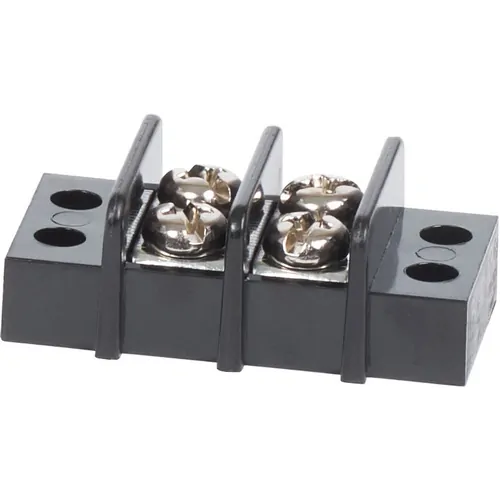

Blue Sea Systems 20A Terminal Block 2 Circuit
SKU: BS-2402
In stock
Sale price
$7.00
More infoMake 4 payments of $1.75 over 8 weeks and get it now!
Calculate Shipping
