Gone are the days of manually winding the jockey wheel to raise or lower the caravan or trailer.

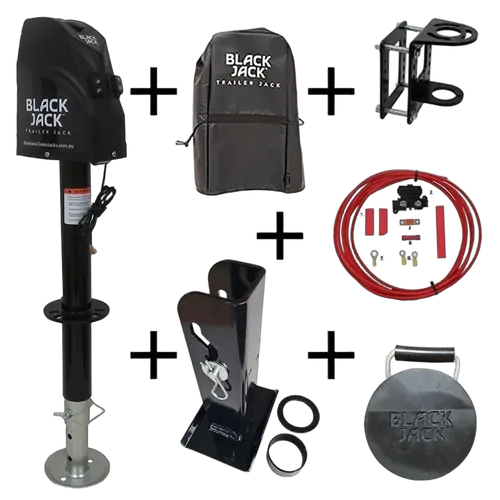

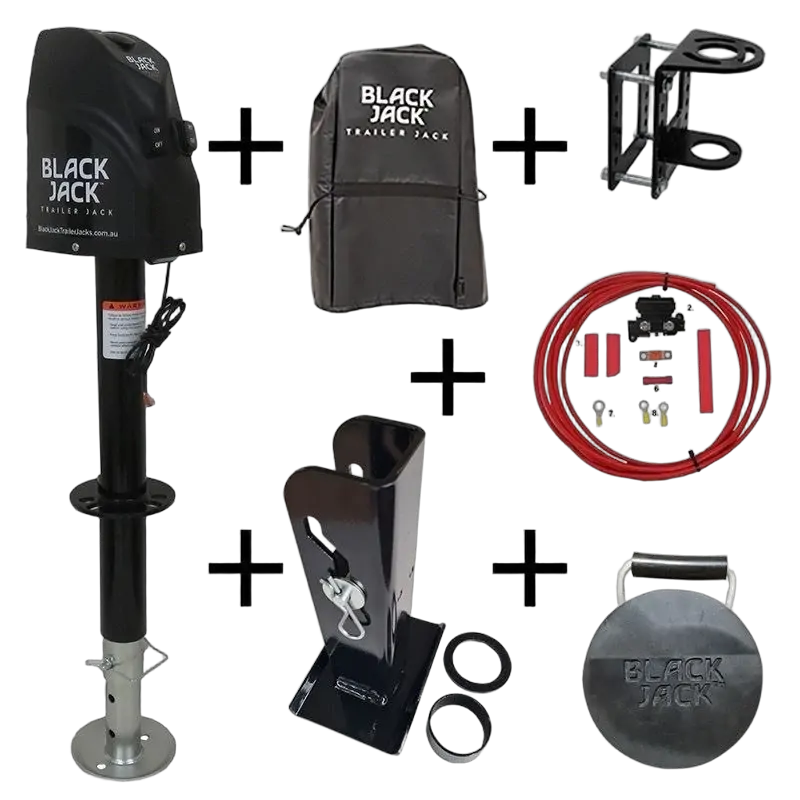

The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today. Easy DIY installation and insanely simple RAISE\LOWER switch operation.

Hugely popular in the USA, the Black Jack™ now comes complete with the all-weather cover, and the Black Jack Clamp™ (Australian Patent Pending) allowing uses the ability to easily bolted to the Caravan or Trailer A-Frame.

For easier and faster deployment or retraction the Black Jack™ includes the Black Jack™ Folding Foot providing no more bending down to adjust the foot extension height position. Also included is the Black Jack™ Foot Pad giving improved stability on soft or unstable surfaces.

For easy installation, the Black Jack™ installation wiring harness is also included (with BJTJ- 1001)

BLACK JACK TRAILER JACK KEY FEATURES:
• 1600 kg lifting capacity, more than enough muscle
• Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)

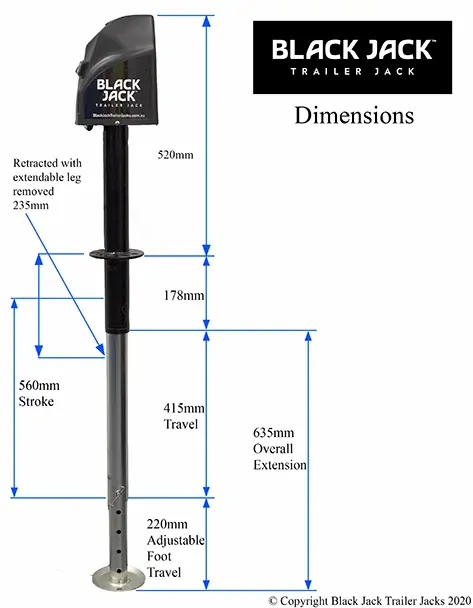

• Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
• Built in level indicator to easily adjust the caravan level after you unhitch
• Removable foot pad extension for travelling
• Tough powder coated finish

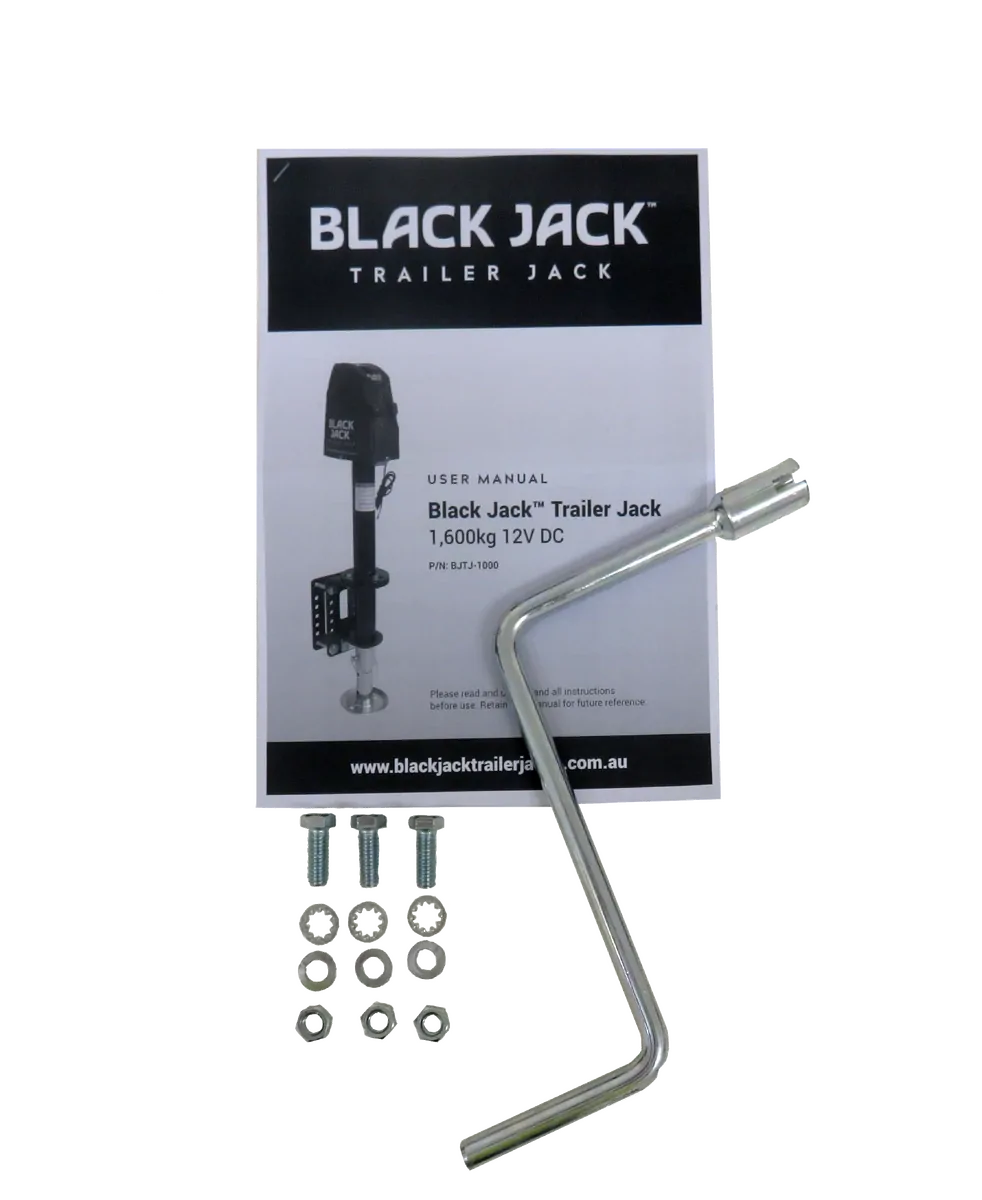

• Emergency crank handle included as an emergency back up
• Built in night light for operating after hours
• 12 volt 28 amp DC power plugs directly to 12 volt battery
• Free installation kit included, easy DIY Installation (with BJTJ – 1001)
• Free all weather cover to keep the rain out
• Total weight including Black Jack Clamp 17 kg

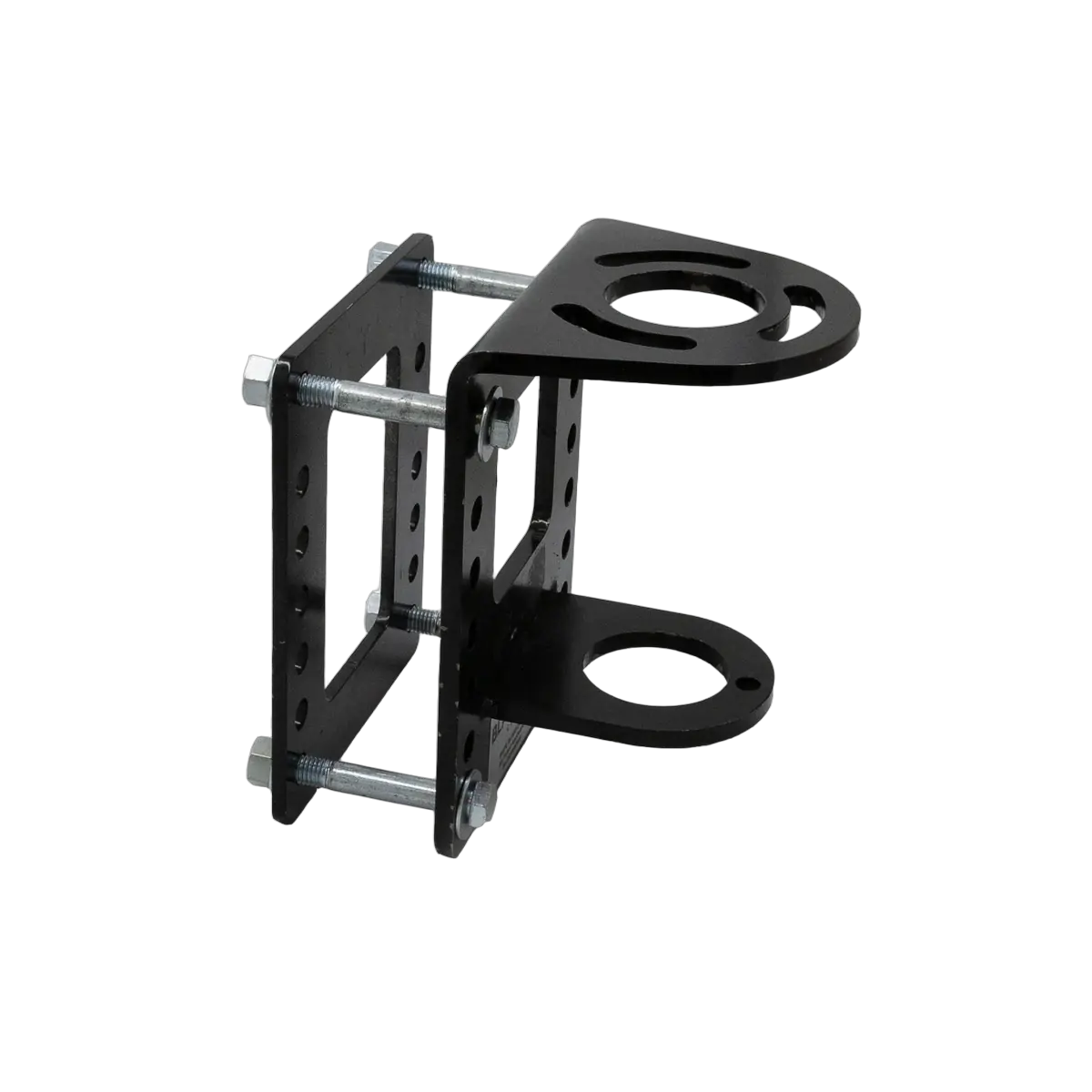

BLACK JACK CLAMP KEY FEATURES:

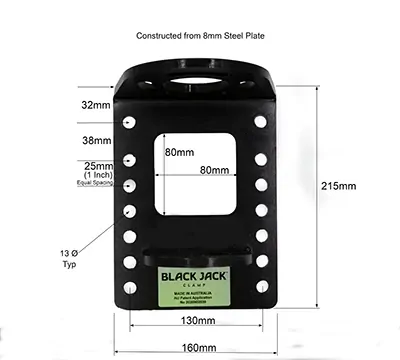

• 6 different chassis bolt hole positions so it fits any Caravan or trailer A-Frame in Australia (6 inch, 5 inch, 4 inch or 3 inch)
• Multiple top hole positions so the Black Jack can be installed facing the front, the side or the rear of the Caravan or trailer. Your choice!
• Panel recess so you can install over the top of existing wire fittings maximizing the options of where to install on the A-Frame.
• Safety chain insert hole so you can hang safety chains on the Black Jack Clamp.
• Upper support and a lower support brackets designed to eliminate any lateral movement that may be caused by uneven surfaces.
• Easy bolt installation. No additional modifications, welding or tools are required.
• Tough powder coated finish
• Australian Patent Pending (No. 2020902039)
• Registered Australian Design
• Assembled in Australia supporting Australian Jobs

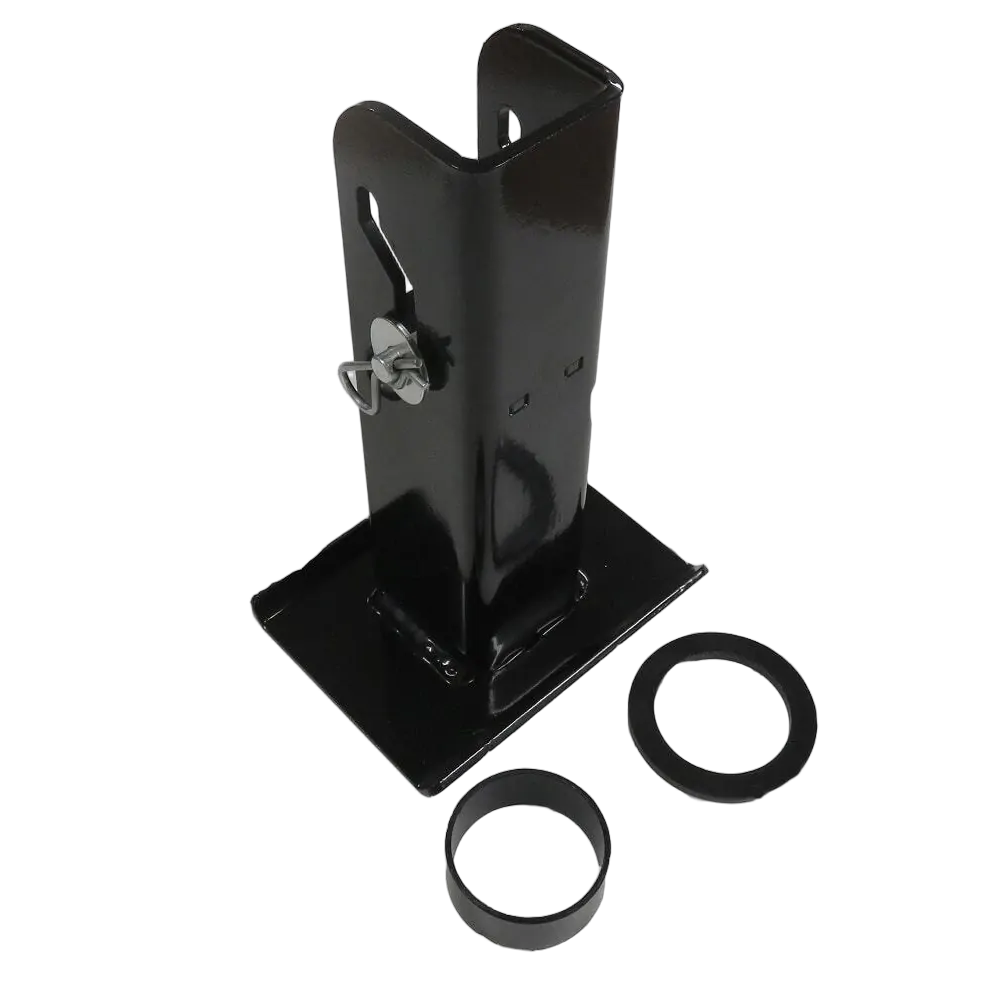

BLACK JACK FOLDING KEY FEATURES:
• Diameter Foot Plate: 15.2cm x 11.5cm
• Height: 25cm
• Weight: 2.2kg
• Maximum Load: 1,000kg

BLACK JACK TRAILER JACK FOOT PAD KEY FEATURES:
• Diameter: 20cm
• Height: 2.5cm
• Weight: 800grams
• Maximum Load: 1,000kg

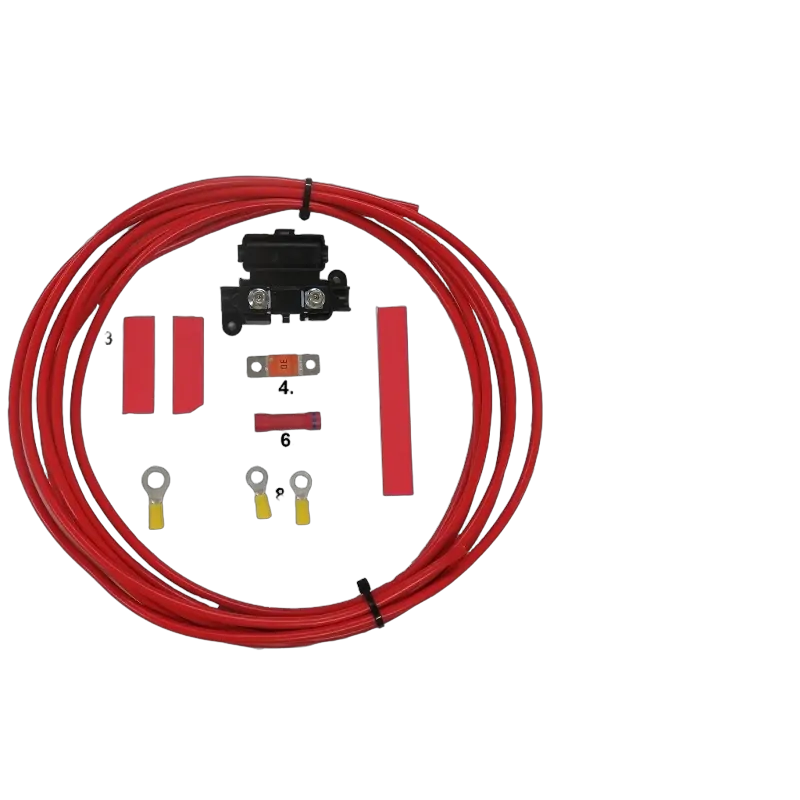

BLACK JACK DIY HARNESS INCLUDES:
• 5 m Battery Cable (7.92mm2) (8 B&S)
• Fuse Box
• 30 amp Inline Fuse
• 2 x 10-6 Fuse Lug Terminals
• Cable Crimp Connector
• 10-8 Battery Lug Terminal
• Heat Shrink
