Description
Cast 316 grade stainless steel fork and fork swivels. Welded nut pivot bolt. Drilled jaw pins for security tie wire.
Not SWL rated for lifting purposes.
| Part Number | Pin Diameter | Length (A) | Internal Width (B) | Internal Length (C) | Break Load |
|---|---|---|---|---|---|
| BLA-165494 | 6mm | 64mm | 12mm | 11mm | 1200kg |
| BLA-165496 | 8mm | 87mm | 16mm | 16mm | 1900kg |
| BLA-165498 | 10mm | 112mm | 20mm | 21mm | 3500kg |
| BLA-165500 | 12mm | 152mm | 26mm | 26mm | 5000kg |
Specifications
| SKU | 165494 |
|---|---|
| Barcode # | 9319786019610 |
| Brand | BLA |
| Shipping Weight | 0.0700kg |

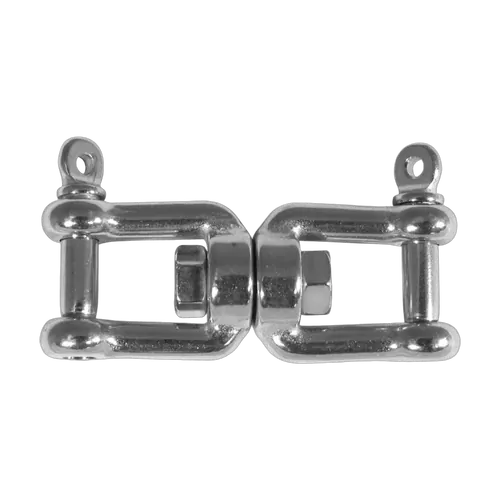

BLA Stainless Steel Fork & Fork Swivel G316 6mm
SKU: 165494
Sale price
$12.99
More infoMake 4 payments of $3.25 over 8 weeks and get it now!
Calculate Shipping
Description
Cast 316 grade stainless steel fork and fork swivels. Welded nut pivot bolt. Drilled jaw pins for security tie wire.
Not SWL rated for lifting purposes.
| Part Number | Pin Diameter | Length (A) | Internal Width (B) | Internal Length (C) | Break Load |
|---|---|---|---|---|---|
| BLA-165494 | 6mm | 64mm | 12mm | 11mm | 1200kg |
| BLA-165496 | 8mm | 87mm | 16mm | 16mm | 1900kg |
| BLA-165498 | 10mm | 112mm | 20mm | 21mm | 3500kg |
| BLA-165500 | 12mm | 152mm | 26mm | 26mm | 5000kg |
Specifications
| SKU | 165494 |
|---|---|
| Barcode # | 9319786019610 |
| Brand | BLA |
| Shipping Weight | 0.0700kg |
