Description
304 grade stainless steel eye bolt with rolled, welded eye.
One piece construction, supplied with nut and two washers.
| Part Number | Overall Length (B) | Thread (A) | Thread Length (C) | Bolt Diameter (D) | Break Load |
|---|---|---|---|---|---|
| BLA-165062 | 70mm | M6 | 45mm | 13mm | 1000kg |
| BLA-165064 | 90mm | M6 | 65mm | 13mm | 1000kg |
| BLA-165066 | 110mm | M6 | 85mm | 13mm | 1000kg |
| BLA-165068 | 118mm | M8 | 85mm | 17mm | 1800kg |
| BLA-165070 | 137mm | M8 | 105mm | 17mm | 1800kg |
| BLA-165071 | 130mm | M10 | 90mm | 21mm | 2400kg |
| BLA-165072 | 150mm | M10 | 110mm | 21mm | 2400kg |
| BLA-165074 | 135mm | M12 | 85mm | 25mm | 3500kg |
| BLA-165075 | 175mm | M12 | 125mm | 25mm | 3500kg |
Specifications
| SKU | 165062 |
|---|---|
| Barcode # | 9319786019085 |
| Brand | BLA |
| Shipping Weight | 0.0200kg |

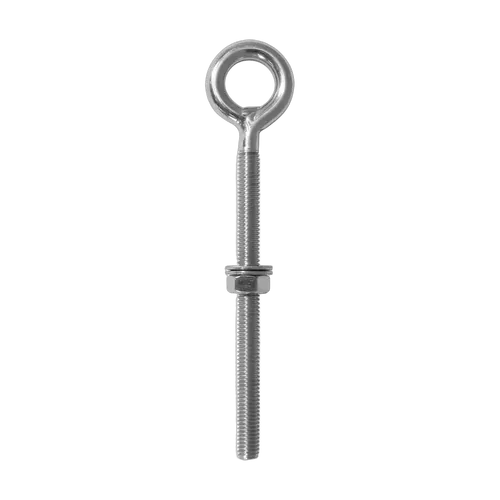

BLA Stainless Steel Eye Bolt G304 45mm M6
SKU: 165062
Sale price
$2.90
More infoMake 4 payments of $0.72 over 8 weeks and get it now!
Calculate Shipping
Description
304 grade stainless steel eye bolt with rolled, welded eye.
One piece construction, supplied with nut and two washers.
| Part Number | Overall Length (B) | Thread (A) | Thread Length (C) | Bolt Diameter (D) | Break Load |
|---|---|---|---|---|---|
| BLA-165062 | 70mm | M6 | 45mm | 13mm | 1000kg |
| BLA-165064 | 90mm | M6 | 65mm | 13mm | 1000kg |
| BLA-165066 | 110mm | M6 | 85mm | 13mm | 1000kg |
| BLA-165068 | 118mm | M8 | 85mm | 17mm | 1800kg |
| BLA-165070 | 137mm | M8 | 105mm | 17mm | 1800kg |
| BLA-165071 | 130mm | M10 | 90mm | 21mm | 2400kg |
| BLA-165072 | 150mm | M10 | 110mm | 21mm | 2400kg |
| BLA-165074 | 135mm | M12 | 85mm | 25mm | 3500kg |
| BLA-165075 | 175mm | M12 | 125mm | 25mm | 3500kg |
Specifications
| SKU | 165062 |
|---|---|
| Barcode # | 9319786019085 |
| Brand | BLA |
| Shipping Weight | 0.0200kg |
