Description

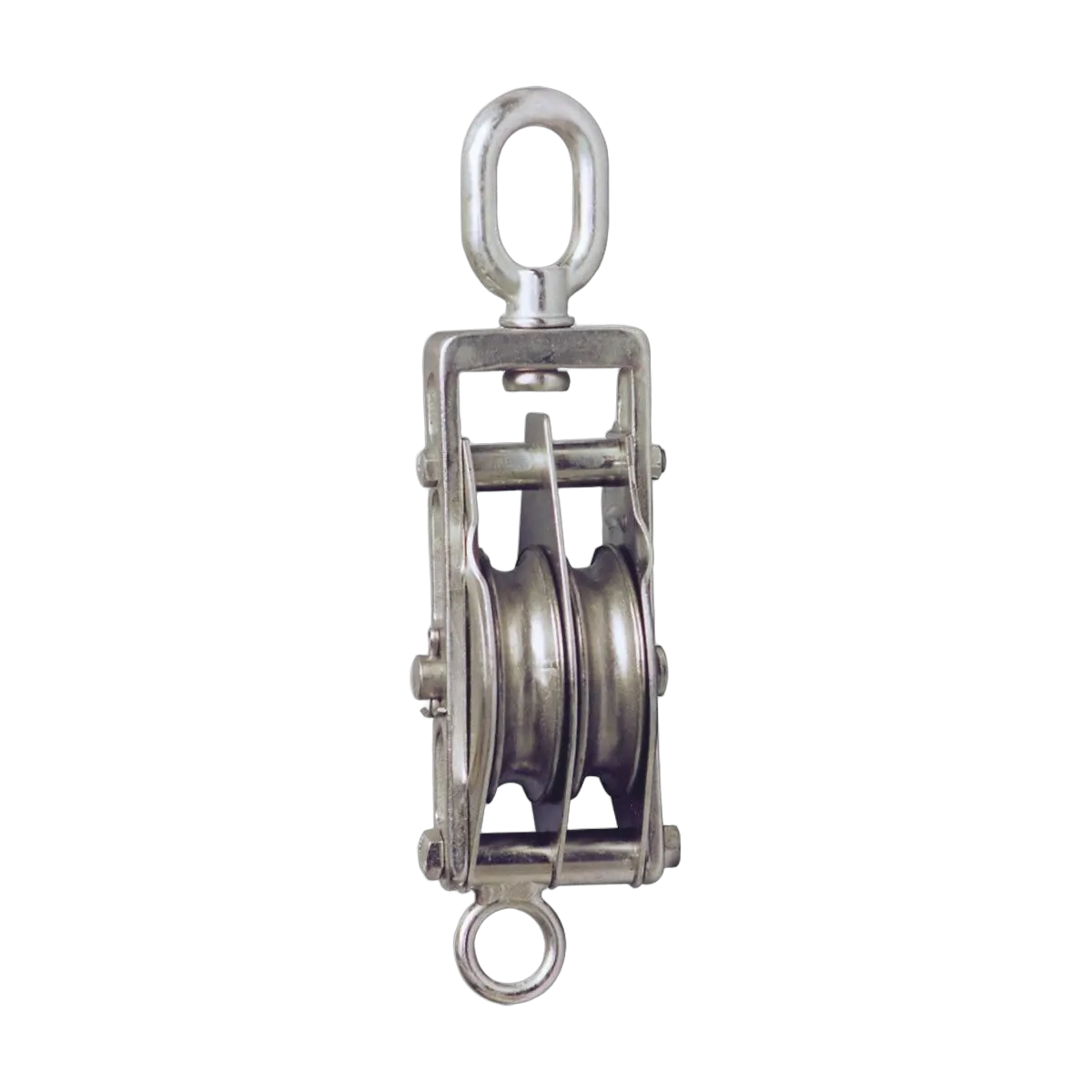

Heavy duty, 304 grade stainless steel trawl blocks with double, brass bushed stainless sheaves and swivelling bale head. Pressed cheeks. Heavy duty cast load straps.
Through bolted construction allows the block to be dismantled for installation and servicing. Welded ring becket.
| Part Number | Sheave Diameter | Maximum Rope Diameter | Length (A) | Width (B) | Sheave Width (C) | Swivel Diameter (D) | MWL |
|---|---|---|---|---|---|---|---|
| BLA-166594 | 75mm | 14mm | 255mm | 83mm | 74mm | 24mm | 875kg |
| BLA-166596 | 100mm | 16mm | 320mm | 112mm | 86mm | 24mm | 1375kg |
Specifications
| SKU | 166594 |
|---|---|
| Barcode # | 9319786019733 |
| Brand | BLA |
| Shipping Weight | 1.7000kg |

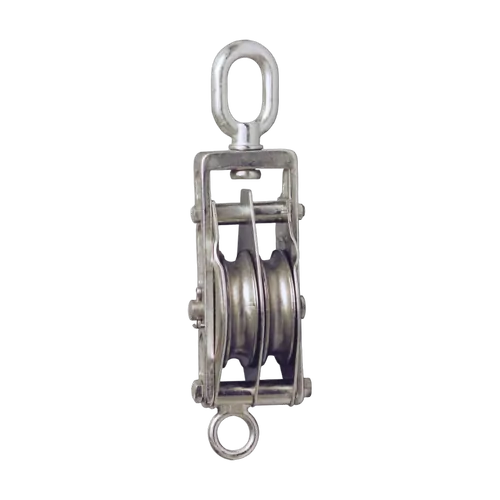

BLA S/Steel Double Trawl Block Becket/Swivel 14 x 75mm Nylon
SKU: 166594
More infoMake 4 payments of $52.00 over 8 weeks and get it now!
Calculate Shipping
Description
Heavy duty, 304 grade stainless steel trawl blocks with double, brass bushed stainless sheaves and swivelling bale head. Pressed cheeks. Heavy duty cast load straps.
Through bolted construction allows the block to be dismantled for installation and servicing. Welded ring becket.
| Part Number | Sheave Diameter | Maximum Rope Diameter | Length (A) | Width (B) | Sheave Width (C) | Swivel Diameter (D) | MWL |
|---|---|---|---|---|---|---|---|
| BLA-166594 | 75mm | 14mm | 255mm | 83mm | 74mm | 24mm | 875kg |
| BLA-166596 | 100mm | 16mm | 320mm | 112mm | 86mm | 24mm | 1375kg |
Specifications
| SKU | 166594 |
|---|---|
| Barcode # | 9319786019733 |
| Brand | BLA |
| Shipping Weight | 1.7000kg |
