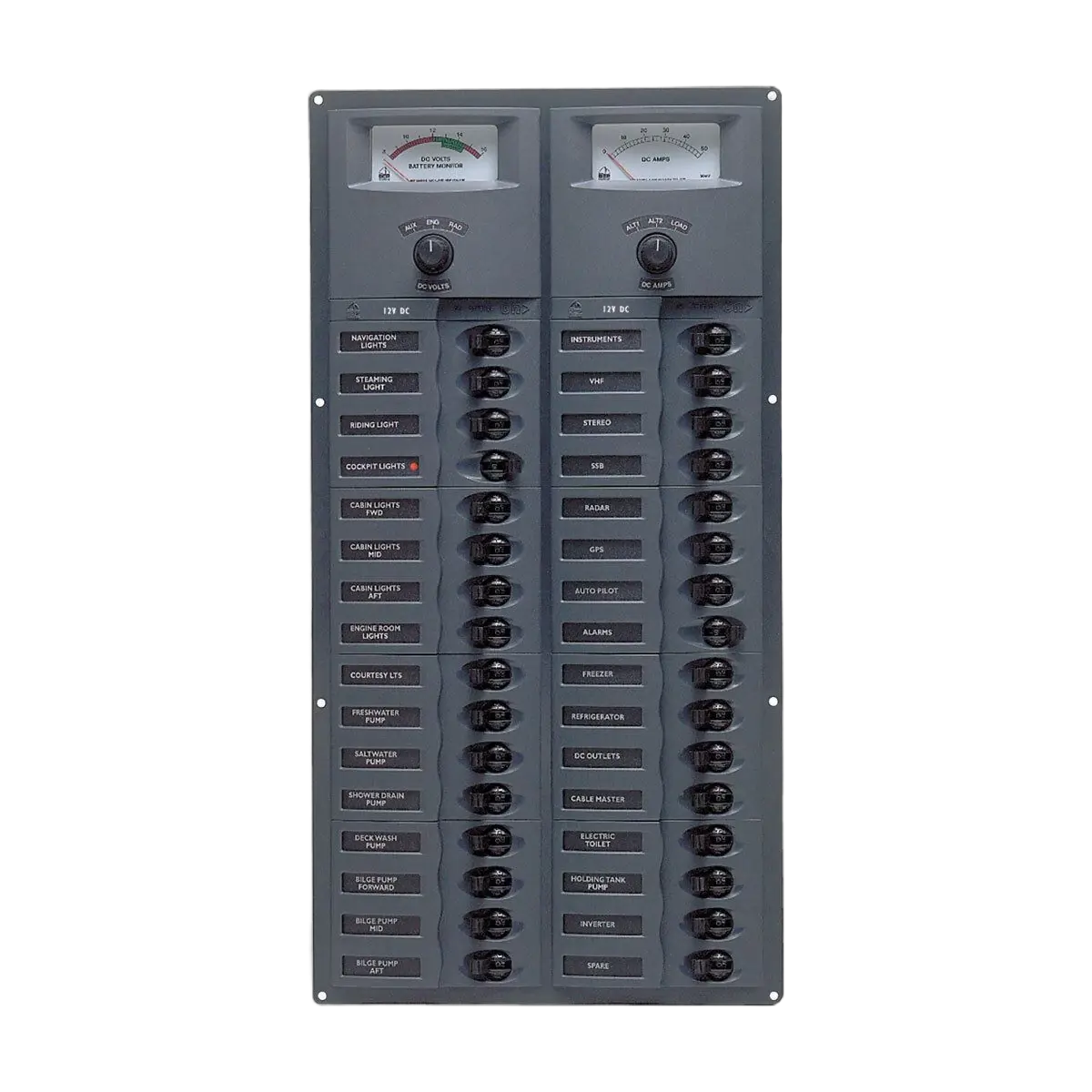

Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally.

IEG magnetic circuit breakers provide reliable circuit protection and accurate circuit control for equipment. Designed using the latest in sensitive hydraulic magnetic technology. They are ideal for marine applications. Temperature differences which affect fuses and other thermal devices are not a concern. One important feature of this breaker line is a ‘trip free’ action, which means the circuit will trip in the presence of an overload even though the handle is held in the ON position. The delay mechanism senses the fault and the contacts open.

Contour Series panels also available in; 4 Switch Vertical Panel, 8 Switch Vertical Panel, 12 Switch Square Panel, 12 Switch Horizontal Panel, 16 Switch Vertical Panel, 20 Switch Horizontal Panel, 24 Switch Square Panel, 24 Switch Vertical Panel, 32 Switch Horizontal Panel, 32 Switch Vertical Panel, 48 Switch Square Panel.

• Analog Voltmeter panels are supplied with either 12 Volt or 24 Volt analog expanded scale meter with three (3) way selector switch to monitor multiple battery banks.
• Analog Ammeter panels supplied with one shunt, extra shunts ordered separately
• Analog Ammeter panels are supplied with 0-50 Amp scale meter and include a 50 Amp shunt. An alternative 100 Amp meter can be substituted with a corresponding 100 Amp shunt. For secondary shunts see options below.
• Cut-out size - 10 mm (3/8") inside all external edges
• Analog Ammeters and Voltmeters available in other scales
• All panels are available with either No Meter, Analog Meter or Digital Meters

Features:

• Durable black powder coated marine grade aluminium base panel
• Marine quality, magnetic, hydraulic, UL listed trip free breakers
• Backlit labels supplied
• Negative buss bar
• Red LED indication for circuits ‘on’
• Green LED back lighting for meters and labels
• Double pole configurations available for survey or additional safety
• Red systems on LED
• 12V (*24V with the addition of 24V Backlighting Upgrade Kit and 24V Voltmeter)
• ABYC standard voltage indication
• Stylish clip on contour fascia
• Label sets and buss bar supplied with panels- Includes Label Set #1, 2 & 3 (Additional labels available)
• Includes 12 Volt Analog Voltmeter and Ammeter
