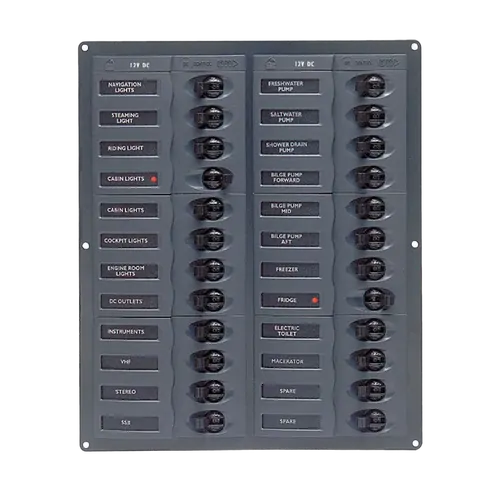

Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally.
Features
• Durable grey powder coated marine grade aluminium base panel
• Marine quality, magnetic, hydraulic, UL listed trip free breakers
• Backlit labels supplied, refer page 156
• Suitable size negative busbar supplied, refer page 183
• Red LED indication for circuits ‘on’
• Green LED back lighting for meters and labels
• Double pole configurations available for survey or additional safety
With the flexibility of the ‘Contour’ four way plastic modules, BEP can build panels to custom requirements if requested.
BLA CODE | CIRCUITS | OVERALL SIZE W X H MM | CUT OUT SIZE W X H MM | INTRUSION MM | MOUNT SCREWS GAUGE | POWER VOLT | LABEL SHEET | CIRCUIT BREAKERS 5 AMP | 10 AMP | 15 AMP | 20 AMP | 25 AMP | 30 AMP |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
113140 | 4 | 127 x 115 | 107 x 95 | 65 | 6 r/h | 45627 | 1 | 1 | 2 | 1 | - | - | - |
113142 | 8 | 127 x 200 | 107 x 180 | 65 | 6 r/h | 45627 | 1 | 2 | 2 | 3 | 1 | - | - |
113144 | 8 | 239 x 115 | 219 x 95 | 65 | 6 r/h | 45627 | 1 | 2 | 2 | 3 | 1 | - | - |
113151 | 12 | 351 x 115 | 331 x 95 | 65 | 6 r/h | 45627 | 1 | 3 | 4 | 4 | - | 1 | - |
113152 | 12 | 239 x 200 | 219 x 180 | 65 | 6 r/h | 45627 | 1 | 3 | 4 | 4 | - | 1 | - |
113153 | 12 | 127 x 285 | 107 x 265 | 65 | 6 r/h | 45627 | 1 | 3 | 4 | 4 | - | 1 | - |
113160 | 16 | 239 x 200 | 219 x 180 | 65 | 6 r/h | 45627 | 1 | 4 | 5 | 5 | 1 | 1 | - |
113175 | 24 | 239 x 370 | 219 x 331 | 65 | 6 r/h | 45627 | 1, 2 & 3 | 5 | 8 | 8 | 1 | 1 | 1 |
113176 | 24 | 351 x 200 | 331 x 180 | 65 | 6 r/h | 45627 | 1, 2 & 3 | 5 | 8 | 8 | 1 | 1 | 1 |
Drop resistors required for LEDs in 24 volt installations
113461 Drop resistor BEP 8 way suits 113142 & 113144
113462 Drop resistor BEP 12 way suits 113151, 113152 & 113153
113463 Drop resistor BEP 16 way suits 113160
113465 Drop resistor BEP 24 way suits 113175 & 113176
SKU | 113175 |
---|---|
Barcode # | 870216002217 |
Brand | BEP |
Shipping Weight | 2.9000kg |
Shipping Width | 0.280m |
Shipping Height | 0.130m |
Shipping Length | 0.420m |
