Features / Specifications

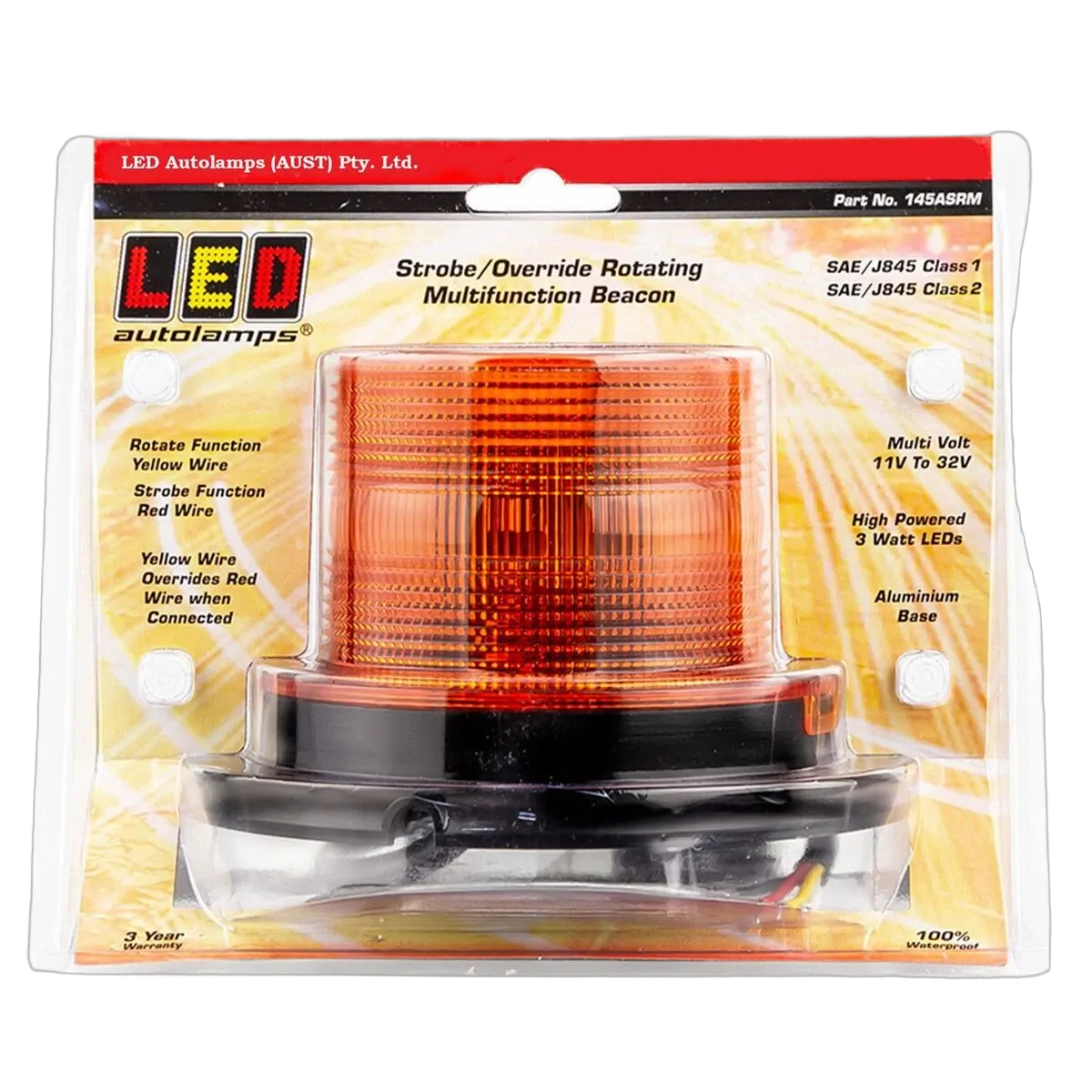

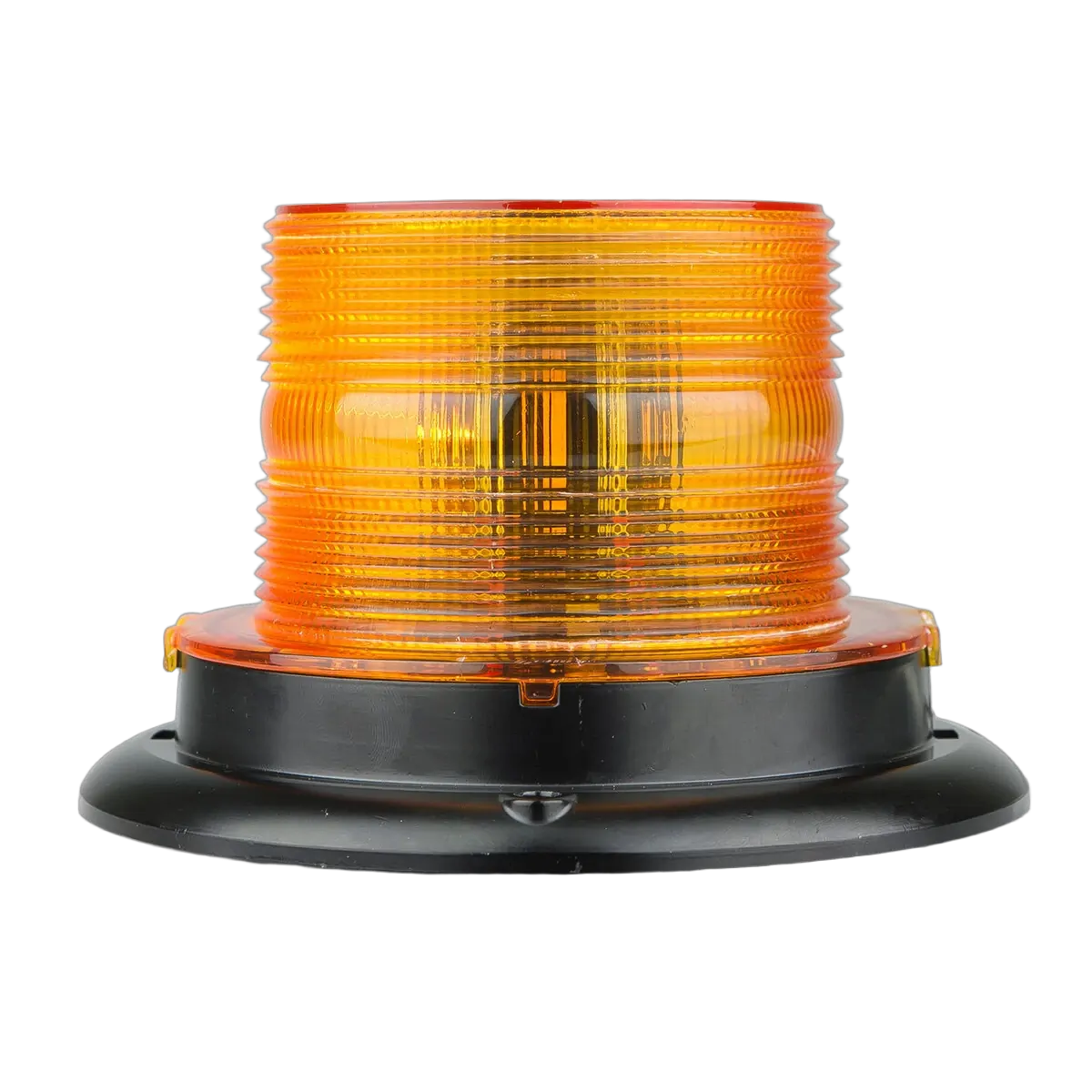

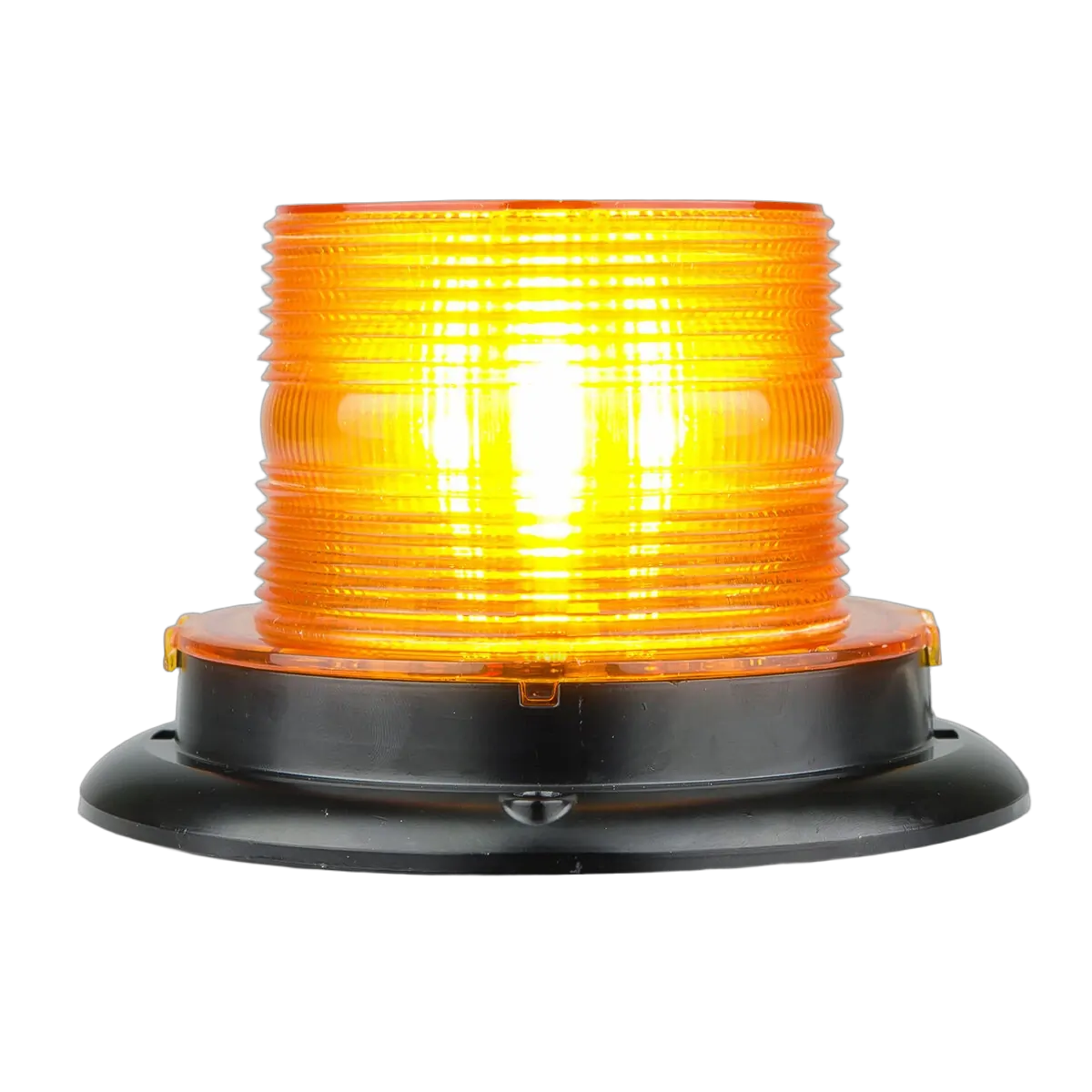

• Strobe/Override Rotating
  Multifunction Beacon
• Designed for the Mining Industry
• Meets NHVR oversize overmass (OSOM)
  warning device requirements.
• Rotate - SAE/J845 Class 1
• Strobe - SAE/J845 Class 2
• High Powered 3 Watt SMD LEDs
• Safer In-cab Override Function
• Synchronise Multiple Units
• Voltage Range 11V-32V
• 144mm round x 91mm
• 3 Year Warranty

Download Data Sheet

Fitting Instructions

Fixed mount - Run cable through hole in mounting surface, fix beacon using bolts supplied. Download the Data Sheet for detailed wiring instructions.

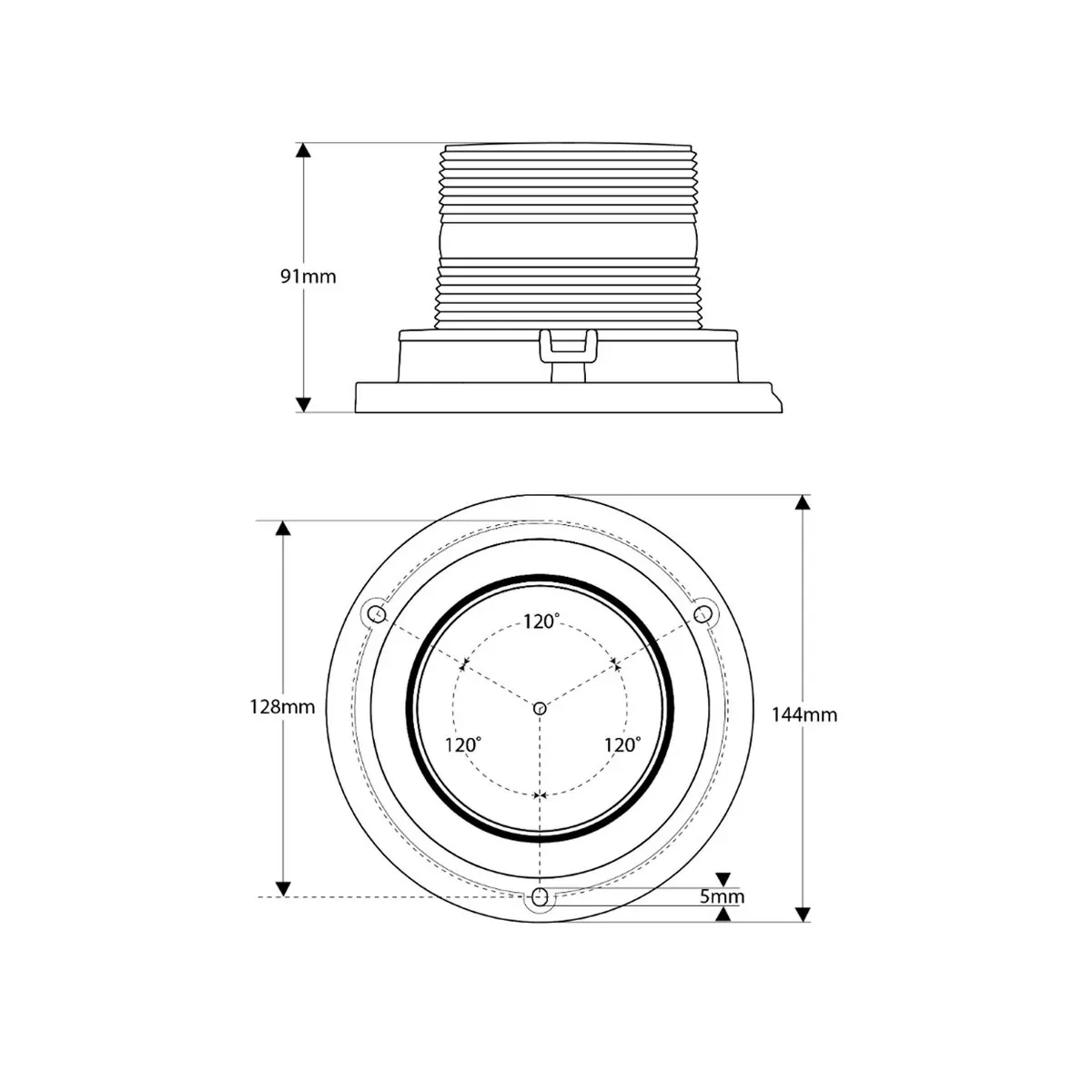

Technical Drawings
