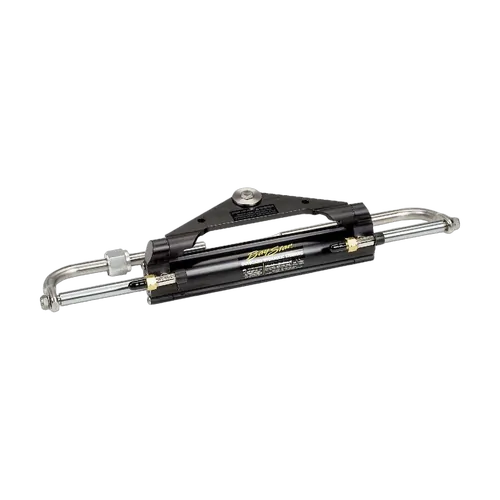

Baystar Side Mount Cylinder – SeaStar Solutions Part No. HC4670H
This cylinder is suitable for installation in shallow splashwells and use on engines rated to 150HP.
The simplest of hydraulic installations
• One common cylinder fits most engines
• Convenient tilt tube mounting as per ABYC/NMMA/BIA standards
• Anodised alloy cylinder for reduced friction and longer seal life
• Chromed stainless steel push rod for extended seal life
• Patented No Feedback™ steering lock valves
• 5.9 turns lock to lock
• Unbalanced Cylinder
2 year Warranty
Cylinder Model: Side Mount R/S / Side Mount P/S
]Bore: 1.25″ / 31.7mm
Shaft Dia.: .50″ / 12.7mm
Stroke: 8″ / 203mm
Volume: 135.2cc / 8.3in3 / 160.8″ / 9.8mm
Torque: N/A
BayStar-Outboard-Side-Slashwell-Mount-HC4670- Installation Guide
N.B. Unbalanced cylinders have unequal wheel turns. When the helm is turned one turn, a certain volume of fluid is pumped into the cylinder. On one side of an unbalanced cylinder piston is the push rod, which reduces the effective cylinder volume. The cylinder area on the other side of the piston has no push rod. The rod side of the piston will move faster per turn of the wheel because less space is available for fluid than on the side with no rod. Always bleed unbalanced cylinders fully retracted.
This listing is for the cylinder only.
Available in a kit.
Cylinder Model: Side Mount R/S / Side Mount P/S Bore: 1.25" / 31.7mm Shaft Dia.: .50" / 12.7mm Stroke: 8" / 203mm Volume: 135.2cc / 8.3in3 / 160.8" / 9.8mm Torque: N/A
SKU | 291072 |
---|---|
Barcode # | 731957902696 |
Brand | BayStar |
Shipping Weight | 5.0000kg |
